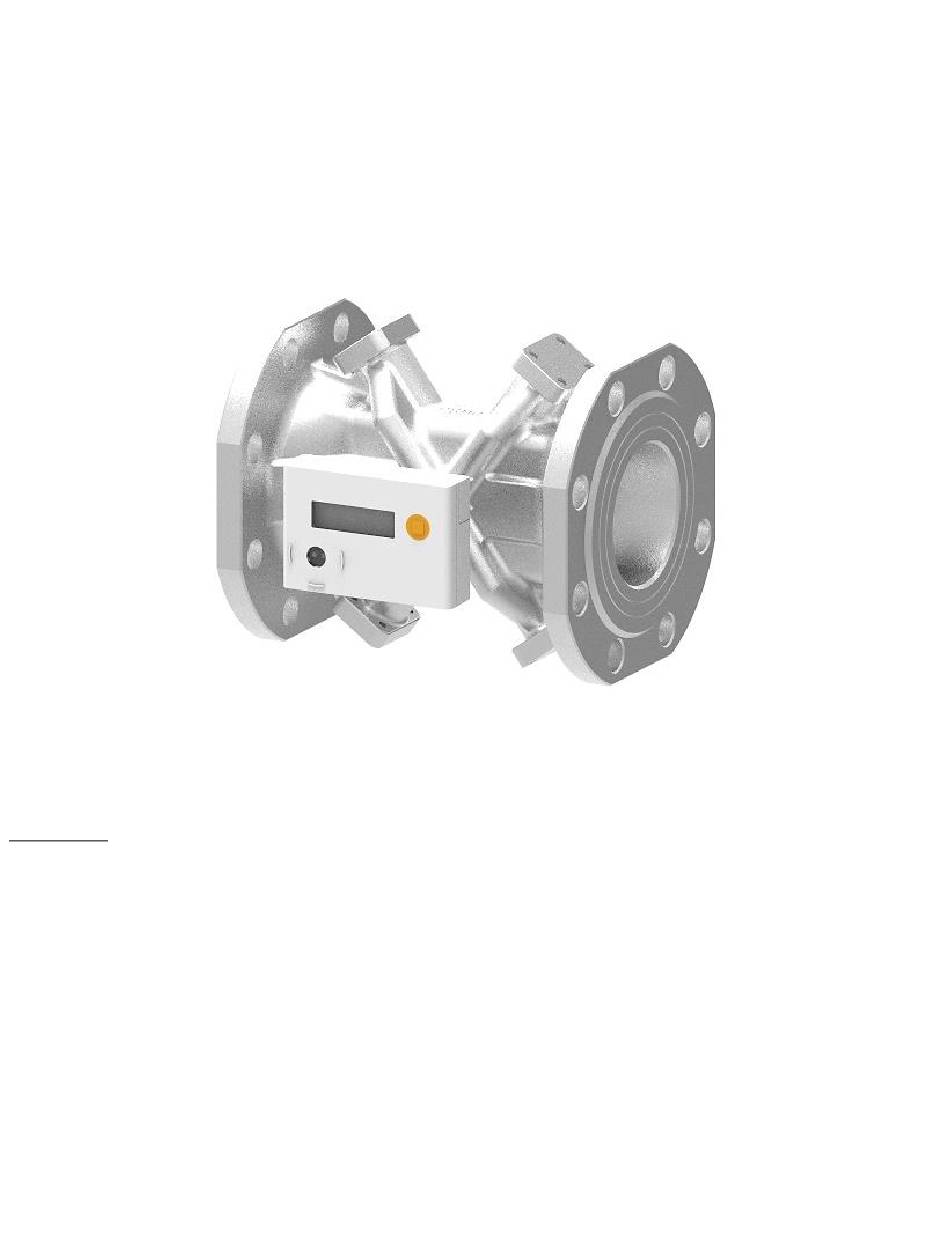

HYDRASONIC S8 FLANGED
ULTRASONIC HEATING/COOLING METER
Attention:
• Installation should only be carried out by qualified, trained personnel
• Violation and removal of the manufacturer's seals is not allowed, otherwise the warranties are void
• Welding on pipes near the meter is prohibited. The device must be dismounted before welding
• Eliminate the possibility of flooding the electronic unit
• The ambient temperature should be between 0 °C and 55 °C
User Manual
Advertisement
Table of Contents
Related Manuals for Kimans HYDRASONIC S8
Summary of Contents for Kimans HYDRASONIC S8
- Page 1 HYDRASONIC S8 FLANGED ULTRASONIC HEATING/COOLING METER Attention: • Installation should only be carried out by qualified, trained personnel • Violation and removal of the manufacturer's seals is not allowed, otherwise the warranties are void • Welding on pipes near the meter is prohibited. The device must be dismounted before welding •...
-
Page 2: Table Of Contents
Table of content General Information ..............................3 1.1 Application and Function ............................3 1.2 Contents of the package ............................3 1.3 Standards .................................. 3 Installation procedure ............................... 4 2.1 Installation of the meter ............................4 2.2 Installation angle ..............................5 2.3 Straight inlet ................................ -
Page 3: General Information
1. General Information 1.1 Application and Function This Hydrasonic S8 is designed for the measurement of consumed energy in a closed heating, cooling or heating /cooling system. 1.2 Contents of the package • Heat meter or heat/cooling meter, consisting of a calculator, a flow sensor and two temperatures sensors, all permanently connected to each other •... -
Page 4: Installation Procedure
• The heat meter has a lithium-metal-battery. Do not open the batteries, do not bring the batteries into contact with water or expose them to temperatures above 80 °C. Do not charge them or short-circuit them. • Instruments which have been replaced or exchanged must be disposed of according to relevant environmental regulations. -
Page 5: Installation Angle
2.3 Straight inlet Kimans flanged meter requires neither straight inlet nor outlet in order to fulfill the measuring instruments directive (MID) 2014/32/EU and EN 1434:2015. Only in case of heavy flow disturbances before the meter will a straight inlet section be necessary. We recommend following the guidelines in CEN CR 13582. -
Page 6: Installation Of Temperature Sensors
2.4 Installation of temperature sensors • The meter is operated with separately approved pairs of Pt 1000 temperature sensors. • Ensure that the approved temperature range of the temperature sensors is the same as the temperature range of the calculator. •... -
Page 7: Installation Procedure
3. Installation procedure The meter can be put in operation once it has been installed. Proceed as follows: • After the installation of the BTU meter, open the isolation valves, and allow the water to pass inside the meter. • Check the system for leaks. •... -
Page 8: Display Menu
5. Display Menu The calculator has a liquid crystal display with 8 digits and special characters. The values that can be shown are divided into five display loops. All data is retrieved using the push-button next to the display. At the start you are automatically in the main loop (1st level). By pressing the push-button longer than 4 seconds you change to the next display loop. -
Page 9: Overall Menu Structure
5.1 Overall Menu Structure... -
Page 10: Main Display
5.2 Main Display Short press < 3 sec Long press > 3 sec... -
Page 11: Test Display
5.3 Test Display... -
Page 12: Information Display
5.4 Information Display... -
Page 13: Error Display
5.5 Error Display... - Page 14 Kimans Inc. www.kimans.com...
