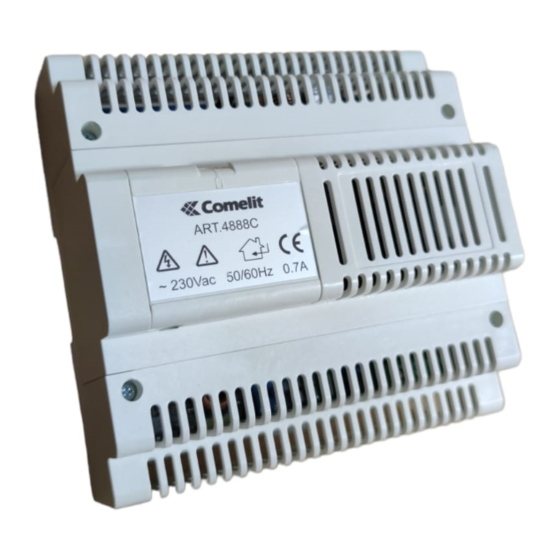

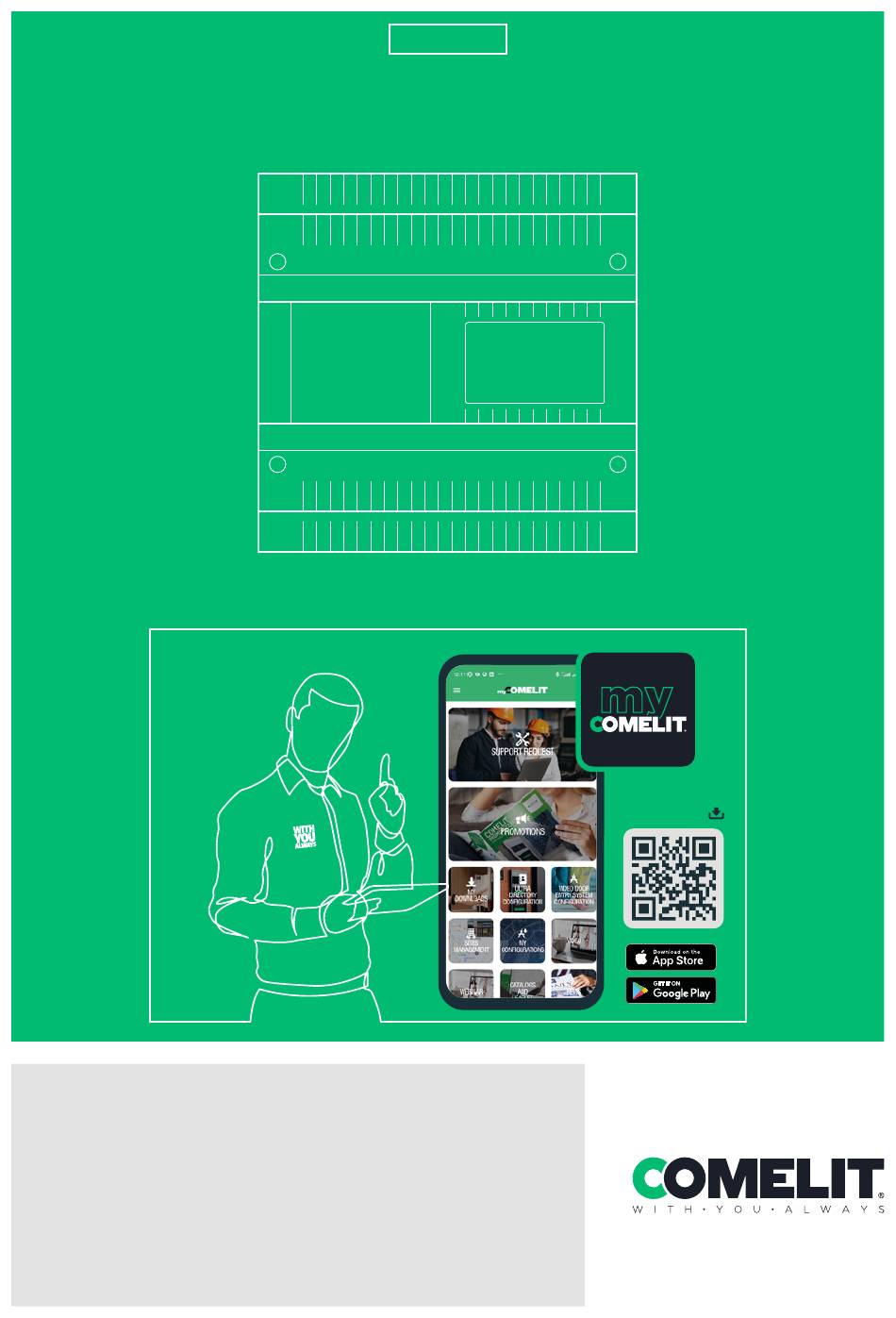

- Page 1 TECHNICAL MANUAL MYCOMELIT: THE APP FOR PROFESSIONALS MYCOMELIT, L'APP PER IL PROFESSIONISTA FREE DOWNLOAD Simplebus 2 Mixer/Power Supply Unit Art. 4888C...
-
Page 2: Table Of Contents
• any purpose other than the intended use, • non-observance of the indications and warnings contained in this Manual / Instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. -
Page 3: Specifications
1) through the same ducting as sections exiting the mixer Art. 4888C (section SIMPLEBUS 2), always use separate sheathed cables. Height (mm) • If it is necessary to run (even for short distances) sections of cable exiting the mixer Art. 4888C (section SIMPLEBUS 2) Width (mm) through the same ducting, always use separate sheathed cables. Depth (mm) •... -
Page 4: Connections
System performance and layouts VIDEO ENTRY SYSTEM RISERS 6601W 6601W/BM (MAX 3) 1216 6801W 6701W 6721W 6801W/BM 6701W/8 1214/2C 4888C 6701W/BM 6721W/BM +6710 +6710 ~230V 4888C UT1020 18VDC OUTPUT FOR POWER SUPPLY EXTERNAL UNIT Art.1224A / 1424 / 1256 Programming... -
Page 5: Operating Distances
1216 1214/2C 1214/2C 6741W 6721W 6721W 6721W 6741W 6741W/BM + 6710 Art. 6701W-6701W/8 4888C 1214/2C Art. 6721W UT1020 1595 1214/2C Compatible secondary door entry monitors: 6701W (/BM), 6701W/8, 6721W (/BM), 6801W (/BM), 6601W (/BM) Art. 6801W Operating distances 1214/2C A MAX... -
Page 6: Apartment Block Variant With 1 To 4 Risers With 2 Entrance Panels
Apartment block variant with 1 to 4 risers with 2 entrance panels VIDEO ENTRY RISER 1216 6601W/ 6601W/BM 22-28 Vdc 1224A 4888C 1214/2C ~ 230V 1 2 3 4 1 2 3 4 2738W 1595 1595 2738W/A 22-28 Vdc 1214/2C... -
Page 7: Digital Entrance Panel Variant With Number Keypad Module Art
• Simplebus 2 Audio/Video with 4888C C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m...
