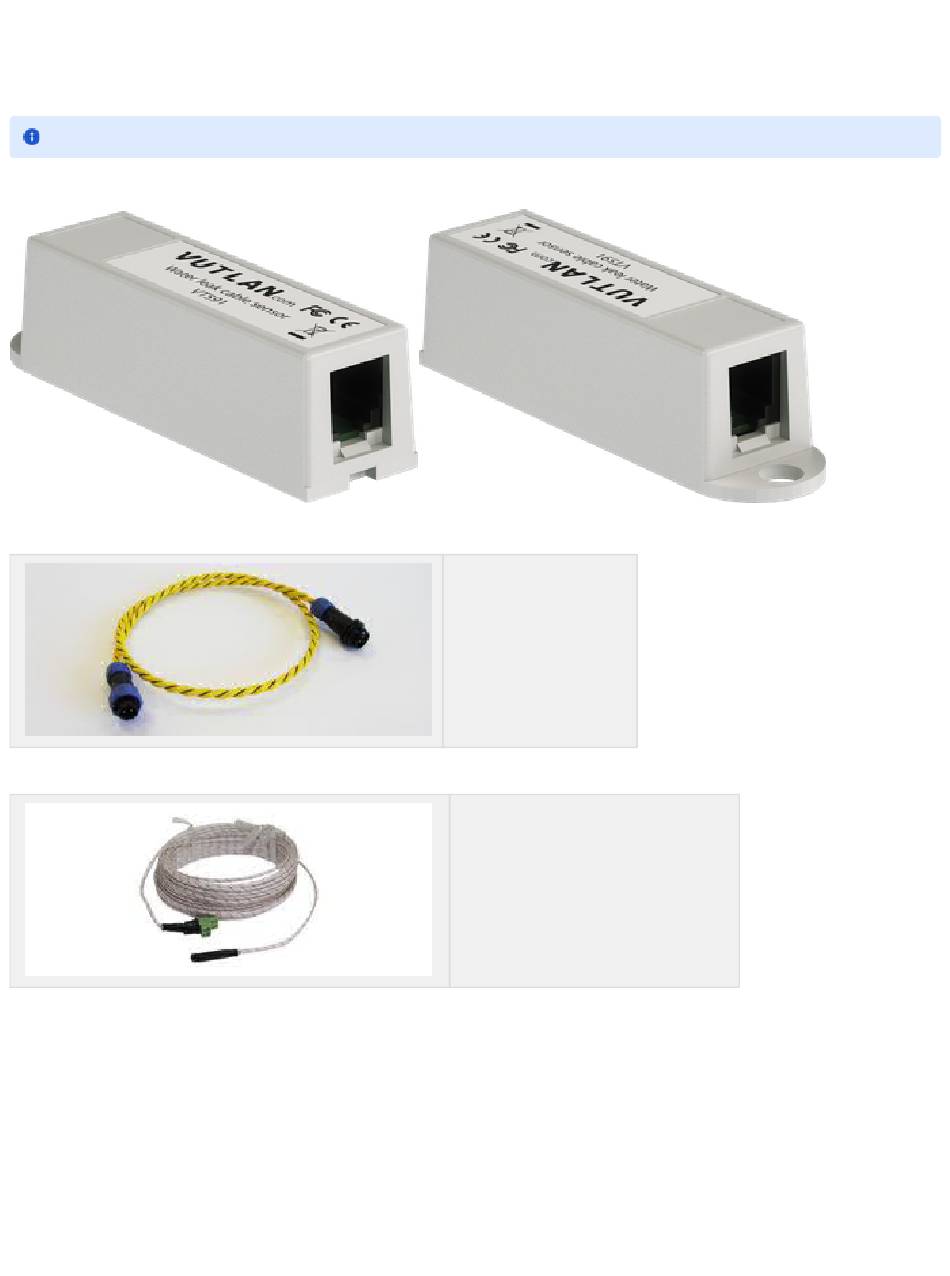

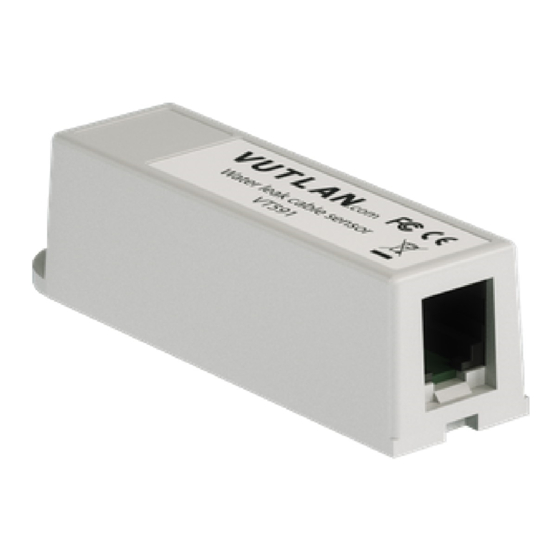

VT591 / Water leak rope sensor
Function and purpose
Notice on 6th June 2019: The product has been altered. RJ9 4P2C connected is now used instead of 2P Power Terminal.
The sensor must be used together with
or
When water is in contact with the detection cable sensor indicates the emergence of moisture. "WDC / Water detection rope"
and "WLC / Water leakage cable" are ordered separately! The whole area can be effectively monitored by placing the cable
near or along with possible flood sources.
Dimensions
Usage examples
WLC / Water leak cable
(recommended)
(ordered separately)
WDC / Water detection rope
(ordered separately)
Advertisement
Related Manuals for Vutlan VT591
Summary of Contents for Vutlan VT591
- Page 1 VT591 / Water leak rope sensor Function and purpose Notice on 6th June 2019: The product has been altered. RJ9 4P2C connected is now used instead of 2P Power Terminal. The sensor must be used together with WLC / Water leak cable...
- Page 3 Technical specifications VT591 / Water leak sensor specifications Dimensions 60×18×18 mm Weight 60 g Input 2 wire (WDC cable) Output RJ11 / RJ12 (6p4c) Operating temperature -10 °C to +80 °C Operating humidity 5% to 95% (Non-Condensing) Mounting Mounting bracket included.
- Page 4 0° - 100 % Max. cable length 225 m Inputs x2 wires Package content VT591, WDC and WLC are sold separately. VT591 package includes: WDC / Water detection rope package includes: WLC / Water leak cable package includes: VT591 package includes: Package content...
- Page 5 Bolts М3.5x10 - 2 pcs M3.5 nuts - 2 pcs Sticker Flood adapter cable WDC / Water detection rope package includes: Package content Description...
- Page 6 Package content Description WDC6 or WDC10 or WDC17 or WDC25 or WDC50 leakage cable Sticky hold-down clips for each 2 m of the rope. WLC / Water leak cable package includes: Package content Description WLC10 or WLC15 or WLC25 or WLC50 leakage cable Sticky hold-down clips for each 2 m of the rope.
- Page 7 The sensor is ready to use. Connecting WLC / Water leak cable Connect the "VT591 / Water leak sensor" to the monitoring unit. The connection is plug-an-play. Connect "VTC / Terminal cable" to the VT591 sensor. Connect "WLC / Water detection cable" to "VTC / Terminal cable".
-
Page 8: Analog Sensors Connection
Analog sensor connection Analog sensors connection Connect the analog sensor by a supplied RJ-11 (6P4C) cable to any analog port "A1 .. A8" or "Sensor" port. The determination of the sensor type and connection will occur automatically. If strong electromagnetic interference is present, we recommend using 3-pair cable CAN FTP for sensor connection! 6P4C RJ11 cable wiring / pinouts... - Page 9 1- Yellow, 2- Green, 3- Red, 4 - Black Colors are true for this telephone cable. Both ends match the colors and pinouts (identical). Please refer to the RJ connectors comparison table: Daisy chain connection Some of the analog sensors can be connected in a daisy chain. Please refer to the article "Chain connection of analog sensors".
- Page 10 Please find installation examples in our article "Water leakage detection using cable sensor and spot sensor" Cable pinouts The sensor uses a standard Vutlan analog sensor cable(RJ11/RJ12 to RJ11/RJ12) for connecting to the monitoring unit. You can find further instructions at: Analog sensors connection Technical support The device does not contain any user-serviceable parts.
-
Page 11: Troubleshooting
The following table describes potential problems and their possible causes. It also describes checks you can perform or possible solutions for each. After referring to this table, if you cannot resolve the problem, contact your local Vutlan sales representative for assistance.
