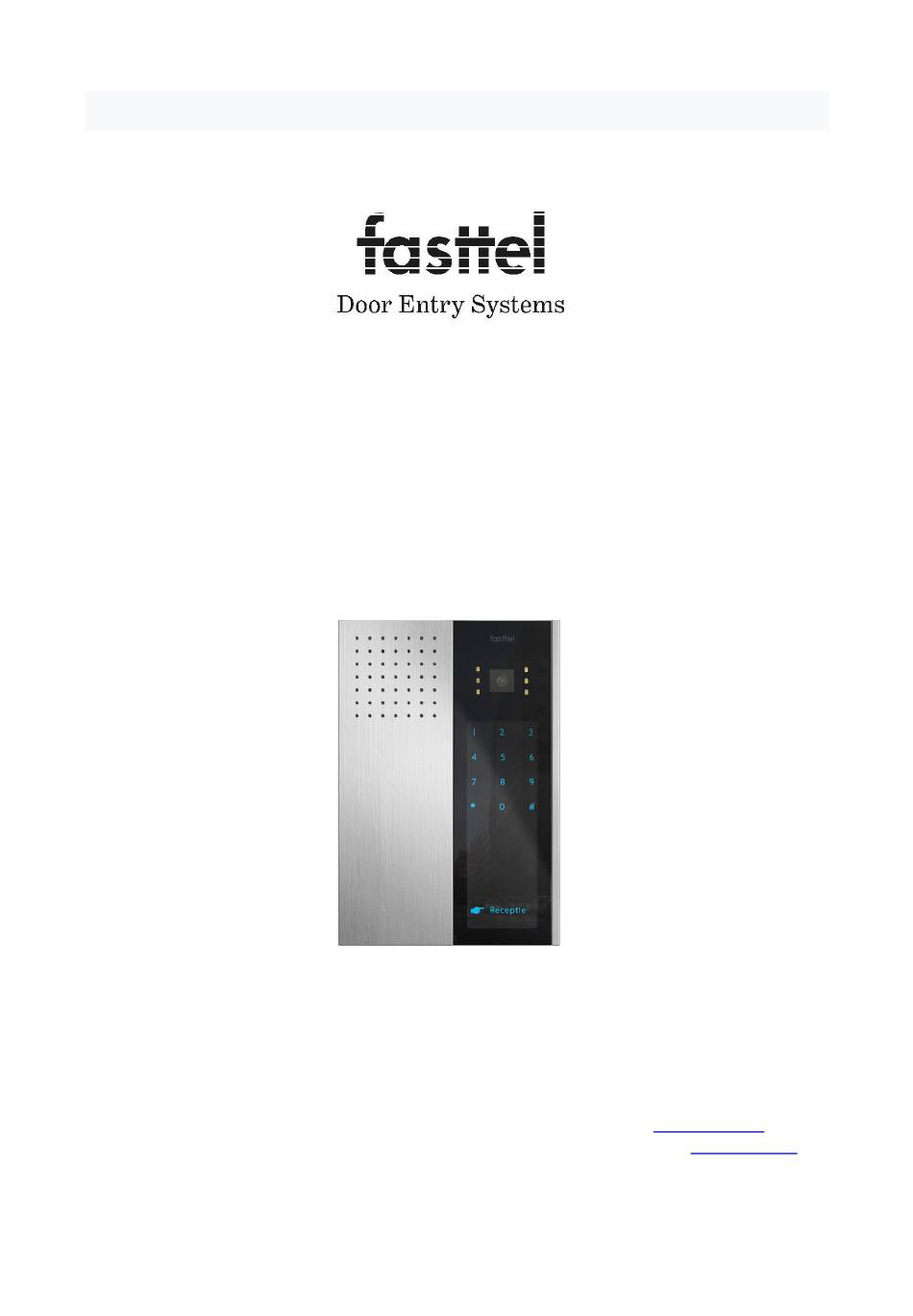

Fasttel Wizard Elegance IP Instruction Manual

Hide thumbs Also See for Wizard Elegance IP:
Table of Contents

Advertisement

Quick Links

Instruction manual
WIZARD ELEGANCE IP
(From softwareversion 1.3.1)
Fasttel reserves the right to change the content without prior notice
.
Fasttel België, Klipsenstraat 18A, 9160 Lokeren. Tel +32 (0)9 244 65 20
info@fasttel.be
Fasttel Nederland, Heiligenboom 3, 5066 CB Moergestel. Tel +31 (0)13 513 65 14
info@fasttel.nl
Editie 2.2
pg1
