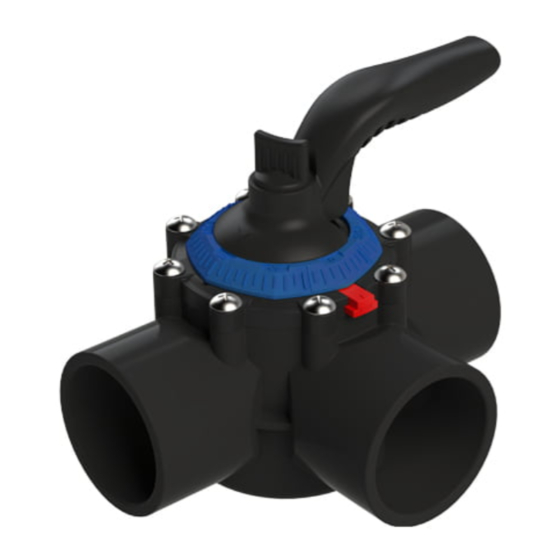

- Page 1 FLEX DIVERTER VALVE Installation and Operation manual USER MANUAL Model: FLEX Series EMVA22101140...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ..WARNINGS AND SAFETY INSTRUCTIONS 1. PRODUCT INTRODUCTION ..2. SPECIFICATIONS ..3. INSTALLATION ..3.1 PLUMBING ..3.2 FUNCTION AND APPLICATIONS ..4. OPERATION ..4.1 INLET CHANGING ..4.2 DIAL DIRECTION ..5. SPARE PART LIST .. -
Page 3: Product Introduction
The shaft can work with the main actuators in the market. When paired with the new Emaux FLEX Actuator, it gives user a reliable automation experience on valve automation control. - Page 4 Three-Way Valve (Metric) Code Model Material Connection Description (mm) (mm) (mm) (mm) (mm) ID GB50 pipe slip in OD 91600105 FLEX40-3(E) PVC/CPVC GB50 / GB63 Ø63 Ø50 GB63 coupler ID GB63 pipe slip in OD 91600107 FLEX50-3(E) PVC/CPVC GB63 / GB75 Ø75 Ø63 GB75 coupler...
-
Page 5: Installation
3. INSTALLATION 3.1 PLUMBING Knob Emaux FLEX series Diverter Valve 2” Pipe is designed for both Imperial Arrow (smaller pipe) pipes (1½”, 2” and 2½”) and metric pipes (GB50, GB63, and Dial Lock Nut GB75). Pipes slipped in are required gluing to fix and to 2½”... -
Page 6: Operation
4. OPERATION 4.1 INLET CHANGING Allowed area for the Arrow turning. User can set either port as an inlet port. The arrow on the handle indicates the diverter position and the port flow is blocked when the arrow on the handle is pointing at it. The new dial has markings from 0 to 360 degree where 270 to 90 degree range does not allow the arrow to turn to. -
Page 7: Dial Direction
4.2 DIAL DIRECTION Port 3 Port 1 Port 3 Port 1 Dial: 0 Port 2 Dial: 90 Port 2 (Standard) Port 1 Port 3 Port 1 Port 3 Dial: 180 Port 2 Dial: 270 Port 2 Dial direction (Standard) Port where water enters 1, 2, 3 (Inlet Port) Port Where Water Exits... -
Page 8: Spare Part List
5. SPARE PART LIST Valve Cover module Includes 3 M2 screws and 1 ring and cover main body. 8. Diverter module Includes 2 shaft O-ring and 1 washer Key No. Part No. Description 570349858 Knob NOTE: Item 9 (The Valve housing) is not available as a 112010170 M6x20 Screws separate part. -
Page 9: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 10 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
