emaux WTD-CB Quick Start Manual

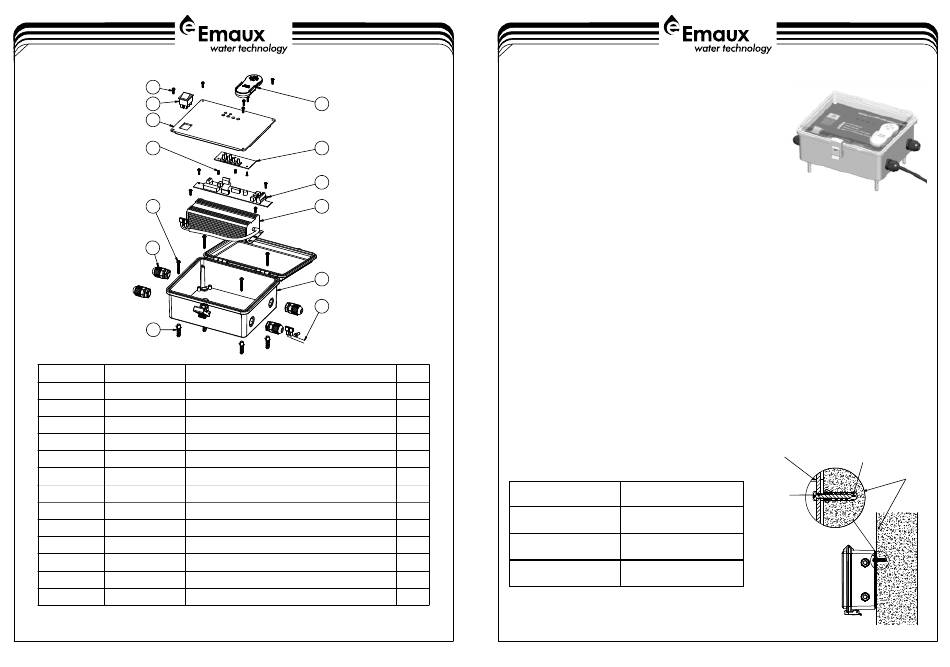

PART LIST

1
2
3
4
5
6
7
Item No Part No
1 03011007 M4×12 Screws
2 04014054 Lighted Switch
3 01360015 Panel Board
4 03011196 M3×6 Screws
5 03011023 M5×35 Screws
6 04014013 Cable Gland
7 87013019 Plastic Fitting
8 89480103 Remote control with Battery
9 04014094 Control Panel Cover
10 04014095 Control Panel
11 04012082 Transformer with Wiring Cap
12 89480101 Control Box
13 89480102 Cable with Wiring Cap
8
9
10
11
12
13
Product Description QTY
8
1
1
5
4
4
4
1
1
1
1
1
1
4

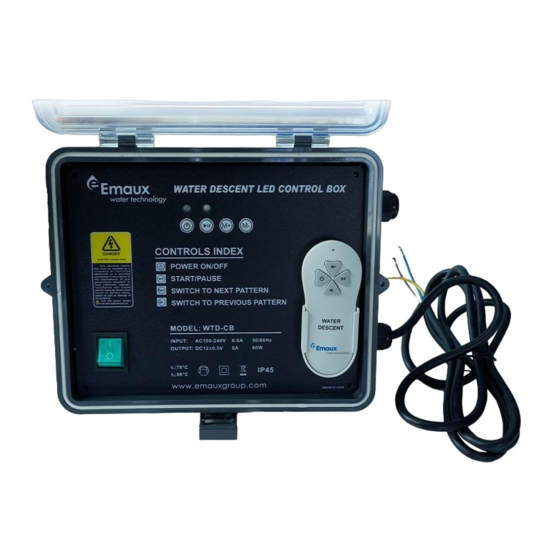

WATER DESCENT CONTROL BOX
Model: WTD-CB
Keep this manual safe for future reference

APPLICABLE FOR EMAUX WATER DESCENTS:

PB300-25(L)/PB600-25(L)/PB900-25(L)/PB1200-25(L)
PB300-150(L)/PB600-150(L)/PB900-150(L)/PB1200-150(L)
PB300-230(L)/PB600-230(L)/PB900-230(L)/PB1200-230(L)

Warning:

This electrical control box must be installed by a licensed or certified electrician or a
qualified serviceman in accordance to the requirements of your government
standard or local authorities. Improper installation will create electric hazards which
could result in serious injury, death as well as damage to the property.
CUT THE POWER BEFORE SERVICE AND MAINTAINANCE!

INSTALLATION EXPLAIN

1) Remove the Panel from the Control Box, position the box to the desired fitting
place and mark on the wall with the location of the drilled holes, then drill 4 holes
of ø8mm on the marked position and insert a plastic fitting, secure the box by
fastening 4 screws of M5x35 to the plastic fittings(See diagram below).
2) Feed the LED lights Cable through the cable gland(s) and connect the cable as
shown in the Control Box Wiring Diagram. Reassemble the panel cover and
secure the Panel by fastening 4 screws of M4x12.
3) If multiple Water Descents are being installed, the pre-set holes on the side of the
Control Box can be used.

CONTROL BOX INSTALLATION DIAGRAM

SPECIFICATIONS

Working Temperature
-20~+40?
Input
AC 100-240V; 50/60Hz
Output DC 12V, 60W
Frequency RF
433MHz
Control Box Plastic Fitting
M5×35 Self-
Tapping Screw
M5×35
1
Wall
EMCB15112505
