- Page 1 CH-23 Stand for CH-22 description buyTSI.com - 800.223.4540 READ INSTRUCTIONS THOROUGHLY BEFORE OPERATING Tire Service International, LLC Contact us for any assistance 3451 S. 40TH ST. Phoenix, AZ 85040 800.223.4540 Office: 602.437.5020 Email: sales@buytsi.com Fax: 602.437.5025 Revised: July 2022...
- Page 2 • Prepare a clean, level surface with adequate room to maneuver tires around the unit. • Fasten the CH-23 Stand to a solid surface. Use 3/8” hardware to bolt to a cement floor. (If using the optional Floor Plate, secure it firmly to floor using 3/8” hardware and bolt the units together.) •...

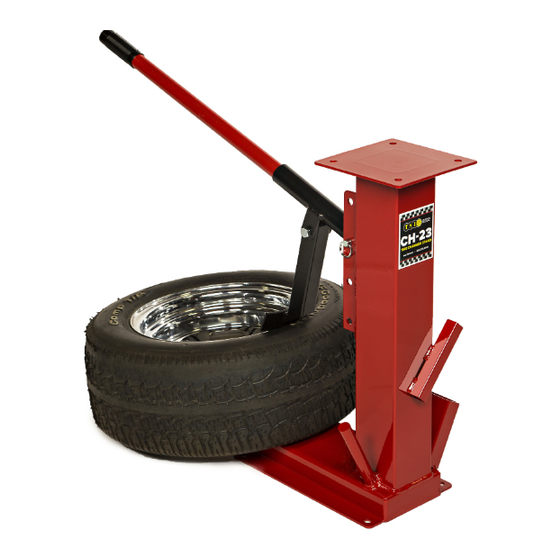

- Page 3 Floor Plate PN 6192 (sold separately ) Shown mounted to a very durable Floor Plate (an optional accessory) that bolts to the floor. The CH-23 is 12” wide x 22.5” long x 26.5” high. Shipping weight is 46 pounds. buyTSI.com 800.223.4540...
- Page 4 Store the leverage bar on tool holder when not in use. Maintenance If pivot tube becomes loose tighten the bolt holding it in place. Lightly lubricate with oil or grease. Make sure the CH-23 remains bolted down firmly while in use. buyTSI.com 800.223.4540...
- Page 5 PN 6192 The complete package is shown below which includes the CH-22 Small Tire Changer, the CH-23 Stand, and the 6192 Floor Plate. All are sold separately. This Manual Tire Changing Station makes the tire changing job easy, fast and economical. No other multi The optional CH-22 comes complete with tire changer works as well as the CH-22 ...
- Page 6 Notes buyTSI.com 800.223.4540...
- Page 7 Warranty and Return Policy Warranty & Workmanship you can depend on. With over 30 years of manufacturing experience we maintain the ability to provide competitive prices while employing and manufacturing the majority of our products in the USA. Pride in our workmanship and standing behind each and every product is not just our claim but our uncompromising responsibility.
