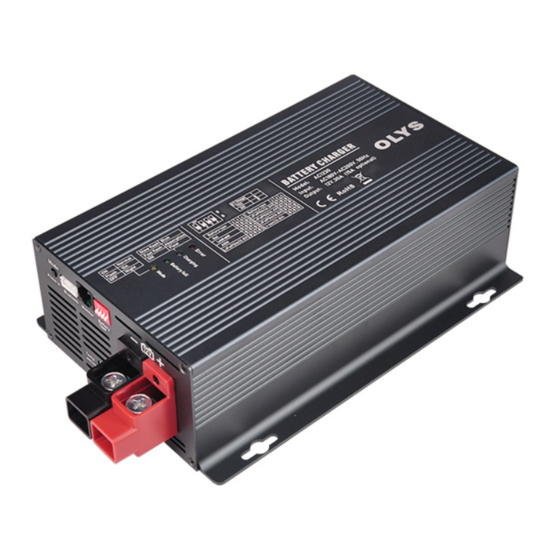

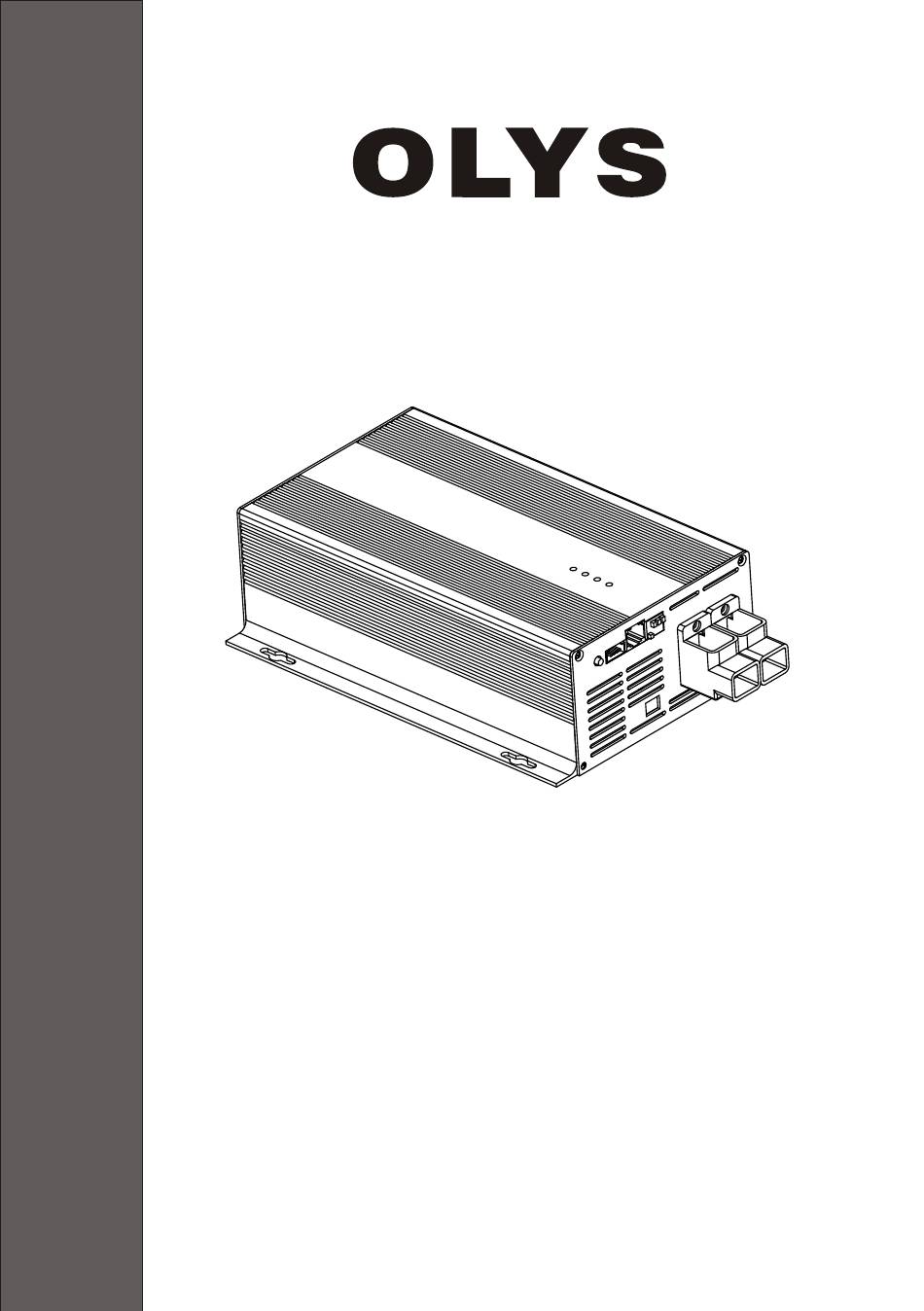

- Page 1 Smart Battery Charger Model：AC1230PRO|12V,30A AC2415PRO|24V,15A AC4810PRO|48V,10A...
-
Page 2: Safety Instructions
1 . Safety instructions CAUTION: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS • Ensure that the area around the battery and charger is well ventilated. • do not cover or place anything on the top of the charger. • do not place the charger on top of the battery. •... - Page 3 2 . Function 2.1. 4-stage charging mode pre charging, constant current charging(Bulk), constant voltage charging(ABS) and floating charging 2.2. Temperature compensation Temperature compensation charging voltage, automatic compensation according to ambient temperature; This ensures that the battery is charged at the optimum charging voltage,Regardless of the climate, there is no need to manually adjust the settings.
-
Page 4: Connection Diagram
Connection diagram Monitor（MT-2) （Optional） Bluetooth Dongle （Optional) Battery selection Mode button Fuse Temperature sensor ON/FF AC Fuse AC input... - Page 5 4 . Setting 4.1. Battery selection The DIPswitch numbers 2, 3 and 4 are used to select the battery type. Refer to the following table.It is recommended to select the battery before charging, if the battery type is changed during charging, the charging will stop for a few seconds, and then recharge according to the new battery parameters Battery type 4pin DIP...
-
Page 6: Led Indicator Status
6 . LE D Indicator Status "Mode" :Yellow &Green double color lamp Normal Yellow LED ON Night Yellow LED OFF Low current Yellow LED Flash DC power supply Green LED ON "Battery Full" :Green Battery Full Battery not fully charged "Charging"... -
Page 7: Charging Parameters
7 . Charging parameters Battery type Float Absorption 14.3V 13.8V 14.4V 13.5V Lead-acid(14.4V) AGM(14.7V) 14.7V 13.5V 13.9V 13.8V LiFePO4(13.9V) LiFePO4(14.2V) 14.2V 13.8V LiFePO4(14.4V) 14.4V 13.8V LiFePO4(14.6V) 14.6V 13.8V 12.6V 12.5V Lithium-ion(12.6V) Note: 24V charger, value* 2, 48V charger, value*4 8 . Optional accessories 8.1 Temperature sensor Specification: NTC 10K （RTS) - Page 8 9 . APP Operating Instructions 9 . 1. Bluetooth module BT10 (optional) Optional parts need to be purchased separately 9 . 2. Download APP Search and download "ChargeConnect" in Google play Store or Apple Store, Or scan QR code to download ChargerConnect andriod 9 .
-
Page 9: 10.Technical Specifications
10.Technical specifications AC1230 Pro AC2415 Pro AC4810 Pro Model Input voltage and 180V-260VAC|50HZ frequency range Efficiency >90% Battery voltage Max.output current- Normal mode Max.output current- 7.5A low current mode Max.output current- Night mode(quiet mode) Max battery capacity 150AH 100AH 300AH (recommended) Min battery capacity 50AH...
