Summary of Contents for OLYS AC1230PRO

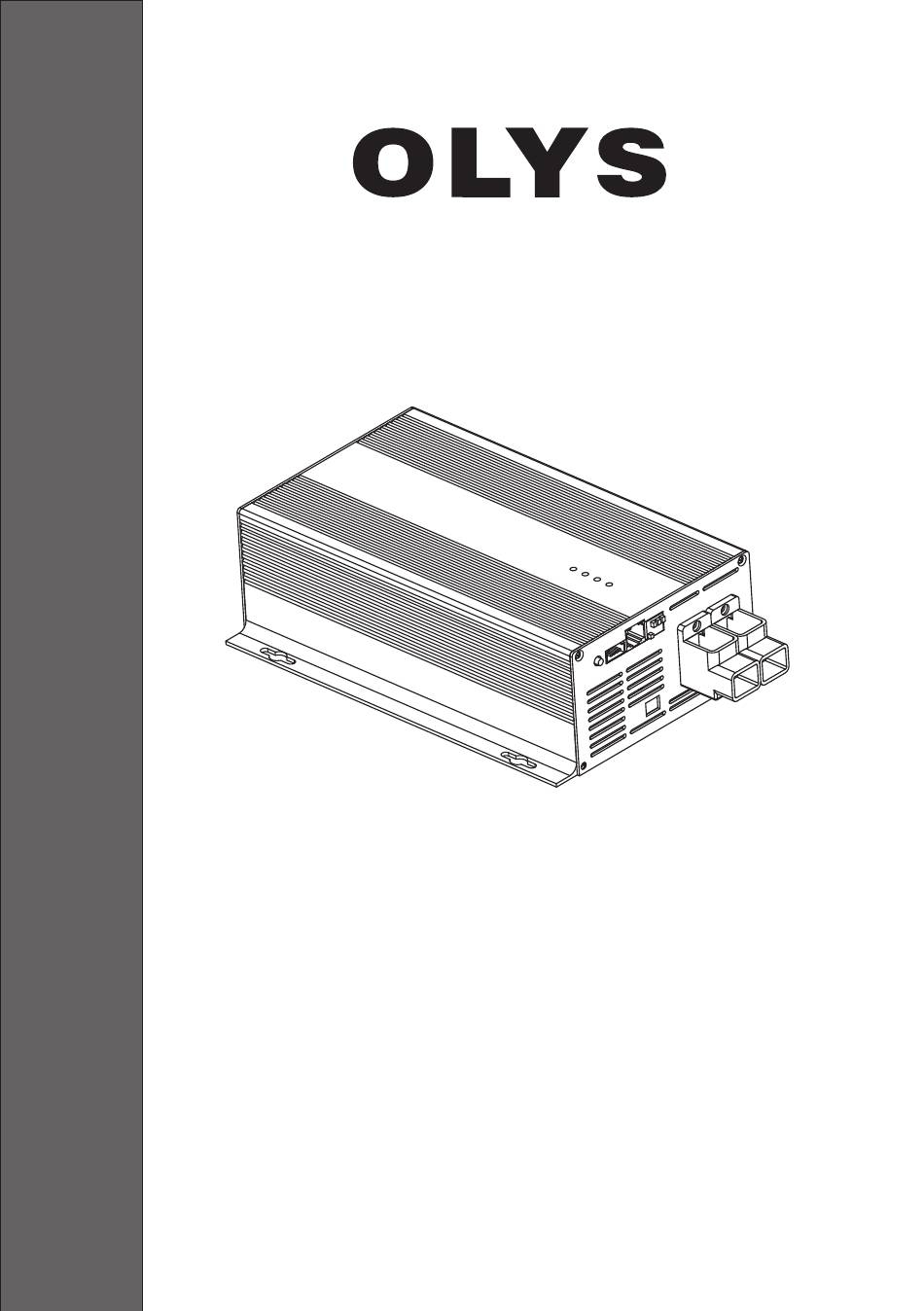

- Page 1 Smart Battery Charger Model：AC1230PRO|12V,30A AC2415PRO|24V,15A...
-
Page 2: Safety Instructions
1 . Safety instructions CAUTION: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS • Ensure that the area around the battery and charger is well ventilated. • do not cover or place anything on the top of the charger. • do not place the charger on top of the battery. •... - Page 3 1 . Quick start guide 1. Connect the charger to the battery with a DC cable. Make sure the cable is firmly connectedSolid, the cable diameter is recommended to be more than 6mm Note: connect the charger terminal first, and then connect the battery Select battery type and 0 ℃...
- Page 4 3 . Function 3 . 1. Buletooth+ APP( optional) Connected to the Bluetooth module BT10, Download app "chargerconnect", The mobile phone can display charging parameters and fault information I n real time 3 . 2. 4- stage charging mode pre charging, constant current charging(ABS), constant voltage charging(Bulk) and floating charging 3 .
-
Page 5: Connection Diagram
Connection diagram Monitor（MT-2) （Optional） Bluetooth Dongle （Optional) Battery selection Mode button Fuse Temperature sensor ON/FF AC Fuse AC input... - Page 6 The three modes will change cyclically. If there is no other operation within 5S, the mode will take effect. The charger will recharge according to the new mode Normal： Rated current Low current： 50% rated current No fan mode，6.5A(AC1230PRO), 5A(AC2415PRO) Night： "Mode"1S "Mode"1S Normal Night...
-
Page 7: Led Indicator Status
6 . LE D Indicator Status "Mode" :Yellow Normal Low current Flash Night "Battery Full" :Green Battery Full Battery not fully charged "Charging" : Blue No charging or charging timeout Constant current charging(ABS) Slow flash（1time/2S） Constant voltage charging(BULK) Fast flash（1time/1S） Float charging "Error"... -
Page 8: Charging Parameters
7 . Charging parameters Battery type Float Absorption 14.3V 13.8V 14.4V 13.5V Lead-acid(14.4V) AGM(14.7V) 14.7V 13.5V 13.9V 13.8V LiFePO4(13.9V) LiFePO4(14.2V) 14.2V 13.8V LiFePO4(14.4V) 14.4V 13.8V LiFePO4(14.6V) 14.6V 13.8V 12.6V 12.5V Lithium-ion(12.6V) Note: 24V charger, multiply all parameters by 2 8 . Optional accessories 8.1 Temperature sensor Specification: NTC 10K （RTS) -
Page 9: Technical Specifications
2 . Technical specifications Model AC1230 Pro AC2415 Pro Input voltage and frequency range 180V-260VAC|50HZ >90% Efficiency Battery voltage Max.output current-Normal mode 7.5A Max.output current-low current mode Max.output current-Night mode(quiet mode) 150AH 300AH Max battery capacity (recommended) 50AH 100AH Min battery capacity (recommended) 18mV/℃...
