ERA TOUCHKEY Fitting Instructions

Smarter handle
Hide thumbs Also See for TOUCHKEY:

Advertisement

Quick Links

Smarter Handle
TECH HELPLINE
0345 646 1487

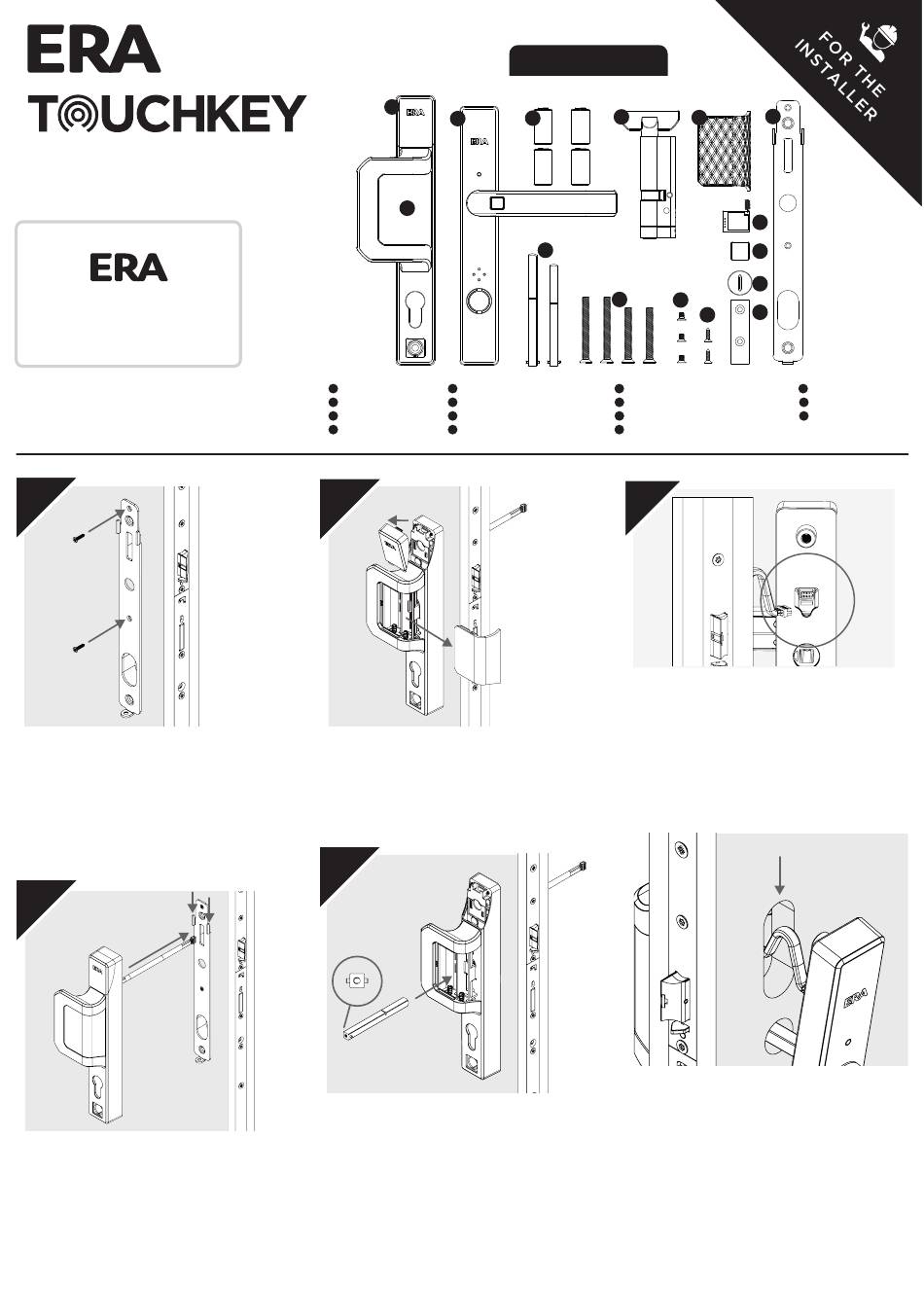

1.
Fit the handle mounting bracket (remove from
the handle box and locate the relevant screws)
onto the internal face of the door, using two
fixing screws (provided) in the highlighted holes.
Please note: this step may have been
completed by the door manufacturer.
2.
Select the internal half of the handle (with
the fixed pad) and feed the cable from the
handle, through the rectangular slot in the
mounting plate.
Once the cable is securely through, slot the
handle onto the mounting bracket using the
2 legs.
1
3
2
CYLINDER (SUPPLIED SEPERATLEY)
INTERNAL HANDLE
1
5
OPT. QUILTED BATTERY COVER
BATTERY COVER
2
6
EXTERNAL HANDLE
MOUNTING PLATE
3
7
2 X SPINDLES
4 X CR123A BATTERIES
4
8
3.
Remove the battery cover on the internal
handle, with a push in and slide motion.
Then, remove the antenna cap by pushing
gently downwards from the top, and then
pulling towards you.
4.
Select the appropriate spindle (included)
required for the door size. The 95mm spindle is
suitable for 44 – 48mm thick door slabs and
the 105mm spindle for 54 – 56mm thick
door slabs.
Next, insert the spindle through the exposed
spindle hole (in the battery compartment)
ensuring that the pin is at the back and that
the spindle is fully pushed in.
WHAT'S IN THE BOX
5
4
6
8
9
10
M6 BOLTS (2 X 52MM AND 2 X 62MM)
9
3 X M4 7MM SCREWS
10
MOUNTING PLATE FIXING SCREWS
11
TOUCHKEY COMMUNICATION MODULE
12
5.
Select the external half of the handle (lever)
and carefully connect the two handles together
using the cable from step 2. Please take care to
avoid bending any pins and ensure that the
visible red wires are at the top and the black
wires are at the bottom and that the cable is
fully pushed into the connector port.
Once the cable is connected, you can then
push the external handle onto the spindle
whilst carefully tucking the cable into the
pre-routed slot.
Please note, we recommend tucking the cable
as shown in the image.
7
12
13
14
15
11
SCREW COVER CAP
13
CYLINDER COVER CAP
14
SPINDLE PLATE
15
V1
