Mackie Monitor Series MSW8 Specifications

MONITOR Series
The Monitor MSW8 subwoofer was expressly
designed to complement the Monitor MR8. Alter-
nate satellite speakers, differing from the MR8 in
sensitivity and/or impedance, may be used with
the MSW8, by making use of a switch located on
the terminal plate. The switch bypasses the internal
crossover, allowing bi-amplification.
The MSW8 will handle 300W (IEC) continuous
power, producing 123dB SPL (1m) in a 35Hz–125Hz
bandpass.
Its 12" driver was exclusively created for
subwoofer applications, and features a reinforced
Kapton support for the 3" voice coil. All adhesives
used can withstand operating temperatures up to
300°C. The spider is airtight and acts as a pump to
air cool the magnet assembly. Additionally, a finned
heat sink is present on the back of the basket.

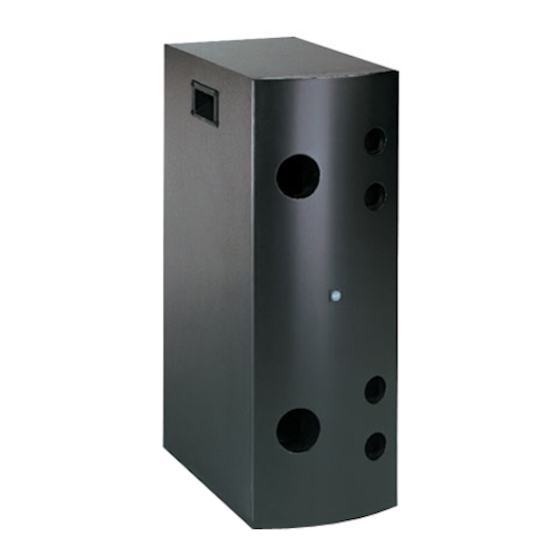

The rectangular cabinet utilizes a dual load
reflex configuration to maximize the subwoofer's
performance while keeping its size to a minimum.
It is constructed with extremely rigid, high density
particle board to reduce cabinet resonance. Two
convenient hand holds are built-in. It is coated with
scratch resistant, matte black PVC with the excep-
tion of the attractively contoured baffle that is paint
coated to facilitate repainting.
The MSW8 is a part of Mackie Industrial's
Monitor Series.
This Mackie Industrial product is covered by
an exclusive, one-time NO FAULT repair policy in
addition to a five year, limited warranty.
MSW8
Dual Load Reflex Subwoofer
Features
12" high efficiency, sub-woofer driver
featuring 3" reinforced Kapton
finned heat sink and heat resistant adhesives
8Ω low inductance passive crossover
with band-limited output terminals for stereo
satellite loudspeakers
Extremely Efficient — Extremely Compact
Dual-load vented, rectangular enclosure,
constructed with high density particle board
for maximum rigidity
Exclusive Mackie Industrial — one-time NO
FAULT repair policy
Five year, limited warranty
Low-Frequency Enhancement
Music Enhancement
Special Effects Reinforcement
Entertainment Systems
voice coil,
®
1
O F 4 P A G E S
