Reid E-Trail 2.0 Display/Control information
Ver 1.1 Nov 27 2022 by "raptordesigns"

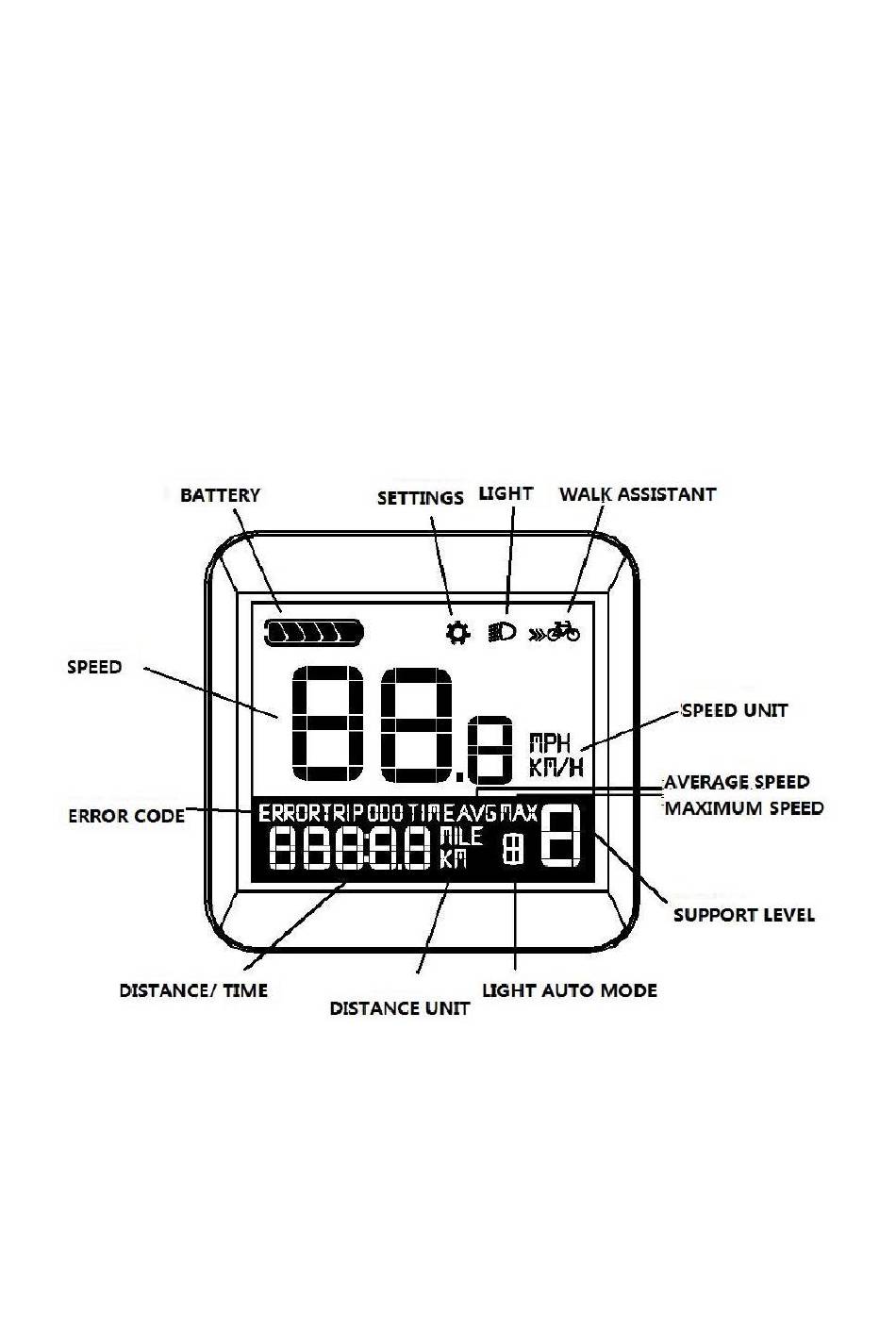

The Reid E-Trail uses the Ananda D10 display. This display has the following basic functions
•
Battery remaining capacity level
•
Speed（current, trip average, trip maximum）
•
Distance（ODO distance/TRIP distance）
•
Trip time
•
Support levels (1-5)
•
Light (Not installed as standard on E-Trail 2.0)
•
6km/h walk assistant
•
Error codes
•
Basic Settings: speed limit, backlight, speed/distance units
•
Advanced settings: Battery voltage, software version, ambient light sensor
•
Automatic backlight brightness (set by ambient light intensity)
Advertisement
Table of Contents
Related Manuals for Reid E-Trail 2.0
Summary of Contents for Reid E-Trail 2.0
- Page 1 Reid E-Trail 2.0 Display/Control information Ver 1.1 Nov 27 2022 by “raptordesigns” The Reid E-Trail uses the Ananda D10 display. This display has the following basic functions • Battery remaining capacity level • Speed（current, trip average, trip maximum） • Distance（ODO distance/TRIP distance）...
- Page 2 Controls The Control button unit buttons have the displayed basic functions. Buttons are also used during setting mode Hold for 2 seconds to turn display on or off. [POWER] Press briefly to display trip information (trip distance, time, maximum and average speed) on following screens. Press briefly to increase assistance level between 1 and 5 (Always 1 on start-up) Press briefly to decrease assistance level between 0 and 5...
-
Page 3: Battery Level
Battery level The remaining battery capacity is roughly indicated by the bar graph as follows. Additional battery information (actual voltage) is available using Advanced settings. WARNING: prolonged use of the battery in LOW (under voltage) condition may cause damage. The bike should be switched to assistance level 0 or turned off and charged immediately. -
Page 4: Error Codes
Error Codes: The following error codes are listed in various sources for the D10 display. Error code 28 is the most likely in normal operation. Error Error type Failure Solution code Abnormal current Contact supplier Throttle Error Contact Supplier Motor phase failure Contact Supplier Motor hall failure Contact Supplier... -
Page 5: Basic Settings
Settings Note that the settings available are limited compared with other versions of the D10 display, as the firmware enforces the 25km/hr speed limit imposed by Australian E-bike regulations Basic settings With the bike stationary, turn on the display press and hold both the [+] and [-] buttons. Press [+] or [–] to cycle between: •... - Page 6 Press [POWER] to save the change and exit LIGHT NOTES: There is no light installed on the E-Trail 2.0, but there is a connector under the plastic motor housing for a light connection. Unfortunately, there is no cable running through the frame to allow easy connection of a light, and you would need to run a cable externally along the frame to use it.
