R&B Wire Products 300G Assembly Instructions

R
· Never allow children or adults to ride in or on
cart, as it can cause serious injury or death.
!
· Be sure casters roll freely and turn easily.
· Place all loads in center of basket for balance.
@
SALES RBWIRE .COM
Caster
Raceway Cover
Bumper
Large Washer

HARDWARE INCLUDED

x8 Small washers
x4 Large washers
(800) 634-0555

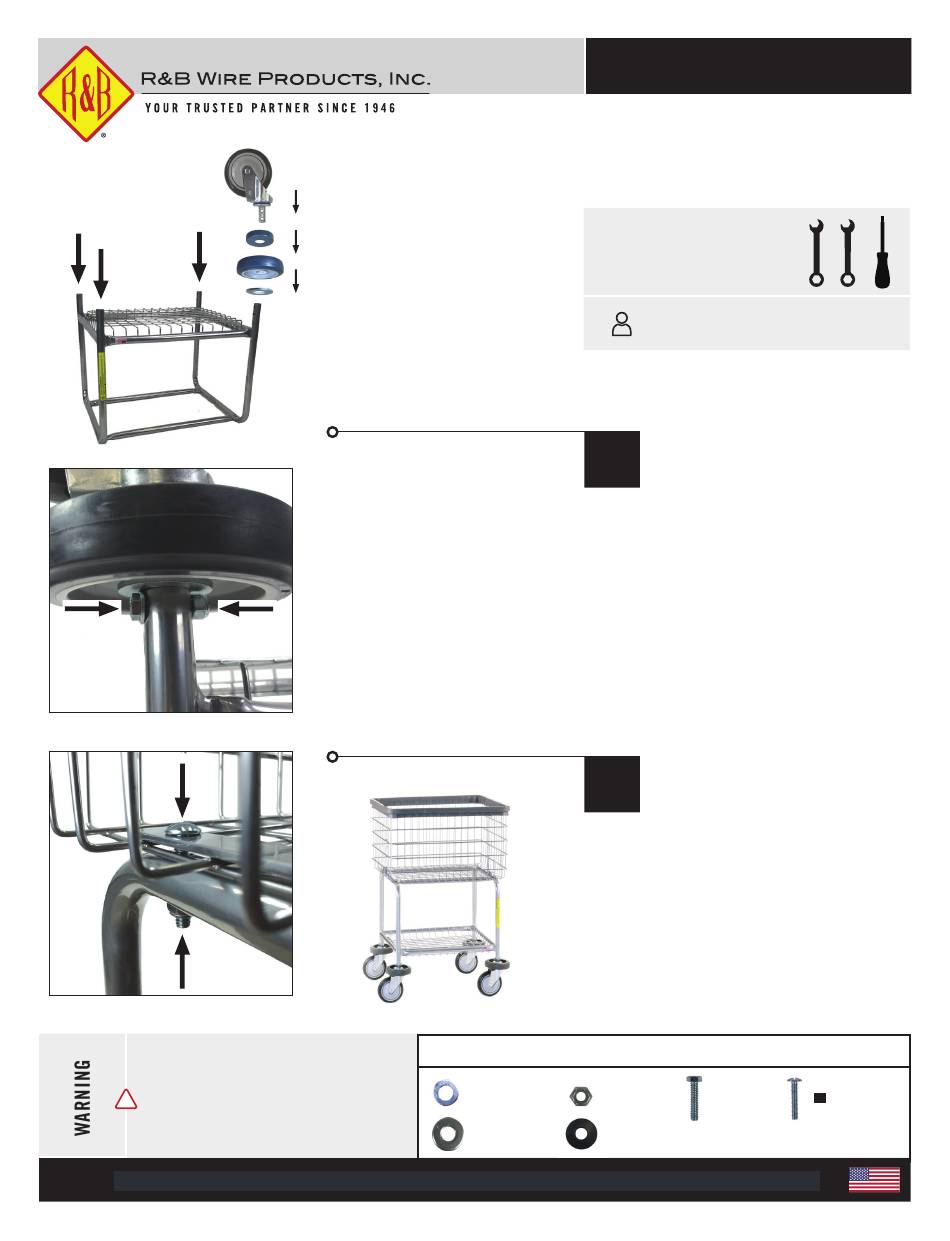

ASSEMBLY INSTRUCTIONS
Deluxe Elevated Wire Cart

TOOLS REQUIRED:

(2) 7/16 wrenches or sockets
(1) Large fl athead screwdriver
1 person assembly
STEP
1
Place a raceway cover, bumper and large washer onto
the caster stem, as shown in the diagram on the left.
NOTE: It is important that this sequence is followed in the order shown.
Insert caster stem into base leg. While holding the large
washer and bumper up towards the caster, insert a hex
head bolt with washer through base leg hole from out-
side of base (so that the nut is on the inside). Tighten
until bolt engages nylon lock nut.
STEP
2
Place basket on base and align holes in bottom of
basket with holes in top of base. Insert flathead bolts
through hole in basket and through base, and secure
with nuts.
NOTE: Your wire cart is assembled and ready for use. If you purchased
the Double Pole Rack, continue to page 2.
(Not to scale)
x8 Nuts x8 Hex bolts
x4 Raceway covers
RBWIRE.COM
MODELS 300G, 300G55
x4 x4 Flathead bolts
X5200-300
v1_5.2.19
