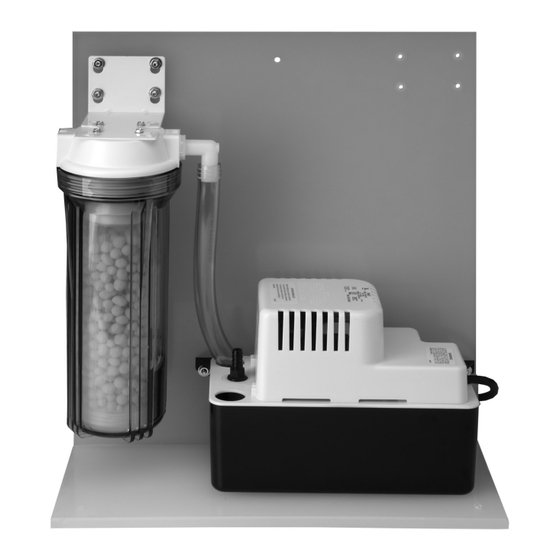

Acidic Condensate Wastewater and
Air Conditioning Non-Acidic
Wastewater Removal System
Models: V-250 & V-250 Pump Combi
Installation Operation & Maintenance
69 Ferry Street - Units 17 - 20
2400 Feather Sound Drive, Clearwater, FL 33762
jjmboilerworks.com
Easthampton, MA 01027 | 413-527-1893
413-427-3373
Advertisement
Related Manuals for JJM Boiler Works V Series
Summary of Contents for JJM Boiler Works V Series

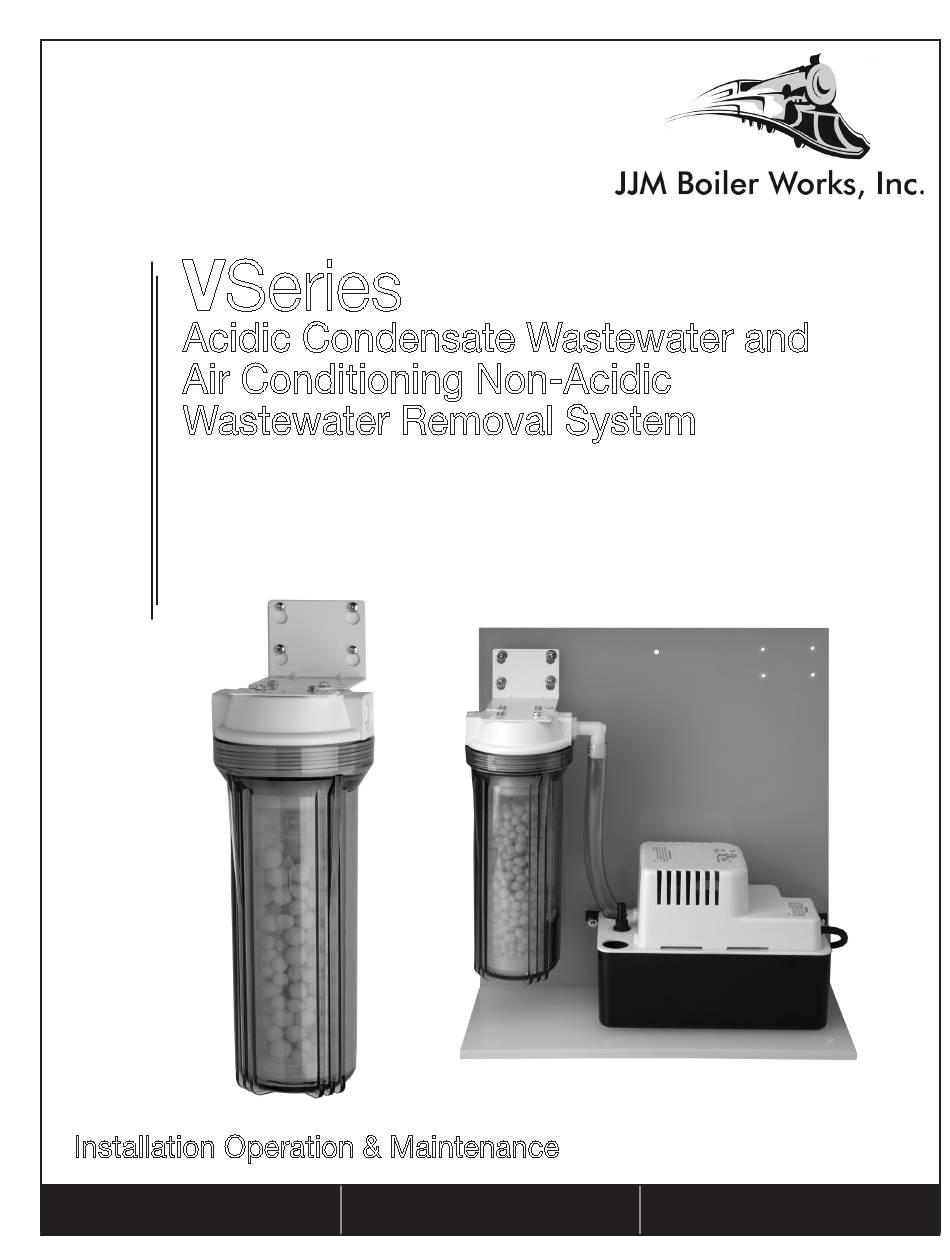

- Page 1 Revised - August, 2016 VSeries Acidic Condensate Wastewater and Air Conditioning Non-Acidic Wastewater Removal System Models: V-250 & V-250 Pump Combi Installation Operation & Maintenance 69 Ferry Street - Units 17 - 20 2400 Feather Sound Drive, Clearwater, FL 33762 jjmboilerworks.com Easthampton, MA 01027 | 413-527-1893 413-427-3373...
-
Page 2: Maintenance
V-250 cartridge. Follow instructions at right. CAUTION Replacement parts Contact JJM Boiler Works, your local wholesaler or manufac- Indicates a condition or hazard which will or can cause turer’s representative for replacement parts and refill kit. minor personal injury or property damage. -
Page 3: Application Restrictions
series Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance Overview What is pH? Read before proceeding The pH measurement of a fluid is an indicator of the acidity Failure to comply with these guidelines could result in severe personal injury, death or or alkalinity. -
Page 4: Installation
1.90 Wall Hung Heater 1 ---- 05/15/16 JJM BOILER WORKS INC. Wall Hung Heater/ Figure 2 Piping diagram for wall hung heater/V-250 vertical pH treatment canister with receiver pump. D:\6_praca\firmy\YourSpreadsheets\_ icons and history\YS logo.jpg V-250 Vertical ph Treatment Cansiter with Reciever Pump Wall Hung Heater/V-250 Vert. - Page 5 4 1 2 " Bracket 4.5" x 2.5" x 3"deep Bracket Screws 4x, 8-18 x 1" Bracket Screws 4x, 8-18 x 1" JJM Boiler Works, Inc. V-250 Part Numbers DETAIL PART PART NUMBER Bracket 4001 10” Outer Canister with gasket...
- Page 6 Figure 5 V-250 dimensions 4 1 2 " V250 dimensions 3 5 8 " V250 dimensions ---- 06/11/16 JJM BOILER WORKS INC. Figure 6 V-250 pump combi dimensions D:\6_praca\firmy\YourSpreadsheets\_ icons and history\YS logo.jpg V-250 Dimensions FRONT VIEW SIDE VIEW 1'-6"...
- Page 7 series Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance Installation Figure 7 V-200 Vertical Mount Canister V-200 Vertical Mount Canister 1/2” x 4” Single Stud Wall Mount 1/2” x 4” Double Stud Wall Mount Mount at least 1 3/4” above oor Install all electrical wiring in accordance with the National Electrical Code and local requirements.
