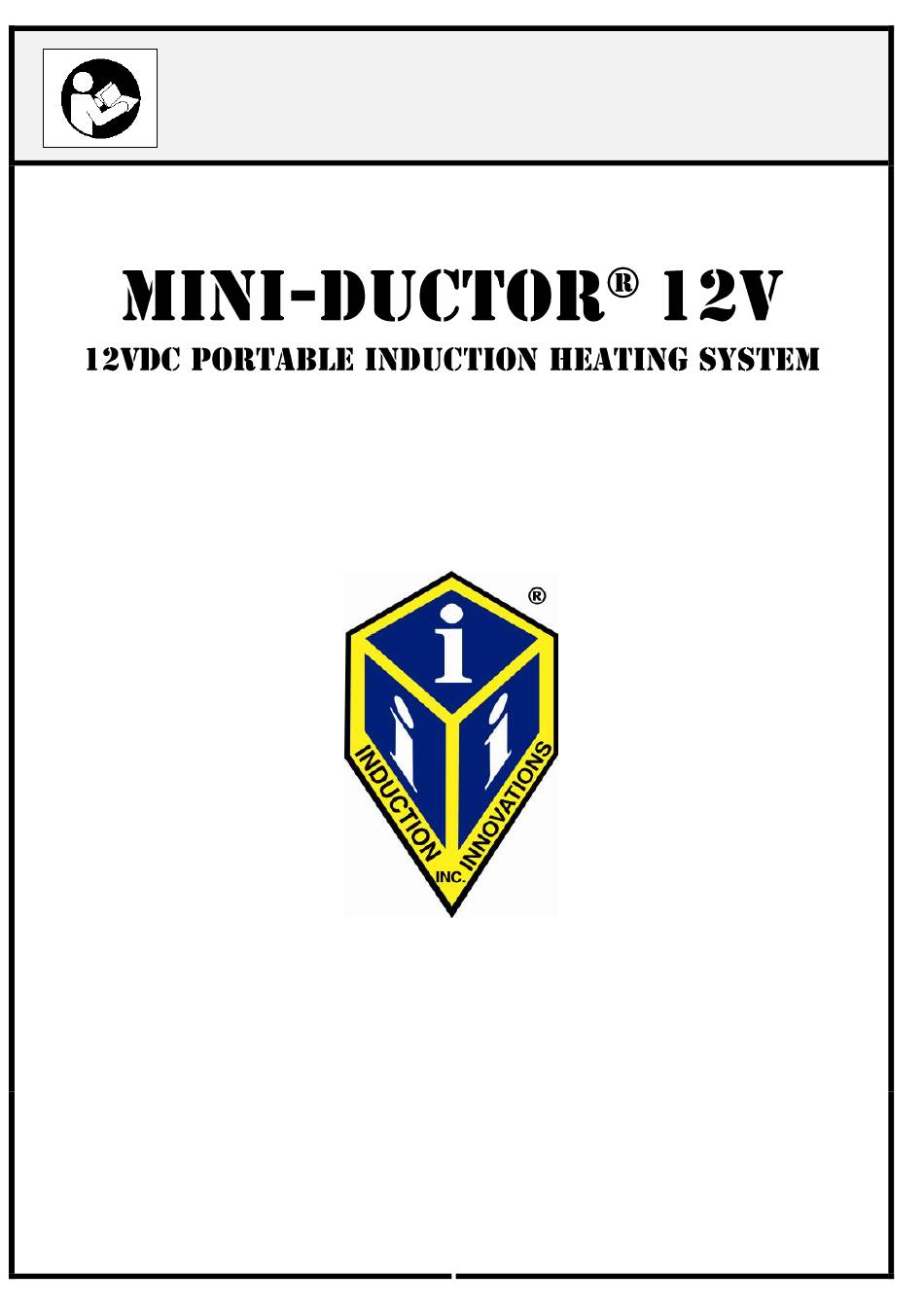

- Page 1 IMPORTANT: Carefully read this entire Operator’s Manual ® before Using the Mini-Ductor OPERATOR’S MANUAL Specializing in High Performance Induction Heating Systems...
- Page 2 All rights reserved. No part of this document shall be reproduced, stored in a retrieval system or transmitted by any means, electronic, mechanical, chemical, optical, magnetic, photocopy, ® printing or otherwise, except by written permission of the author or Induction Innovations . No patent liability is assumed with respect to the information contained herein.
-
Page 3: Table Of Contents
® Thank you for purchasing from Induction Innovations , Inc. ® Your new Mini-Ductor 12V has been proudly engineered and manufactured to Induction Innovation’s high standards for dependability, ease of use and operator safety. Properly cared for, this tool will provide years of rugged, trouble-free service. -
Page 4: Rules For Safe Operation
I. Rules for Safe Operation A. General Work Area Safety Rules Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury and/or death. Keep your work area clean and well illuminated. Cluttered and dark areas invite accidents. -
Page 5: Personal Safety Rules
B. Personal Safety Rules DO NOT operate the Mini-Ductor® 12V, and stay at least twenty feet away from an operating Mini-Ductor® 12V, if you have a cardiac pacemaker or any other kind of electronic or metallic surgical implant. Although the magnetic field emanating from the tool is effective within only a few inches, it poses a dangerous risk to the proper operation of all implanted or neighboring medical electronic devices and surgical metal implants. -
Page 6: Electrical Safety Rules
C. Electrical Safety Rules Do not use in rain, excessive moisture or immerse in water. Exposing the Mini- Ductor® 12V to water or other liquids may cause an electrical shock hazard. Do not abuse the electrical cord. Never use the cord to carry the Mini-Ductor® 12V. Keep all electrical cords away from heat, oil, sharp edges and/or moving parts. -
Page 7: Product Description & Contents
II. Product Description & Contents The Mini-Ductor® 12V portable kits give you everything you need to operate the Mini-Ductor® 12V induction heating tool in remote locations where access to 120 VAC is not possible. The Mini-Ductor® 12V provided in this kit has been specifically engineered to provide similar results from a 12 VDC power supply (using the portable battery pack or a 12VDC car battery using the battery extension cable) as induction heating tools operating at 120 VAC. - Page 8 Mini-Ductor® 12V 1. Coil Attachment Ports (top) 2. Thumb Screws 3. 8 FT Cable w/12VDC Plug 4. Sure Grip Plastic Handle 5. Power Actuator 6. LED work light 7. Air Vents (both ends) 8. Product Info Label ⅞” 9. Preformed Coil Attachment 10.
-
Page 9: Operation
III. Operation A. Coil Attachments The Coil Attachments (9, 10, 11, 12) transmit the energy from the tool to the ferrous part that needs to be heated. The Mini-Ductor® 12V comes with three basic coil configurations that can be used to heat nuts, fasteners, free frozen door hinges, loosen exhaust manifold bolts, truck under bed bolts, O Sensors, etc. -
Page 10: Using The Tool
b) Attach the red (positive +) clamp of the 2 foot battery extension cable to the positive terminal of the 12VDC car battery. Make sure the clamp is securely attached to the battery terminal. Note that on some vehicles, you may have to remove a plastic cover from the positive battery terminal before you can make this connection. -
Page 11: Cleaning The Tool
Though it is sometimes cool to watch, there is usually no reason to heat a nut to a red-hot condition in order to loosen it. In fact, heating a nut to a red-hot condition will shorten the life of the Coil Attachment and may change the molecular structure of the metal, thus changing the parts integral design. -
Page 12: Special Applications
g) Do NOT use heat guns, space heaters, torches, microwave or gas ovens, etc. to dry the components of the Mini-Ductor II® 12V after cleaning. V. Special Applications A. Using the Mini-Ductor® 12V to Remove Hail Damage or Soft Dents in Sheet Metal a) Configure the U-Form Coil to look like FIG. -
Page 13: Led & Monitoring Functions
VI. LED & Monitoring Functions The Mini-Ductor II® 12V is designed to operate with a nominal voltage of 12 VDC. It has over voltage lockout that disables operation when the voltage applied is greater the approximately 16 VDC. It can be operated from an automotive battery with the vehicle running as is it protected from transients and load dumps that may occur from the vehicle charging systems. -
Page 14: Trouble Shooting
Make sure all cables are intact. d) Contact Induction Innovations, Inc. B. The Coil Attachment arcs when heating the work surface: a) The Coil Attachment is not properly inserted or secured in the port or has an insulation breach in the work coil.
