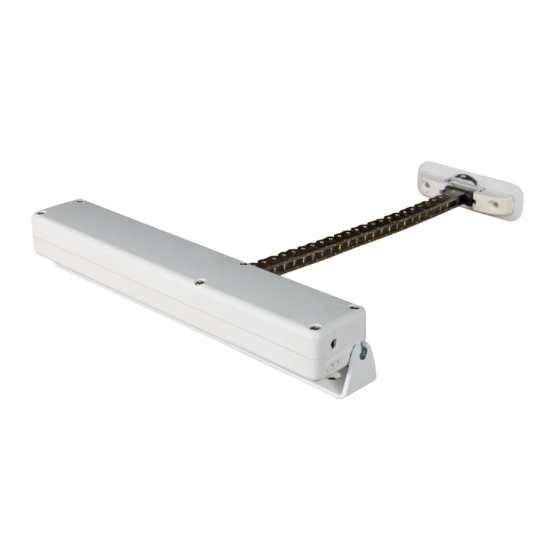

ZWS12, ZWS230 motors user manual
(Draft version for Motor Class C prototype)
Spis treści
1 Safety rules .......................................................................................................................................2
2 Description .......................................................................................................................................3
3 Actuator calibration...........................................................................................................................4
4 Device programming - INCLUDE & ASSOCIATE........................................................................5
5 Device programming - EXCLUDE & DELETE..............................................................................6
6 Interoperability of devices different manufacturers..........................................................................7
7 Including ZWS actuator into a third-party network..........................................................................7
8 Reset (factory default).......................................................................................................................7
10 Manual operation ............................................................................................................................8
11 Remote operation (use of ZWP15 remote controller).....................................................................8
12 Technical parameters ......................................................................................................................9
13 Indicators description - LEDs.......................................................................................................10
14 WARRANTY................................................................................................................................10
FAKRO PP Sp. z o.o.
144A Węgierska St
33-300 Nowy Sacz
Poland
www.fakro.com
tel. +48 18 444 0 444
fax. +48 18 444 0 333
11.02.17 NC814
1/10
©2011,
FAKRO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for fakro ZWS12
Summary of Contents for fakro ZWS12
-
Page 1: Table Of Contents
ZWS12, ZWS230 motors user manual (Draft version for Motor Class C prototype) Spis treści 1 Safety rules ............................2 2 Description ............................3 3 Actuator calibration...........................4 4 Device programming – INCLUDE & ASSOCIATE................5 5 Device programming – EXCLUDE & DELETE................6 6 Interoperability of devices different manufacturers................7 7 Including ZWS actuator into a third-party network................7... -
Page 2: Safety Rules
● Plastic containers used for packing should be stored out of children reach as they may be a potential source of danger. ● The motor should be used according to its intended design. The FAKRO Company shall not be responsible for any consequences being the result of improper motor use. -
Page 3: Description
In order to be able to operate ZWS motors, they must be installed according to the picture installation manual included in the product package. Subsequently, the motors should be programmed to work with one of the controllers (e.g. ZWP15 remote control, ZWK15, ZWK1 keyboard) offered by FAKRO – see section 3. -
Page 4: Actuator Calibration
Note!!! In case of break of the power supply during the actuator work, the device will need to verify reference position. It happens automatically after receiving any command. Irrespective of received command, the actuator starts to close and after complete closure it returns to position set by a command. 11.02.17 NC814 4/10 ©2011, FAKRO... -
Page 5: Device Programming - Include & Associate
Press 1 sec Figure 3: Associating ZWS motor with selected pair of controller buttons For information on handling, the Inclusion and Association functions using products of another manufacturers, please read the documents of the respective manufacturer. 11.02.17 NC814 5/10 ©2011, FAKRO... -
Page 6: Device Programming - Exclude & Delete
8 sec Press 1 sec Figure 5: Removing ZWS motor from Z-Wave network. For information on handling, the Exclusion and Delete functions using products of another manufacturers, please read the documents of the respective manufacturer. 11.02.17 NC814 6/10 ©2011, FAKRO... -
Page 7: Interoperability Of Devices Different Manufacturers
ZWS motors are Security Enabled products. The security provides confidential communication between nodes in network. Note: Security Enabled Z-Wave Controller must be used in order to fully utilize ZWS. Actuator added to the secure network will not be able to be operated by controllers which do not support Security. 11.02.17 NC814 7/10 ©2011, FAKRO... -
Page 8: Manual Operation
Watch the LED showing the status of devices on the network. Blinking LED indicates the status of protection state ( see section 7) and may mean that the control of the device is not possible. 11 Remote operation (use of ZWP15 remote controller) <0,5 min 0,5s <0,5 =0,5 11.02.17 NC814 8/10 ©2011, FAKRO... -
Page 9: Technical Parameters
12 Technical parameters Technical Parameters Parameter ZWS12 ZWS230 Chain reach 240 mm 360 mm Output power Rated current 0.72 A 0.12 A Standby current 0.03 A 0.03 A Current limit Chain unfolding rate 7.5 mm 9.7 mm Chain pushing force... -
Page 10: Indicators Description - Leds
14 days after accepting the product for repair. Warranty and post-warranty repairs are performed by the manufacturer i.e. FAKRO PP. Sp. z o.o.. Quality Certificate: Device Model............................
