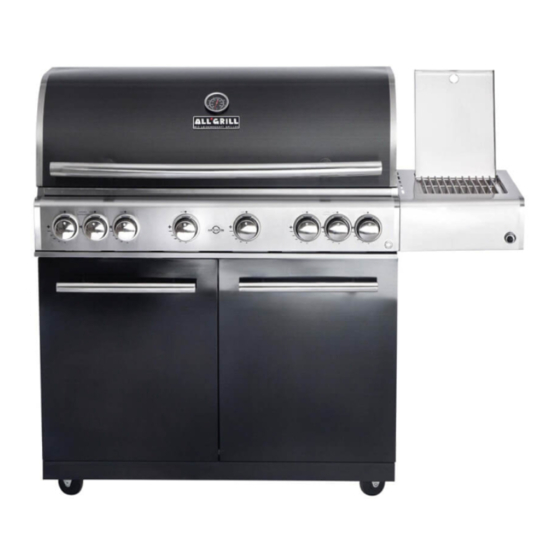

AllGrill CHEF Modular Customer's Operating And Assembly Instructions

Download this manual

Operating and assembly instructions

Opionale fat drawer for your

ALLGRILL CHEF Modular

FOR OUTDOOR USE ONLY.

- READ THE ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE STARTING THE

ASSEMBLY.

- WARNING: ACCESSORIES MAY BE HOT; PLEASE KEEP CHILDREN AWAY.

- THESE PARTS MUST BE KEPT AWAY FROM COMBUSTIBLE MATERIALS.

- AFTER USE, PLEASE TURN OFF THE GAS SUPPLY.

- OPTICAL & TECHNICAL CHANGES POSSIBLE AT ANY TIME.

Need help?

Do you have a question about the CHEF Modular and is the answer not in the manual?

Page 1 Operating and assembly instructions Opionale fat drawer for your ALLGRILL CHEF Modular FOR OUTDOOR USE ONLY. - READ THE ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE STARTING THE ASSEMBLY. - WARNING: ACCESSORIES MAY BE HOT; PLEASE KEEP CHILDREN AWAY. - THESE PARTS MUST BE KEPT AWAY FROM COMBUSTIBLE MATERIALS.
Page 5 Detailed view and parts list 1. frame left, 1x 2. telescopic pull-out left, 1x 3. grease drawer with grease tray, 1x 4. telescopic pull-out right, 1x 5. frame right, 1x 1. Remove the fat drawer and disassemble the fire box from the grill cart 1.
Page 6 2. Mounting frame M6x16 4PCS Mount the two frames on the barbecue cart on the left and right side 3. assembly fire box Place the firebox in pairs on the frame of the new fat drawer and screw it. � M6x16 4PCS...
Page 7 4. Mounting telescopic slides � M5x8 8PCS 5. Insert the fat drawer...
Page 8 Grill...
