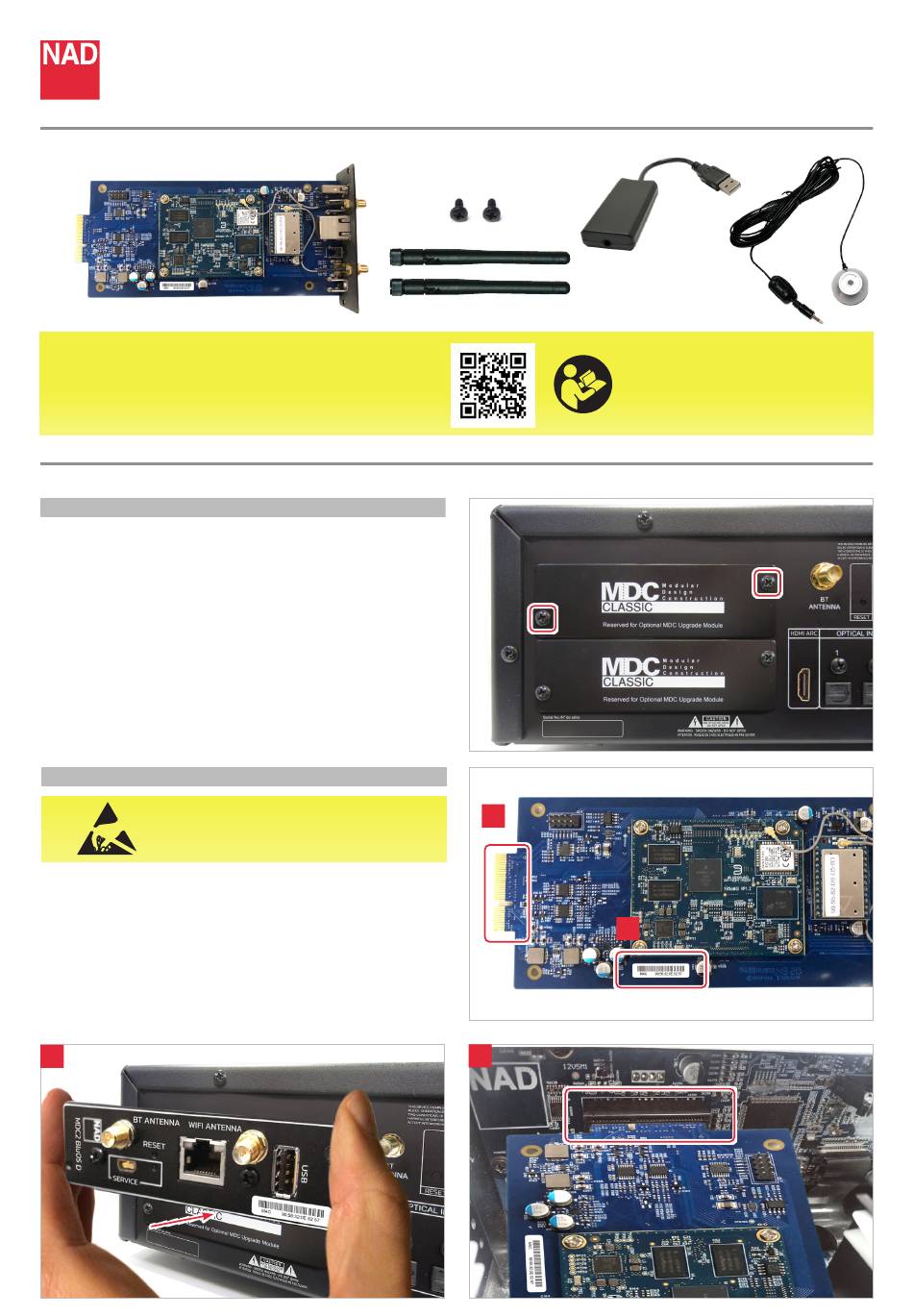

MDC2 BluOS-D
®
Mounting Instructions
WHAT'S IN THE BOX
IMPORTANT NOTES
•
MDC2 BluOS-D can be integrated with the following compatible NAD
products – C369, C389 and C399.
•
The reference model used in this mounting instruction is C 399.
INSTALL MDC2 BLUOS-D
STEP A
Remove the MDC Classic cover and top cover by loosening and taking out the
screws holding them in place.
STEP B
This PCB assembly includes static sensitive
components, take appropriate precautions.
1 Take note of the unique Wi-Fi MAC address (the same can be found on the MDC2
BluOS-D metal back plate). This is needed when configuring the MDC2 BluOS-D.
2 Remove the protective tape from the contact terminals.
3 Slide MDC2 BluOS-D module through the rail pushing all the way to the
corresponding connectors.
4 Make sure MDC2 BluOS-D module is locked in.
Use corresponding screws to fix back into place MDC2 BluOS-D module and top
cover.
3
nadelectronics.com/product/mdc2-bluos-d
support.nadelectronics.com
2
1
4
