DD BluOS
®

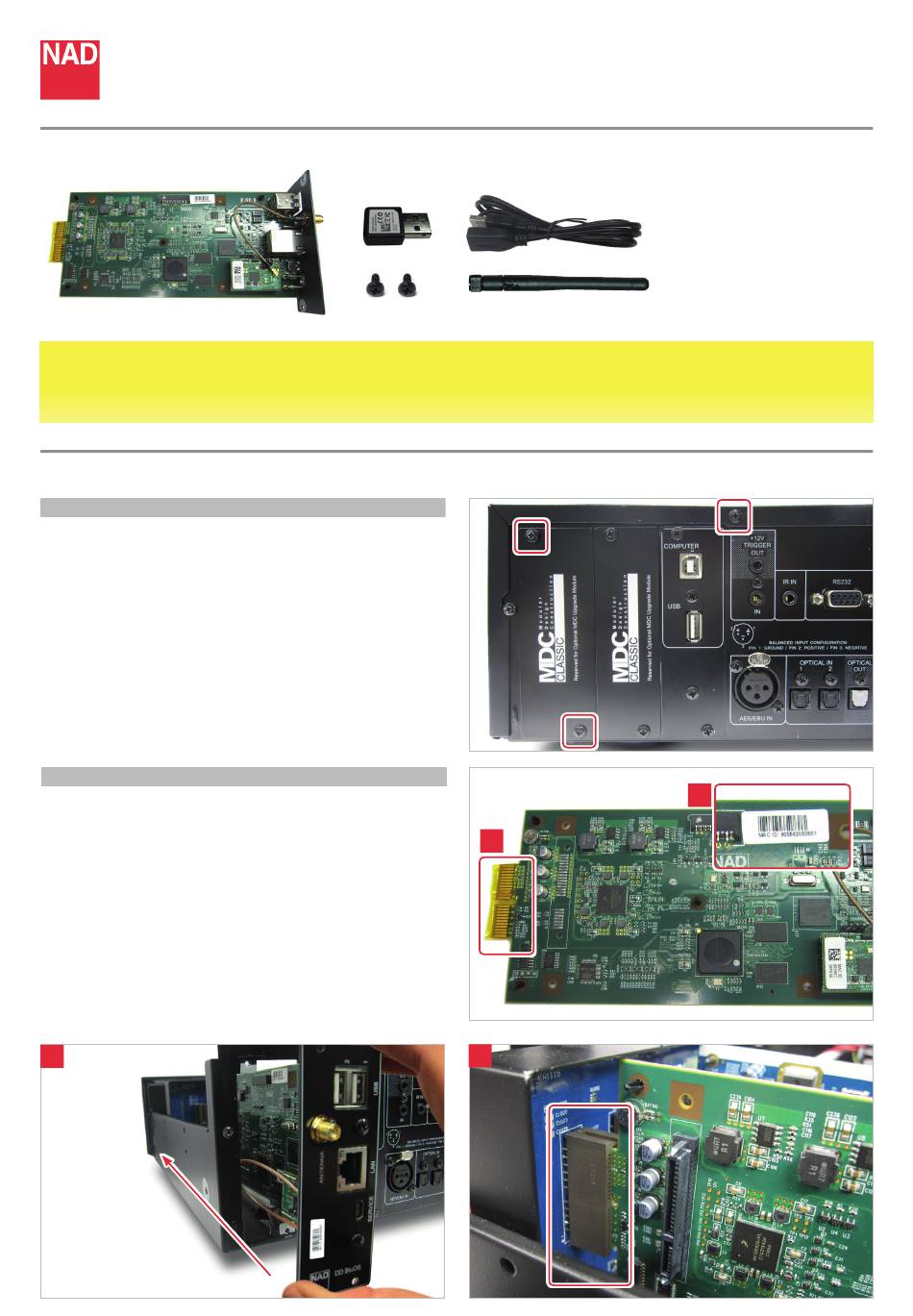

Mounting Instructions
WHAT'S IN THE BOX
IMPORTANT NOTES
•
Download "Configuring DD BluOS" from the Manuals/Downloads tab at http://nadelectronics.com/products/hifi-mdc-modules/MDC-DD-BluOS-Module
•
DD BluOS can be integrated to a C 390DD or M12. The reference model used in this mounting instruction is C 390DD.
INSTALL DD BluOS
STEP A
Remove the MDC Classic cover and top cover by loosening and taking out the
screws holding them in place.
Installation location of DD BluOS (as viewed from the rear panel)
C 390DD: First slot only from the left side
M12: Any of the three slots from the left side
STEP B
1 Take note of the unique Wi-Fi MAC address (the same can be found at the
DD BluOS metal back plate). This is needed when configuring the DD BluOS.
2 Remove the protective tape from the contact terminals.
3 Slide DD BluOS module through the rail pushing all the way to the
corresponding connectors.
4 Make sure DD BluOS module is locked in.
Use corresponding screws to fix back into place DD BluOS module and top
cover.
3
2
4
1
