Let's bake play kitchen & accessories

Advertisement

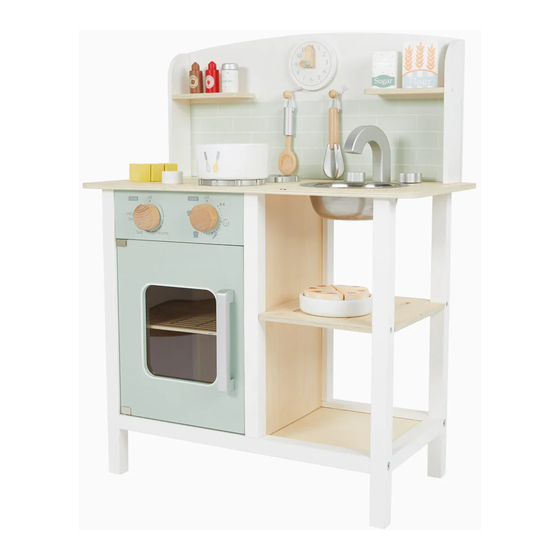

Let's Bake Play Kitchen & Accessories
L5190
Assembly Difficulty
one-person job
easy
- medium - hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
A few important pointers before you start:
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
V2
12/11/2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L5190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Great Little Trading L5190

  • Page 1 Let’s Bake Play Kitchen & Accessories A few important pointers before you start: L5190 • Please read the instructions right through before you start, and check that all the components have been included in the pack;...
  • Page 2: Safety Warnings

    Safety Warnings: Customer Service: • Adult assembly required. • If you find that any components are missing or damaged, please do not begin assembly and do not use the item. Please contact GLTC • Not suitable for children under 3 years due to small parts that may Customer Services on 0344 848 6000 immediately.
  • Page 3: Component Checklist

    Component Check List 1x Mixing spoon 1x Sugar 1x Flour 1x Base bar 1x Left side panel 1x Base shelf 1x Whisk 2x Icing pens 1x Sprinkles shaker 1x Back right leg 1x Front right leg 1x Centre panel 1x Butter 1x Egg 1x Mixing bowl 1x Shelf...
  • Page 4 STEP 1: Hardware for Step 1: STEP 3: Hardware for Step 3: Hardware for Step 4: Attach left side panel (A) and back right leg (D) to Attach shelf panel (G) base shelf (B) using 3x bolts (#2). Attach bottom bar to centre panel (F) 3x #2 35mmL bolts (C) as shown.
  • Page 5 Hardware for Step 8: Hardware for Step 6: 4x #1 24 mmL screws 2x #2 35mmL bolt STEP 6: Insert assembled centre panel (F) and shelf (G). Attach using 2x bolts (#2) STEP 8: Attach side wings (Q), to backboard (R) using 4x screws (#1). STEP 9: Hardware for Step 9: Hardware for Step 7:...
  • Page 6 (not provided). Copyright© 2021 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
