- Page 1 Network Cube Camera Quick Start Guide...
- Page 2 Network Cube Camera·Quick Start Guide About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Network Cube Camera·Quick Start Guide WITH THE USE OF THE PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY...
- Page 4 Network Cube Camera·Quick Start Guide Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Network Cube Camera·Quick Start Guide 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU, RE Directive 2014/53/EU.
- Page 6 Network Cube Camera·Quick Start Guide This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence.
- Page 7 Network Cube Camera·Quick Start Guide This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 8 Network Cube Camera·Quick Start Guide touched without taking care. For device with this sticker, this device is intended for installation in a restricted access location, access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken.
- Page 9 Network Cube Camera·Quick Start Guide ● Do not drop the camera or subject it to physical shock. ● Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
- Page 10 Network Cube Camera·Quick Start Guide ● This equipment is not suitable for use in locations where children are likely to be present. ● CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions ATTENTION: IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT.
-
Page 11: Table Of Contents
Network Cube Camera·Quick Start Guide Table of Contents 1 Appearance Description ............... 11 1.1 Type I, II ................. 11 1.2 Type III ................14 2 Notice ................... 18 3 Installation ..................20 3.1 Memory Card Installation ..........20 3.1.1 Type I, II .............. 21 3.1.2 Type III .............. -
Page 12: Appearance Description

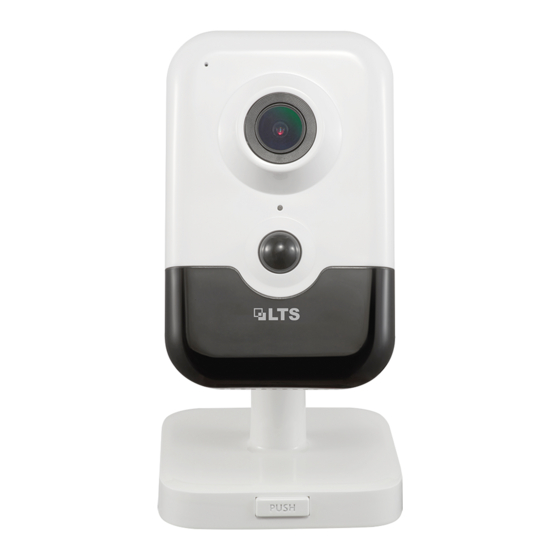

Network Cube Camera·Quick Start Guide 1 Appearance Description There are three types of appearances. Please refer to the figure below. And one appearance will be taken as an example in the chapter below. Type I, II Figure 1-1 Type I Appearance Figure 1-2 Type II Appearance... - Page 13 Network Cube Camera·Quick Start Guide Figure 1-3 Overview...
- Page 14 Network Cube Camera·Quick Start Guide Table 1-1 Description Description Lens Microphone IR LED Alarm: Solid red when the camera is armed; Solid blue when the camera is unarmed Status: Solid blue when the camera is Indicator added to the Guarding Vision Link: Flashing amber when network is connected;...
-
Page 15: Type Iii
Network Cube Camera·Quick Start Guide Description O: Alarm Output Interface Power supply interface (12 VDC) Speaker Type III Figure 1-4 Type III Appearance... - Page 16 Network Cube Camera·Quick Start Guide Figure 1-5 Type III Overview Table 1-2 Description Description Memory Card Slot RESET/WPS*...
- Page 17 Network Cube Camera·Quick Start Guide Description 1 RJ45 10M/100M self-adaptive Ethernet port & PoE Power Interface (12 VDC) Speaker Microphone Lens ● Solid red: the camera is starting ● Slow flashing red: the network connection failed ● Quick flashing red: the memory card error or other malfunctions Indicator ●...
- Page 18 Network Cube Camera·Quick Start Guide Press RESET about 10 s when the camera is power on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc. Only certain models support WPS function. ...
-
Page 19: Notice
Network Cube Camera·Quick Start Guide 2 Notice Do not install the Do not touch the lens camera in the extreme with your finger. whether condition. Do not install the Do not subject the camera towards the strong camera to vibration, shock or light or in the unstable heavy pressure. - Page 20 Network Cube Camera·Quick Start Guide High humidity may Under no damage the camera hardware; circumstances should you put it in dry and submerge the camera in any well-ventilated place. type of liquid. Electromagnetic radiation may affect the video data transmission and the image quality. Do not install the camera near electromagnetic radiation source.
-
Page 21: Installation
Network Cube Camera·Quick Start Guide 3 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC, please make sure your power supply matches with your camera. -
Page 22: Type I, Ii
Network Cube Camera·Quick Start Guide 3.1.1 Type I, II Steps: 1. Insert the memory card into the card slot on the side of the camera. 2. (Optional) Push the inserted memory card to get it sprung out. Memory Card Figure 3-1 Install Memory Card 3.1.2 Type III Steps: 1. -
Page 23: Type Iii
Network Cube Camera·Quick Start Guide Slot Cover Figure 3-2 Install Memory Card Type I, II Camera Mounting 3.2.1 Stand Mounting Steps: Take the bracket out from the package. Figure 3-3 Bracket... -
Page 24: Ceiling Mounting
Network Cube Camera·Quick Start Guide Align the camera body to the bracket, and rotate the camera body to fix it with the bracket. Figure 3-4 Install the Camera Body Assemble the camera as the steps above, and put the camera on the flat surface. - Page 25 Network Cube Camera·Quick Start Guide Drill Template Screw hole All:for Mounting Base Figure 3-5 Drill Template 2. Disassemble the 3-axis bracket. Hold the base with one hand, and rotate the pole anticlockwise to disassemble the pole from the base. Knob Pole Base Fixed...
- Page 26 Network Cube Camera·Quick Start Guide 3. Install the fixed tray to the ceiling with the supplied screws. 4. Install the base to the fixed plate. Figure 3-7 Install the Fixed Plate and Mounting Base 5. Install the camera to the bracket. Figure 3-8 Install the Camera 6.
-
Page 27: Type Iii Camera Mounting
Network Cube Camera·Quick Start Guide Knob 360° 90° Figure 3-9 Adjust the Camera Type III Camera Mounting This type of camera supports ceiling mounting and wall mounting. The following describes the steps for the wall or ceiling mounting. Steps: 1. Install the adapter plate to the wall or ceiling with the supplied screws. - Page 28 Network Cube Camera·Quick Start Guide 2. Buckle the camera base into the adapter plate. Note: You are recommended to push into two buckles 1 and 2 first and then the third buckle 3. Then the camera can be fastened firmly on the base.
- Page 29 Network Cube Camera·Quick Start Guide Adjusting Knob 1 Rotation: 0° to 360° Adjusting Knob 2 Panning: 0° to 360° Tilting: 0° to 90° Figure 3-12 Adjust the Camera...
