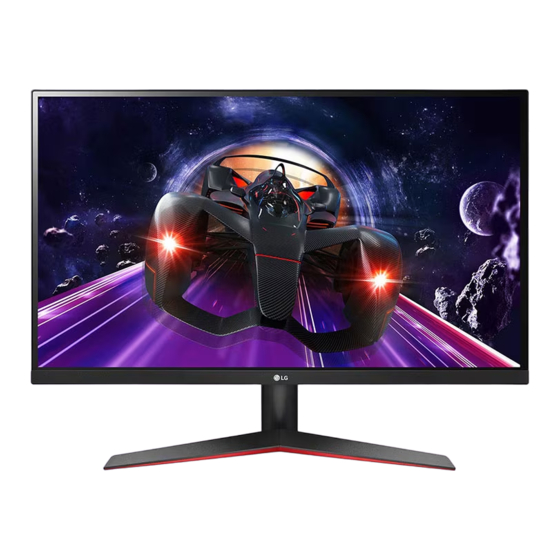

OwnEr's ManuaL
LED LCD MOnITOr
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
24MP60G/24MP60GP
27MP60G/27MP60GP
www.lg.com
32MP60G/32MP60GP
Copyright © 2020 LG Electronics Inc. all rights reserved.
Advertisement
Related Manuals for LG 27MP60GP
Summary of Contents for LG 27MP60GP
- Page 1 OwnEr’s ManuaL LED LCD MOnITOr (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 24MP60G/24MP60GP 27MP60G/27MP60GP www.lg.com 32MP60G/32MP60GP Copyright © 2020 LG Electronics Inc. all rights reserved.
-
Page 2: Table Of Contents
TabLE of CoNTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICEnsE ............2 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI assEMBLInG anD PrEParInG ....3 Licensing administrator, Inc. -
Page 3: Assembling And Preparing
It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • Illustrations in this document represent typical procedures, so they may look different from the actual product. - Page 4 How to Use the Joystick button 24MP60GP You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ 27MP60G down with your finger. 27MP60GP basic functions 32MP60G Press the joystick button once with your finger 32MP60GP Power on to turn on the monitor.
- Page 5 Be careful not to touch or press the screen area when adjusting the angle of the monitor. 100 mm 24MP60G 24MP60GP 27MP60G 27MP60GP 32MP60G 32MP60GP CaUTIoN • unplug the power cord before moving or installing the monitor. There is risk of electric shock.
- Page 6 Using the Kensington Lock Installing the Wall Mount Plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NoTE at http://www.kensington.com.
- Page 7 Lsw 149 NoTE • a non-VEsa standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. • The wall mount kit includes the installation guide and all necessary parts.
-
Page 8: Using The Monitor
USING THE MoNIToR DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from the actual product. NoTE Press the joystick button, go to Settings Input, and then select the input option. •... - Page 9 Connecting aV Devices HDMI Connection HDMI transmits digital video and audio signals from your aV device to the monitor. NoTE • using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues. • use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
-
Page 10: User Settings
USER SETTINGS NoTE • Your monitor’ s OsD (On screen Display) may differ slightly from that shown in this manual. activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu. - Page 11 Main Menu features Main Menu Description Input sets input mode. Power Off Power off Turns off the monitor. Settings Configures the screen settings. Exit Settings Input Game Mode sets the game mode for gaming. Exit Exits the main menu. Game Mode Menu Settings To view the OsD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
- Page 12 Quick Settings Settings > Quick Settings Description brightness adjusts the contrast and brightness of the screen. Contrast Volume adjusts the volume level.(for HDMI, DisplayPort only ) NoTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. Color Temp Custom The user can adjust it to red, green, or blue by customization.
- Page 13 Picture Note • The Picture Mode that can be set depends on the Input signal. Settings > Picture Description Picture Mode Gamer 1 In this mode, users can customize elements including game-related options. Gamer 1 and Gamer 2 picture modes allow you to save two sets of customized display settings, including game-related setup options. Gamer 2 This mode is optimized for FPS games.
- Page 14 Settings > Picture Description Picture adjust brightness adjusts the color contrast and brightness of the screen. Contrast Sharpness adjusts the sharpness of the screen. SUPER RESoLUTIoN+ Displays in the most common setting. Disables SUPER RESoLUTIoN+. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Middle Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
- Page 15 Settings > Picture Description Game adjust Response Time sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use fast. when there is a lot of motion, it is recommended that you use faster. setting to Faster may cause image sticking.
- Page 16 Settings > Picture Description Game adjust 1ms Motion blur This mode minimizes motion blur in fast-moving videos. Reduction This function is available for the following vertical frequency. (75Hz) Turns 1ms Motion blur Reduction Mode off. NoTE • To reduce motion blur, brightness is reduced with backlight control. •...
- Page 17 Settings > Picture Description Color adjust Gamma Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Color Temp set your own color temperature.
- Page 18 General Settings > General Description Language sets the menu screen to the desired language. SMaRT ENERGY SaVING Conserve energy by using luminance compensation algorithm. High saves energy using the high-efficiency SMaRT ENERGY SaVING feature. saves energy using the low-efficiency SMaRT ENERGY SaVING feature. Disables the feature.
-
Page 19: Troubleshooting
Do you see an "Unrecognized monitor, Plug and Play (VESa DDC) monitor found" message? • Have you installed the display driver? Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function. -
Page 20: Product Specification
PRoDUCT SPECIfICaTIoN 24MP60G 27MP60G 32MP60G 24MP60G 27MP60G 24MP60GP 32MP60G 27MP60GP 32MP60GP 24MP60GP 27MP60GP 32MP60GP Color Depth 8-bit color is supported Resolution Max resolution 1920 x 1080 @ 60 Hz (D-sub) 1920 x 1080 @ 75 Hz (HDMI,DisplayPort) recommended resolution 1920 x 1080 @ 60 Hz... - Page 21 Environmental Conditions Operating Conditions Temperature 0 °C to 40 °C Humidity Less than 80 % storing Conditions Temperature -20 °C to 60 °C Humidity Less than 85 % Dimensions Monitor size (width x Height x Depth) with stand (mm) 539.1 x 414.3 x 211.7 without stand (mm) 539.1 x 321.5 x 39.1 Weight (Without Packaging)
- Page 22 PRoDUCT SPECIfICaTIoN 24MP60G 27MP60G 32MP60G 24MP60G 27MP60G 24MP60GP 32MP60G 27MP60GP 32MP60GP 24MP60GP 27MP60GP 32MP60GP Color Depth 8-bit color is supported Resolution Max resolution 1920 x 1080 @ 60 Hz (D-sub) 1920 x 1080 @ 75 Hz (HDMI,DisplayPort) recommended resolution 1920 x 1080 @ 60 Hz...
- Page 23 Or aD2138s20, manufactured by PI Electronics (H.K.) Ltd. Or aD2138620, manufactured by PI Electronics (H.K.) Ltd. Or aD2138u20, manufactured by PI Electronics (H.K.) Ltd.(For India only) Output: 19 V 1.7 a aDs-25sFa-19-3 19025E, manufactured by sHEnZHEn HOnOr ELECTrOnIC Or aDs-25FsF-19 19025EPCu-1, manufactured by sHEnZHEn HOnOr ELECTrOnIC Or aDs-25FsF-19 19025EPBr-1, manufactured by sHEnZHEn HOnOr ELECTrOnIC Or aDs-25FsF-19 19025EPI-1, manufactured by sHEnZHEn HOnOr ELECTrOnIC Or aDs-25FsF-19 19025EPG-1, manufactured by sHEnZHEn HOnOr ELECTrOnIC...
- Page 24 PRoDUCT SPECIfICaTIoN 24MP60G 27MP60G 32MP60G 27MP60G 24MP60GP 32MP60G 27MP60GP 32MP60GP 27MP60GP 32MP60GP Color Depth 8-bit / 10-bit color is supported. Resolution Max resolution 1920 x 1080 @ 60 Hz (D-sub) 1920 x 1080 @ 75 Hz (HDMI,DisplayPort) recommended resolution 1920 x 1080 @ 60 Hz...
- Page 25 Environmental Conditions Operating Conditions Temperature 0 °C to 40 °C Humidity Less than 80 % storing Conditions Temperature -20 °C to 60 °C Humidity Less than 85 % Dimensions Monitor size (width x Height x Depth) with stand (mm) 729.4 x 513.3 x 224.8 without stand (mm) 729.4 x 430.3 x 45.0 Weight (Without Packaging)
- Page 26 Support Mode (Preset Mode, PC) 24MP60G 27MP60G 24MP60G 32MP60G 27MP60G 32MP60G 24MP60G 27MP60G 24MP60GP 24MP60G 32MP60G 27MP60GP 27MP60G 24MP60GP 32MP60GP 32MP60G 27MP60GP 32MP60GP 24MP60GP 27MP60GP 24MP60GP 32MP60GP 27MP60GP 32MP60GP Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V)
- Page 27 MP60G 27MP60G 32MP60G MP60G MP60GP 32MP60G 27MP60GP 32MP60GP MP60GP 32MP60GP D-Sub/HDMI Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 640 x 480 37.5 800 x 600 37.879 60.317 800 x 600 46.875 1024 x 768 48.363...
- Page 28 24MP60G 27MP60G 32MP60G 27MP60G 24MP60GP 32MP60G 27MP60GP 32MP60GP 27MP60GP 32MP60GP DisplayPort Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 1280 x 800 49.702...
- Page 29 The model and serial number of the product are located on the back and on one side of the product. record them below in case you ever need service. Model serial no.
