Quick Installation Guide

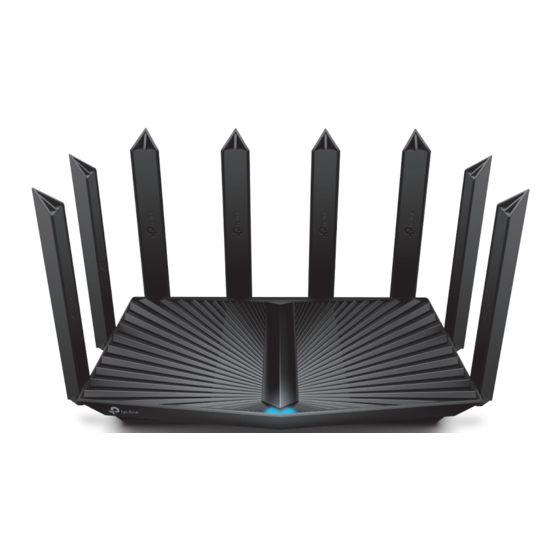

Tri-Band Wi-Fi 6 Router
Images may differ from actual product.
©2022 TP-Link 7106509665 REV1.0.0
Set up with videos:
Scan QR code or visit https://www.tp-link.com/support/setup-video/#wi-fi-routers
Connect the Hardware
1
• Unplug the power to turn off your modem, if any, and remove the backup battery if it has one.
• Refer to Q5 of Need Help to place the router for optimal Wi-Fi performance.
If your internet connection is through an Ethernet cable directly from the wall instead of through a DSL / Cable / Satellite modem, connect
the Ethernet cable to the router's 2.5 Gbps WAN/LAN port and follow step 3 and 4 to complete the hardware connection.
3
Connect the power adapter to the router
and turn on the router.
4
Verify the LED is solid on (red or blue)
before moving on.
1
Connect the powered-off modem to the 2.5 Gbps
WAN/LAN port with an Ethernet cable.
Note: If you want to use the 1 Gbps WAN/LAN port as the WAN port
instead, please refer to Q1 of Need Help in this guide.
2
Power on the modem, and then wait
about 2 minutes for it to restart.
Unplug the power
Modem
Internet
Advertisement
Related Manuals for TP-Link AX95
Summary of Contents for TP-Link AX95
- Page 1 Set up with videos: Scan QR code or visit https://www.tp-link.com/support/setup-video/#wi-fi-routers Connect the Hardware Unplug the power • Unplug the power to turn off your modem, if any, and remove the backup battery if it has one. • Refer to Q5 of Need Help to place the router for optimal Wi-Fi performance.
- Page 2 • Connect a computer directly to the router using an Ethernet cable. Log in to the router’s web more, please visit https://www.tp-link.com/support management page at http://tplinkwifi.net, and go to the Wireless page to retrieve or reset your To communicate with TP-Link users or engineers, visit Range Extender wireless password.
