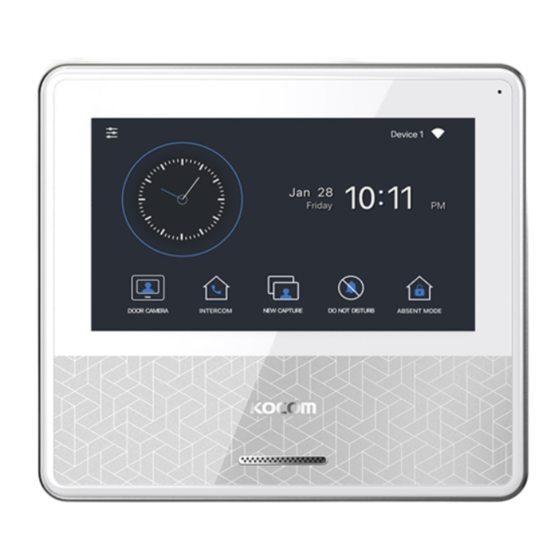

Smart ip videophone

Advertisement

Quick Links

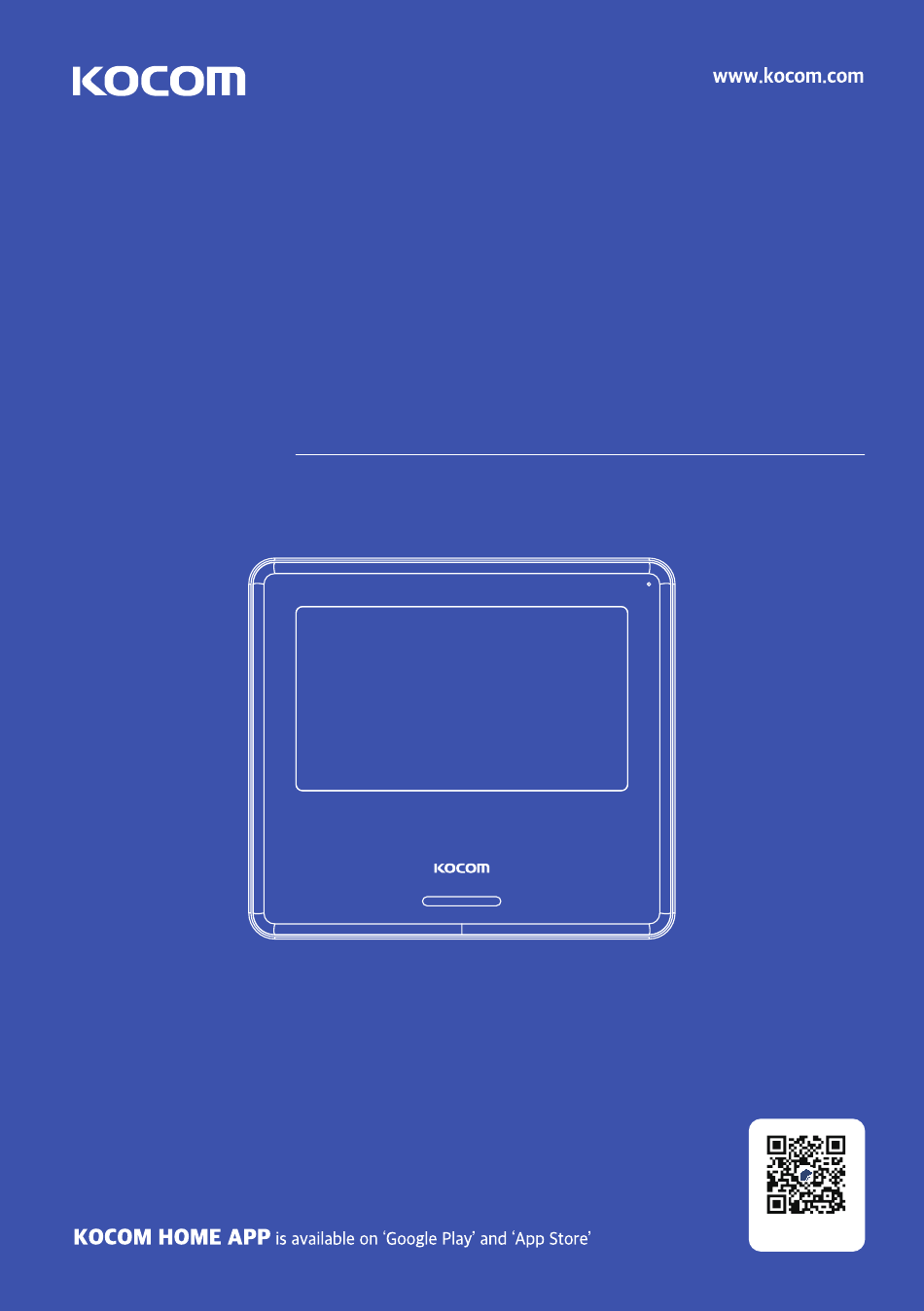

U S E R
M A N U A L
SMART
IP VIDEOPHONE
KCV-S701IPOE
Thank you for purchasing our product.
Read safety instructions and manual
carefully before using the product.
APP Download

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCV-S701IPOE and is the answer not in the manual?

Questions and answers

Summary of Contents for KOCOM KCV-S701IPOE

  • Page 1 U S E R M A N U A L SMART IP VIDEOPHONE KCV-S701IPOE Thank you for purchasing our product. Read safety instructions and manual carefully before using the product. APP Download...
  • Page 2: Cautions For Safety

    Cautions for safety For safe use, please stick to the following cautions. ·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center.
  • Page 3 Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
  • Page 4: Installation Location

    Installation location ■ Monitor installation location ■ Camera installation location ·Standard monitor installation height ·Camera installation in height Standard is about 1,500mm where screen camera installation height is when center is at eye level. lens is about 1,400mm above the floor. In this case, wall-hanging metal In this case, camera stack center center (center of piping) is 1,450mm...
  • Page 5: Components Of Product

    Screws for fixing hanger Lench 2.5M/M 1EA body on the wall frame body on the wall M3X8mm 1EA 4X50mm 2ea Specifications Model No. KCV-S701IPOE Power Source PoE DC48V (IEEE 802.3af) Power Consumption 3W(±20%)(Stand by), 7W(±20%)(Full load) Operating Temperature 0℃ ~ +40℃ Monitor 7"...
  • Page 6 Name and Functions of Each Part ■ Monitor ·Left side ·Front ·Back ① MIC ② LCD ③ Speaker ④ Power Switch ⑤ Terminal ⑥ RJ-45 Connector ■ Door Camera (KC-S81MPOE) ·Front ·Back Door camera + Sun Visor (Option) B. Camera 1/2 Selection switch ①...
  • Page 7: Product Connection Diagram

    Product Connection Diagram ■ SYSTEM Block Diagram IP CCTV 1 WiFi (2.4GHz) Mobile phone IP CCTV 2 Internet CLOUD SERVER DOOR CAMERA 1 DOOR CAMERA 2 UTP CAT5E 2 Wire Sensor 1 Sensor 2 ■ Terminal MONITOR DOOR CAMERA A. Sensor 1, 2 Mobile phone (non polarity) ·Back...
  • Page 8: Instructions For Operation

    Instructions for Operation ■ Booting Booting Screen Home Screen Booting screen is shown when you turn on power switch located on the left. After 15 seconds, and then booting is completed. After that, screen is home screen. ■ Home Screen UI - Home screen is the start screen where all functions of the product can be run.
  • Page 9 Instructions for Operation ■ Setting Menu Screen ① ② ③ ④ ⑤ ① General setting ② Sound setting Device ID : Setting monitor's ID. Sound item : Camera 1, Camera 2, Device APP : Smartphone APP connection settings. Calling Volume : 1 ~ 6 Time Setting : System time setting.
  • Page 10 ④ Other setting Screen Brightness : You can adjust the brightness of the display PIN password change (Default Password : kocom) Modify PIN : Enter the PIN number to release the crime ※Caution : You must know the changed PIN number.
  • Page 11 ⑤ Reset When you select "YES", then factory mode will be activated. (Except selected language) ■ App download, Specification of Smart Phone and Network Search "KOCOM Home" in Play Store(Android) or App Store(iOS). Item Description Recommended Spec Andriod 8.0 version or higher.
  • Page 12 Instructions for Operation ■ Network Setting (Smart Phone) - Please proceed the following steps when the KCV-S701IPOE monitor's menu screen is on. While proceeding the registration steps, please click the menu button to keep the screen on . The "APP" button must be activated in the When you select the QR code, the QR code for General setting.
  • Page 13 ' (Add devi c e). recognized automatically and press 'Add'. ※ To register a videophone in the 'KOCOM HOME' app, your smartphone must be connected to the same Wi-Fi router. ■ Call in KOCOM Home APP ① Image of visitor ②...
  • Page 14 Instructions for Operation ■ Door open in KOCOM Home APP To check more menu, Activate the door open Tap the key shape icon. Press "Confirm" to approve press ' ' button. button pressing ' the door opening.
  • Page 15: How To Operate

    How to Operate ■ Calling from Outdoor Camera - When calling from the outdoor camera, you can see the image of visitors, make a call, and open the door. Press the call When calling to the monitor, you will see When pressing end button while talking with button to make visitor's image.
  • Page 16 Instructions for Operation ■ CCTV Monitoring With the CCTV connected, press CCTV button from the call screen, then CCTV can be monitored. ※ NOTICE : Some CCTV may have compatibility issues, so the image won't be displayed well.
  • Page 17 How to Operate ■ Extension Calling & Receiving Function - In case of extended monitors, you can perform extension calling. To perform extension calling, you MUST set each device's numbering at the "Setting" From ID #1 to #4 is available to register, you MUST register in order. When pressing extension call Whole devices calling or each calling is When the connection with calling...
  • Page 18 How to Operate ■ To View Screen Captured Images Press image view button at the home screen, Click the image and the selected will be displayed. then the screen for captured images lists will be Press , you will delete the selected image displayed.
  • Page 19 Memo...
  • Page 20: Warranty Card

    2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
