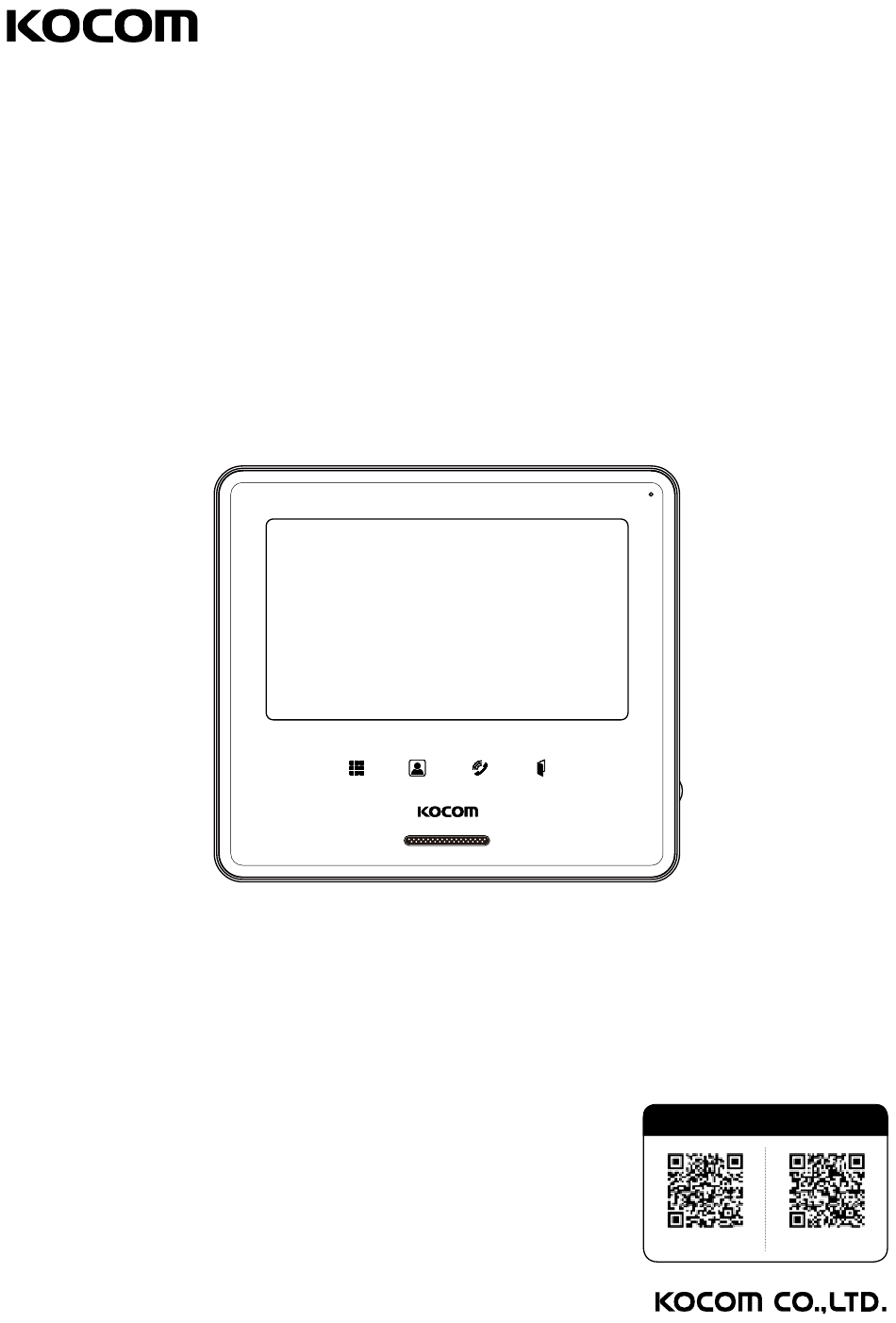

KCV-S701IP MANUAL

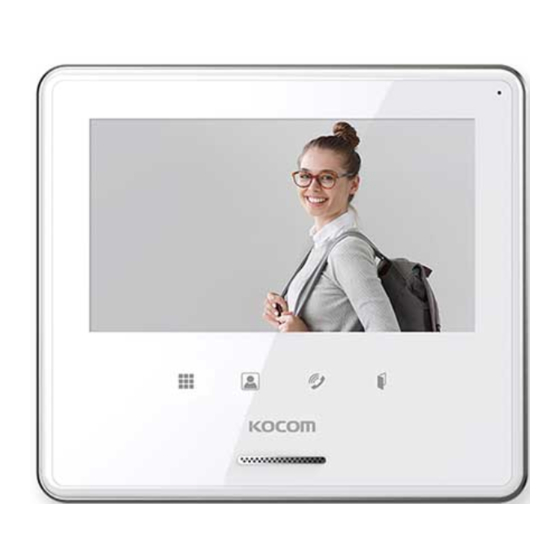

COLOR HANDSFREE IP VIDEOPHONE
7" Color digital LCD monitor
■
Call & communication with visitors
■
Receive instant notifications to your smartphone through
■
WiFi & Ethernet in local and remote places
Video and audio monitoring of the camera(s)
■
Operating condition display with icons (OSD)
■
Door opening function
■
[ 7" Color Digital LCD Monitor ]
www.kocom.com
Smartphone APP Download
Android
i-OS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KCV-S701IP
Summary of Contents for KOCOM KCV-S701IP
- Page 1 KCV-S701IP MANUAL [ 7" Color Digital LCD Monitor ] COLOR HANDSFREE IP VIDEOPHONE 7" Color digital LCD monitor ■ Call & communication with visitors ■ Receive instant notifications to your smartphone through ■ WiFi & Ethernet in local and remote places Video and audio monitoring of the camera(s) ■...
-
Page 2: Cautions For Safety
Cautions for Safety For safe use, please stick to the following cautions. ·Please, keep this manual after reading these instruction carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need any assistance in terms of system set-up or operation, please contact your local service centre The important marks in the manual. -
Page 3: Cautions For Use
Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like. -
Page 4: Installation Location
Installation Location ■ Monitor Installation Location ■ Camera Installation Location ·Standard monitor installation height ·Camera installation in height standard is about 1,500mm where screen camera installation height is when center is at eye level. lens is about 1,400mm above the floor. In this case, wall-hanging metal In this case, camera stack center center (center of piping) is 1,450mm... -
Page 5: Components Of Product
Screws for fixing hanger Lench 2.5M/M 1EA body on the wall frame body on the wall M3X8mm 1EA 4X50mm 2ea Specifications Model No. KCV-S701IP Power Source DC 12V-1A Adaptor Power Consumption 3.5W(±20%)(Stand by), 9W(±20%)(In load) Operating Temperature 0℃ ~ +40℃ 7" color LCD... -
Page 6: Name And Functions Of Each Part
Name and Functions of Each Part ■ Monitor ·Left side ·Front ·Right side ·Back ① MIC ⑥ Call button : Connect talk with the door camera ② LCD ⑦ Open door button : Open the Door ③ Speaker ⑧ Power Switch ④... -
Page 7: Product Connection Diagram
Product Connection Diagram ■ System Block Diagram ·Ethernet System MONITOR DOOR CAMERA Ethernet Internet CLOUD SERVER Mobile phone ·WIFI System MONITOR DOOR CAMERA Mobile phone Internet CLOUD SERVER ■ Terminal ※ UTP CAT.5 wiring is used as shown in the following A. -
Page 8: Instructions For Operation
Booting Screen Model name displayed Screen Booting screen is shown when you turn on power switch located on the left. After 30 seconds, model name(KCV-S701IP) is shown and then booting is completed. After that, screen is turned off. ■ Network Setting When used with wired switching hub(router) 1) IP addressing should be set in DHCP. - Page 9 Also, Bluetooth WIFI registration and your phone registration are possible while KCV-S701IP monitor's screen is on. Therefore, please proceed the following steps when the KCV-S701IP monitor's menu screen is on. While proceeding the registration steps, please click the menu button to keep the screen on To set WIFI mode of wireless AP at KCV-S701IP, you must install APP called "KOCOM SMART HOME"...
- Page 10 BLE device. MENU 1. Speakin Volume 2. Call Volume KCV-S701IP reboots automatically after WiFi is completely set up. 3. Calling Times 4. Open Time Icon showing WiFi normal connection is seen when pushing 5. SIP Push Time 6.
- Page 11 ■ Call in KOCOM Smart Home APP When your phone registration to KCV-S701IP is done, you can open the door or perform visual communication with visitors through your phone's APP. NOTICE: Depending on network transmission speed and condition, the video or voice could be disconnected To check recommended network condition and phone's specification, please refer to page 9 "APP download, Specigfication...
-
Page 12: Icon Description
Instructions for Operation ■ Icons for Status of Server and Connection is Shown in Menu Screen Icon Description Ethernet connection error. Check the status of the network. Smartphone cannot be connected at this status. Ethernet connected Wi-Fi connected Cloud server connected Cloud server connection error. - Page 13 Instructions for Operation ■ Communication from Door Camera & Door Open Press the call button Idenitify the visitor from Push the [Talk] button While `Talk` on. Push to make a call monitor. and communicate with [Door Open] and the door (Standby time : 30sec) the door camera.
-
Page 14: Menu Setup
AUTO , PAL, NTSC Video setting Language ENGLISH, Espanol, Russia Select language BLE SSID KOCOM-KCV-701IP-2000F2 BLE SSID for the product Request an Authentication Code Receive an authentication code to register Smart phone server Smartphone Number Search registered Smart phone number... - Page 15 Memo...
-
Page 16: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
