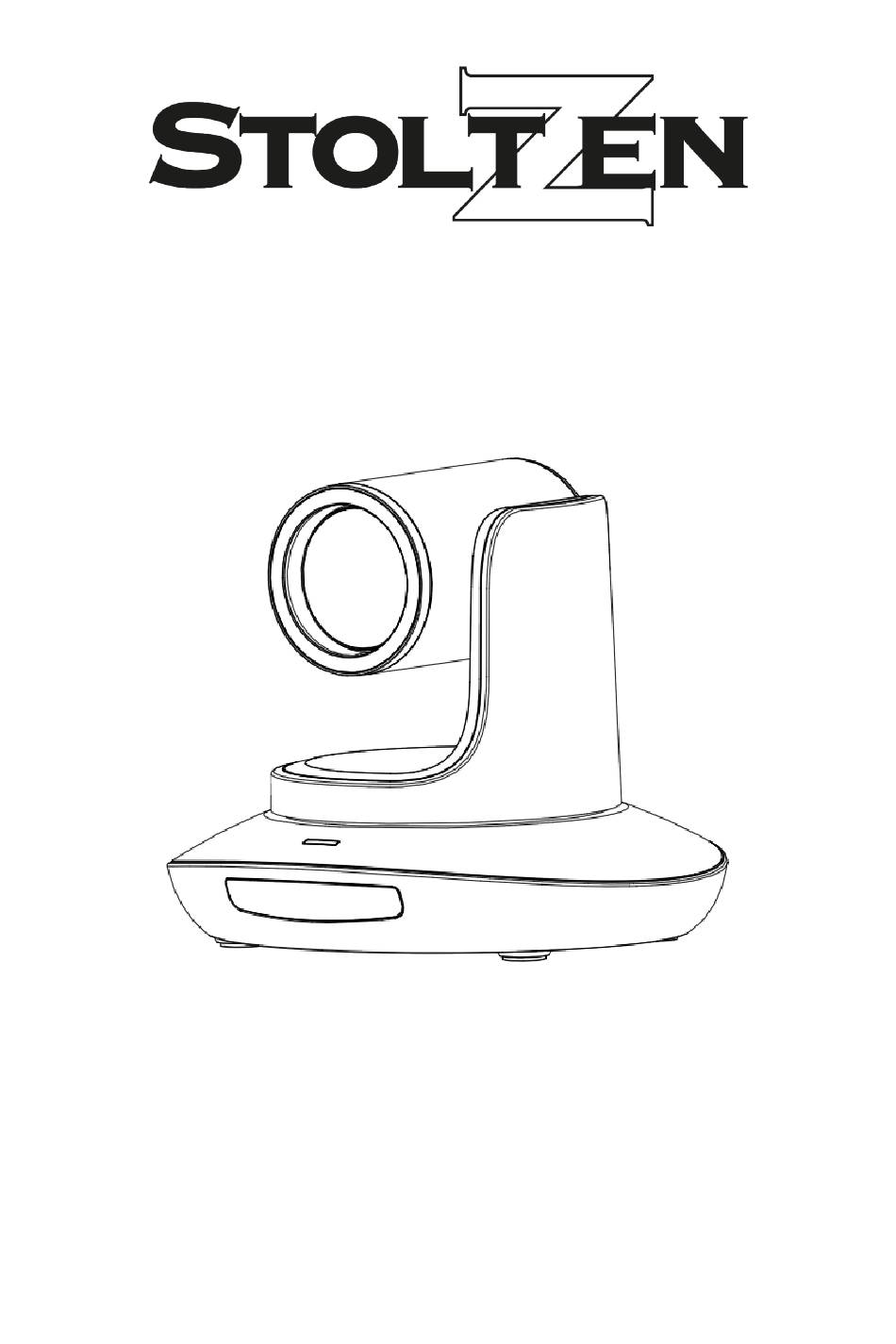

  • Page 1 PTZ3000 User Manual Version V1.0 （English）...

  • Page 2: Table Of Contents

    CONTENT CONTENT ........................1 SAFETY GUIDES ......................2 PACKING LIST .........................3 QUICK START ........................3 PRODUCT HIGHLIGHTS ....................4 CAMERA INTERFACE ......................6 VISCA IN （RS232 PORT） ...................9 PELCO-D PROTOCOL COMMAND LIST ................. 17 PELCO-P PROTOCOL COMMAND LIST ................. 18 WEB SETTING ....................... 23 USING VCL TO VIEW RTSP/RTMP VIDEO ..............27 VISCA OVER IP ......................

  • Page 3: Safety Guides

    SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A.

  • Page 4: Packing List

    PACKING LIST Check all bellow items when open the package: Camera ············································································································· 1 Power Adapter ·································································································· 1 Power Cable······································································································ 1 RS232 Control Cable ························································································· 1 USB3.0 Cable ···································································································· 1 Remote Controller ···························································································· 1 User Manual ····································································································· 1 Double-sided Adhesive ····················································································· 1 QC certification ·································································································...

  • Page 5: Product Highlights

    PRODUCT HIGHLIGHTS • Adopts most advanced ISP, 1/2.8-inch 5MP sensor, providing full HD video resolution and crystal clear image. • High end 20x optical zoom lens with 60-degree field of view. • IP, HDMI, 3G-SDI, USB video outputs interface, fit for different application •...
  • Page 6 Sensor 1/2.8” 5MP CMOS sensor Zoom F4.9～98mm(20X), F1.5 – 3.0, View Angle:60°(Far)-3.2°(Near) Rotation Angle Pan: -170° ~ +170°; Tilt: -30° ~ +90° Rotation Speed Pan: 0°~120°/s ; Tilt: 0°~80°/s Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1° Control Port RS232、RS485(optional)、RJ45 (VISCA over IP)、USB3.0(UVC1.5) Network Speed 1000M Video encode...

  • Page 7: Camera Interface

    CAMERA INTERFACE 1.Camera Lens 6. Tripod Screw Hole 10. HDMI port 2.Camera Base 7. Installation Hole 11.3G-SDI port 3.IR Receiver Panel 8. RS232 control port (input) 12, USB port 4.Power Indicator Light 9. RS232 control port(output) 13, RJ45 port 5.Dial Switch 14.
  • Page 8 IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE （Not Supported in USB）...
  • Page 9 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD.

  • Page 10: Visca In （Rs232 Port

    VISCA IN （RS232 PORT） V_IN V_OUT VISCA IN RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Camera VISCA IN Windows DB-9 Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:...
  • Page 11 SERIAL PORT CONFIGURATION Parameter Value Parameter Value Baud rate 2400/4800/9600/115200 Stop Bit 1bit Start Bit 1 bit Check Bit None Date Bit 8 bit VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed.
  • Page 12 Command type function command Separate Mode 81 01 04 36 01 FF Separate with optical zoom control Stop 81 01 04 06 00 FF Enable In separate mode Tele (Variable) 81 01 04 06 2p FF Enable In separate mode Wide (Variable) 81 01 04 06 3p FF Enable In separate mode...
  • Page 13 Command type function command Manual 81 01 04 39 03 FF Manual Control mode Shutter Priority 81 01 04 39 0A FF Shutter Priority Automatic Exposure mode Iris Priority 81 01 04 39 0B FF Iris Priority Automatic Exposure mode Bright 81 01 04 39 0D FF Bright Mode (Manual control)
  • Page 14 Command type function command Corresponds to 0 to 9 on the Remote 8x 01 04 3F 01 0p FF Commander Recall 8x 01 04 3F 02 0p FF 8x 01 04 61 02 FF CAM_LR_Reverse Image Flip Horizontal ON/OFF 8x 01 04 61 03 FF 8x 01 04 66 02 FF CAM_PictureFlip Image Flip Vertical ON/OFF...
  • Page 15 Command type function command CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 AB 0p 0q 0r 0s 0m 0n 0x Set ip to :pq.rs.mn.xy IP set 0y FF 8x 01 04 AC 0p 0q 0r 0s 0m 0n 0x Set mask to :pq.rs.mn.xy IP address control Mask set...
  • Page 16 Part 3 Camera Control Command Command type command return note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusModeInq...
  • Page 17 y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF VideoSystemInq(Telycam) 8x 09 06 23 FF y0 50 pp FF pp: Video format VideoSystemInq(Sony) 8x 09 04 24 72 FF y0 50 0p 0p FF pp: Video format y0 50 02 FF IR_Transfer...

  • Page 18: Pelco-D Protocol Command List

    PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 19: Pelco-P Protocol Command List

    Query Tilt Position Value High Value Low 0Xff Address 0x00 0x5B Response Byte Byte Query Zoom Position 0Xff Address 0x00 0x55 0x00 0x00 Query Zoom Position Value High Value Low 0Xff Address 0x00 0x5D Response Byte Byte PELCO-P Protocol Command List Function Byte1 Byte2...
  • Page 20 OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2, After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options.
  • Page 21 Optional： AUTO、 INDOOR、 OUTDOOR、 MANUAL、 OUTAUTO、 SODIUM WB MODE Default：ATW LAMP AUTO 、SODIUM LAMP R GAIN Red gain level: 0~255, only valid under manual white balance mode. Default：AUTO IMAGE B GAIN Blue gain level:0~255 , only valid under manual white balance mode Default：AUTO DEFOG OFF, 1~15...
  • Page 22 720P50 720P30 720P25 Return CAM RESET Reset camera parameter to default RESET PTZ RESET Reset pan/tilt parameter to default ALL RESET Reset all parameter to default RETURN Return to the previous menu CONTROL VER Camera control firmware version CONTROL DATE Camera control firmware releasing date FORMAT Current video output formate...
  • Page 23 UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3．Make sure the interval of video format switching more than 3 seconds, otherwise black video maybe caused.

  • Page 24: Web Setting

    WEB SETTING Download and install Flash Player When visit IP camera via Internet Explore browser the first time, need to install Flash Player, we suggest user download it from flash official website to get latest version: https://www.flash.cn/english after installation, we will be able to see bellow via PC’s Programs and Features Control Panel: Login Run browser, input IP address( defaulted IP address is 192.168.1.188), to enter login interface, can select Language (Chinese or English), input admin and password to login as following:...
  • Page 25 Preview interface as above image, on the right side, there are options to control camera pan, tilt, zoom, focus, presets, focus speed, zoom speed can be set. On the top of the image, main stream and sub stream preview can be selected, image width&height rate can be selected, and full size view can be selected.
  • Page 26 White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). Image Setting includes brightness, sharpness, contrast, saturation Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet”...
  • Page 27 “Firmware upgrade”: it is for camera program upgrade, currently only for ISP part update. How to update: As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 5 min when upgrade finished. Then login web end to select “reset all”...

  • Page 28: Using Vcl To View Rtsp/Rtmp Video

    Account Setting: is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login. Using VCL to view RTSP/RTMP Video Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub Default RTMP main streaming address: rtmp://192.168.1.188:1935/app/rtmpstream0...

  • Page 29: Visca Over Ip

    VISCA over IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec: Control port: RJ45 Gigabit LAN  IP protocol: IPv4  Transmit protocol: UDP ...
  • Page 30 Note: LAN output way is big-endian, LSB is in the front. Payload type: Data definition as following: Name Value (Byte 0) Value (Byte 0) Value (Byte 0) VISCA command 0x01 0x00 Stores the VISCA command. VISCA inquiry 0x01 0x10 Stores the VISCA inquiry. Stores the reply for the VISCA command and VISCA VISCA reply 0x01...
  • Page 31 Save VISCA return packet VISCA device setting command  Save VISCA equipment setting command packet. Control command  The following data is saved in control command payload Controlled reply  The following data is saved in return command payload of control command. Delivery confirmation VISCA over IP uses UDP as transmission communication protocol, UDP communication message transmission is not stable, it is necessary to confirm delivery and resent in application.
  • Page 32 Sequence chart as following Sequence chart when returned message lost Sequence chart when command lost Note: Do not set IP address, subnet mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
