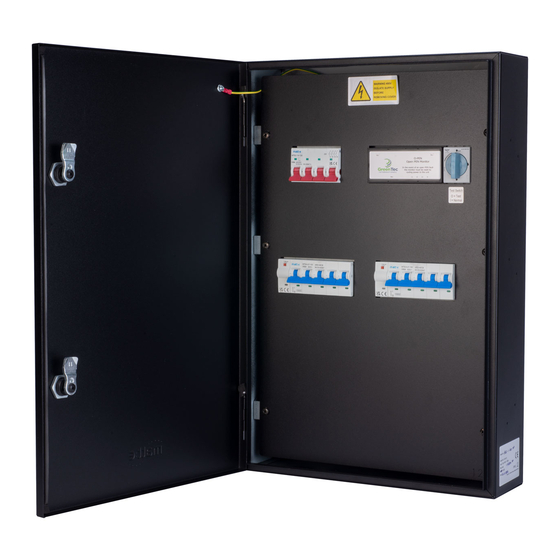

- Page 1 Electric Vehicle Charger Connection Unit ARD-1-100TP Installation Manual V1.0 Oct 2021...
-
Page 2: Table Of Contents
ARD-1-100TP EV Charger Connection Unit Contents Product Description Warning Notice Safety Advice Introduction Dimensions & Mounting the unit Electrical Connections Operating Instructions Test Function Specifications Warranty Declaration of Conformity PRODUCT ADVISORY NOTICE This product must be installed by a competent person in accordance with the IET Wiring Regulations, BS7671 (18 Edition or later) and current Building Regulations. -
Page 3: Product Description
The unit must be installed in a dry ventilated location; it must never be covered or have restricted ventilation. The ARD-1-100TP unit is rated for a maximum 100A. For any information not contained within this document, please contact our technical support team on 01543 227290 or info@matt- e.co.uk. -
Page 4: Introduction
ARD-1-100TP EV Charger Connection Unit Introduction matt:e range of Electric Vehicle Charger Connection Units are fitted with O-PEN technology designed to protect Electric Vehicle Charging equipment when installed onto 3 phase PME infrastructures. The unit incorporates two 5 pole isolators with a built-in under-voltage release mechanism. -
Page 5: Dimensions & Mounting The Unit
ARD-1-100TP EV Charger Connection Unit V1.10 P a g e... - Page 6 ARD-1-100TP EV Charger Connection Unit V1.10 P a g e...
-
Page 7: Electrical Connections
ARD-1-100TP EV Charger Connection Unit Electrical Connections The user wiring connections are indicated in the diagrams below. V1.10 P a g e... - Page 8 ARD-1-100TP EV Charger Connection Unit Connect the incoming cable from the distribution board directly to the 4 pole isolator. The CPC should be connected to the terminal block Connect the outgoing cable and CPC to the terminal blocks. THIS PRODUCT IS DESIGNED FOR AN ISOLATED EARTHING ARRANGEMENT.
-
Page 9: Operating Instructions
ARD-1-100TP EV Charger Connection Unit Operating Instructions With the incoming isolator closed the unit will monitor the incoming supply. If no fault condition is present approximately 1 second after closing the incoming isolator the O-PEN monitor will energise the under-voltage release mechanism of the 5 pole isolator (indicated by the green LED illuminating). -
Page 10: Specifications
16 mm 50mm tightening torque 5.6Nm 5.6Nm Warranty The ARD-1-100TP unit is guaranteed for a period of 1 year from the date of manufacture. This warranty is limited to the replacement of faulty components only. t: 01543 227290 e: info@matt-e.co.uk www.matt-e.co.uk... -
Page 11: Declaration Of Conformity
ARD-1-100TP EV Charger Connection Unit EU Declaration of Conformity (DoC) Ref : EVCC-32/63/100-2021 Company name: matt:e Ltd Postal address: Unit 5 Common Barn Farm Tamworth Road City Lichfield Postcode: WS14 9PX Telephone number: 01543-227290 E-Mail address: info@matt-e.co.uk Declare that this DoC is issued under the sole responsibility of the manufacturer.
