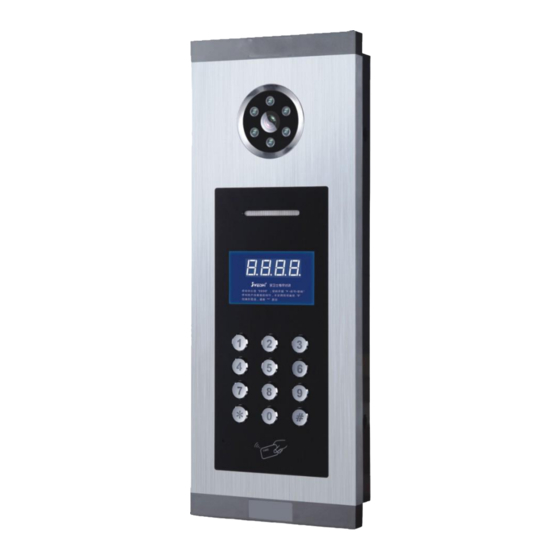

- Page 1 Apartment video door phone...
-
Page 2: Table Of Contents
In Multi-apartment System Contents Preface ....................1 1 Parameter ...................2 2 Instruction ....................2 2.1 Outdoor Station ................4 2.2 Indoor Unit ..................7 2.3 Distributor..................9 2.4 Power Supply .................10 2.5 Multi-entrance Controller ..............10 3. Wiring Diagram .................11 4. System Setting .................12 4.1 Setting ISN Code ................12 4.2 Setting Room Number ..............15 4.3 Setting Building Number and Unit Number ........15 4.4 Setting of Gate Entry Station ............17... -
Page 3: Preface
In Multi-apartment System Preface Thank you for using our products. Hope our products and services can bring convenience and happiness to your life. This is video door phone for villa, single family house, single apartment. 1) Connect with CAT 5e ( UTP—Unshielded Twisted Pair ) 2) CAT 5e transmit audio signal, RS487 communication, video signal. -
Page 4: Parameter
In Multi-apartment System 1. Parameter Installation Flush-mount Voltage DC12V±10% (Working) Outdoor Station Current ≤650mA (Working); ≤150mA (Standby) Installation Wall-mount Voltage DC18V±10% (Working) Indoor Unit Current ≤ 300mA (Working); ≤20mA (Standby) Connection: CAT5e / Cat6 Cable ( normal network cable ) Wiring requirements Power line : RVV2 * 0.75... - Page 5 In Multi-apartment System Features: ※ Waterproof: IP54 ※ Aluminium alloy and acrylic panel ※ Unlock by ID cards & password ※ English Voice Prompt Functioned ※ 2-way audio and video intercom ※ Suitable for Multi-apartment ※ Suitable for Digital system ※...
- Page 6 In Multi-apartment System Noted: (1) Do not shake, collide, smash, punch the device; (2) Do not install the Outdoor Station in the following places: ※ Under long-time sunshine; ※ 40 Fahrenheit; ※ Under long-time snow and frost; ※ Dusty; (3) When electrified, if there is any unexpected situation happened, please cut off power immediately until the fault is removed.
-
Page 7: Indoor Unit
In Multi-apartment System Installation requirements (1) Match the fix hole in the wall and the fixing box. If the outdoor station is embedded in the wall, in order to prevent the expansion of cement, please make the hole in wall or door is bigger( 5mm) than the box. (2) Put the bottom box fixed in the hole of the door or wall. - Page 8 In Multi-apartment System : Send the information to the Guard Station ) Call Guard Station button : Answer call Operation introduction A. One Outdoor Station is compatible to 4 indoor units at maximum. When calling for indoor unit, all the indoor unit ring at the same time. The others stop ringing after picking up one of the indoor unit.
-
Page 9: Distributor
In Multi-apartment System brightness; “Unlock Door” button represents add brightness. Failure analysis and troubleshooting Failure Inspection object Troubleshooting Check whether the connecti Connect power lines Can not call & be on of indoor units’ power correctly to make the light’s called lines is good ring... -
Page 10: Power Supply
In Multi-apartment System ② : US1, connect to indoor unit NO.1 ③ : US2, connect to indoor unit NO.2 ④ : US3, connect to indoor unit NO.3 ⑤ : US4, connect to indoor unit NO.4 ⑥ : Output, connect to the next distributor. ⑦：Input , connect to outdoor station. -
Page 11: Wiring Diagram
In Multi-apartment System In calling : The outdoor stations can not make a call at the same time. When a outdoor station is calling, the others is locked. (3) Interface: Connect No.1 interface to the main outdoor station. Please see page 27and Figure 12. 3. - Page 12 In Multi-apartment System Remark: (1) Suitable for one building. (2) If there are more than one building managed by management center, please see Figure 9, Page 14. (3) Please connect power supply to 220V( Alternating Current/ AC ).
-
Page 13: System Setting
4. System Setting 4.1 Setting ISN Code 3 buttons “HIGH”, “CEN”, “LOW” on the distributor. Press different button, means different code. 4.1.1 Switch on outdoor station, press “ HIGH” button and hold on about 5s. LED light flashes 2 times and then releases it. It is in decoding state. 4.1.2 Press “... - Page 14 4-Port Distributor ISN Code Chart: ISN Code of indoor unit HIGH Weight ISN Code Weight ×4 Distributor No press on 0× 4 LOW key One Press on 1× 4 LOW key Two Press on 2× 4 LOW key 3 Press on 3×...
- Page 15 6-Port Distributor ISN Code Chart: ISN Code of indoor unit HIGH Weight Weight Code ×4 No press on LOW key One Press on LOW key Two Press on LOW key 3 Press on LOW key Four Press on LOW key Five Press on LOW key Six Press on...
-
Page 16: Setting Room Number
4.2 Setting Room Number This process is operated at Outdoor Station. (1) Set ISN code of each indoor unit according to the < 4-Port Distributor ISN Code Chart > and < 6-Port Distributor ISN Code Chart >. (2) Press “ ##923132008 ” continuously on Outdoor Station’s keyboard, then the display shows “... - Page 17 “ +10 ” “ +1”. “ +1000 ”“ +100 ” : the Building No; “ +10 ” “ +1”: the Unit No. Setting as below: (1) Cut the power off. (2) Keep pressing “ +1000 ” button and then switch on the Network Cable Converter;...
-
Page 18: Setting Of Gate Entry Station
4.4 Setting of Gate Entry Station 1) Enter “ ##92702689 ” on the keyboard to get into the setting process; (2) Enter 4-digit number (The range ISN code of Gate Entry Station are 0001~9999. Enter “ 0001 ”: the NO.1 Gate Entry Station in community.) (3) Press “#”... -
Page 19: Setting Unlock Password
3, 4 security zone. If these lights are flashing, there are abnormal conditions happened in 5, 6, 7, 8 security zone. (2) A. NO.1.2.3.4 Security zone: Connect to emergency button, smoke sensor. You do not need to set up and they are in armed status in 24 hours. Trigger and give an alarm. -
Page 20: Id/ Ic Card
(1) Call indoor unit from the outdoor station → pick up phone (2) When it is calling, press “ Unlock ” button → hold for 5 seconds → it will show “ L_ _ _ ” on the screen in outdoor station → enter unlock password. (3) After entering, the outdoor station will sound “Di-Di-”... -
Page 21: Remote Control
6.2 Add Card In normal status, swipe the authorized “ Add Card ” → Beep, Beep → Green light flashes → Swipe user cards to add user card (At maximum for 999 cards.) → Beep, Beep → Exit 6.3 Delete Card Swipe the authorized “... - Page 22 ( “ XXXX ” is the initial 4-digit password “ 1234 ” ) 7.2 Add user card Press “ *11# ” → CALL → Green light is on → Swipe cards continuously Press “ *# ” → CALL → Red light is on & green light is off → End 7.3 Add user cards automatically Remark: Change a new card reader and add user cards by themselves.
- Page 23 7.7 Delete all user cards Press “*23#” → CALL → Beep, Beep continuously → The sound stops, complete deleting. 7.8 Normal Open the door Press “ *53# ” → CALL → The green light is on. 7.9 Normally open Press “ *51# ” → CALL 7.10 Reset normally open Press “...
-
Page 24: System Instructions
7.13 Connection of Inserted Card Reader: Figure 7 The connection of Card Reader PS: The above instruction is only applied for inserted ID card reader (No Guard Station). If you are using the inserted IC/ID card reader (With Guard Station), you should refer to another operation manual of access control system. -
Page 25: Gate Entry Station
talking time. If it shows “ BUSY ”, the line of guard station is busy. Dial later. (3) If users at the outdoor station dial the wrong number, press “ * ” to exit. 8.2 System Language (Meaning of System Language on outdoor station’s screen) “... -
Page 26: Guard Station
If it shows “ BUSY ”, the line of guard station is busy. Dial later. Remark: When Guard Station or Gate Entry Station call Indoor Unit, enter the first 3-digit Building No. + 1-digit Unit No. + 4-digit Room Number. (If there are not enough of 3 or 4 digits, add a “0”... -
Page 27: Accessories
And then press “Unlock” → open the door → press “ ” to exit. (4) Receive call from indoor unit: Call comes → Rings → screen shows the indoor unit’s room number → press “ ” to answer. Press “ 1-9 ” to add talking time and press “ ”... - Page 28 ISN code of Network Cable Converter should refer to the range of ISN code of Network Cable Assembly. 11.2 Network Cable Assembly Setting A. ISN code of Outdoor Station “ _000 ~ _049 ” is Building No. in Area A B.
-
Page 29: Warning
Figure 8 The wiring of Network Cable Assembly 12. Warning ※ Avoid sharp dropping or knocking. ※ The image can be illegible for the direct sunshine on the video camera. ※ Do not install the product in a humid place. It may cause an electric shock or a fire. - Page 30 wash the units. It may cause breakdown and electric shock. ※ Do not open the monitor or video camera. ※ Do not put the plug in the socket simultaneously. ※ Do not connect to other products, such as TV etc. It may cause breakdown. ※...
