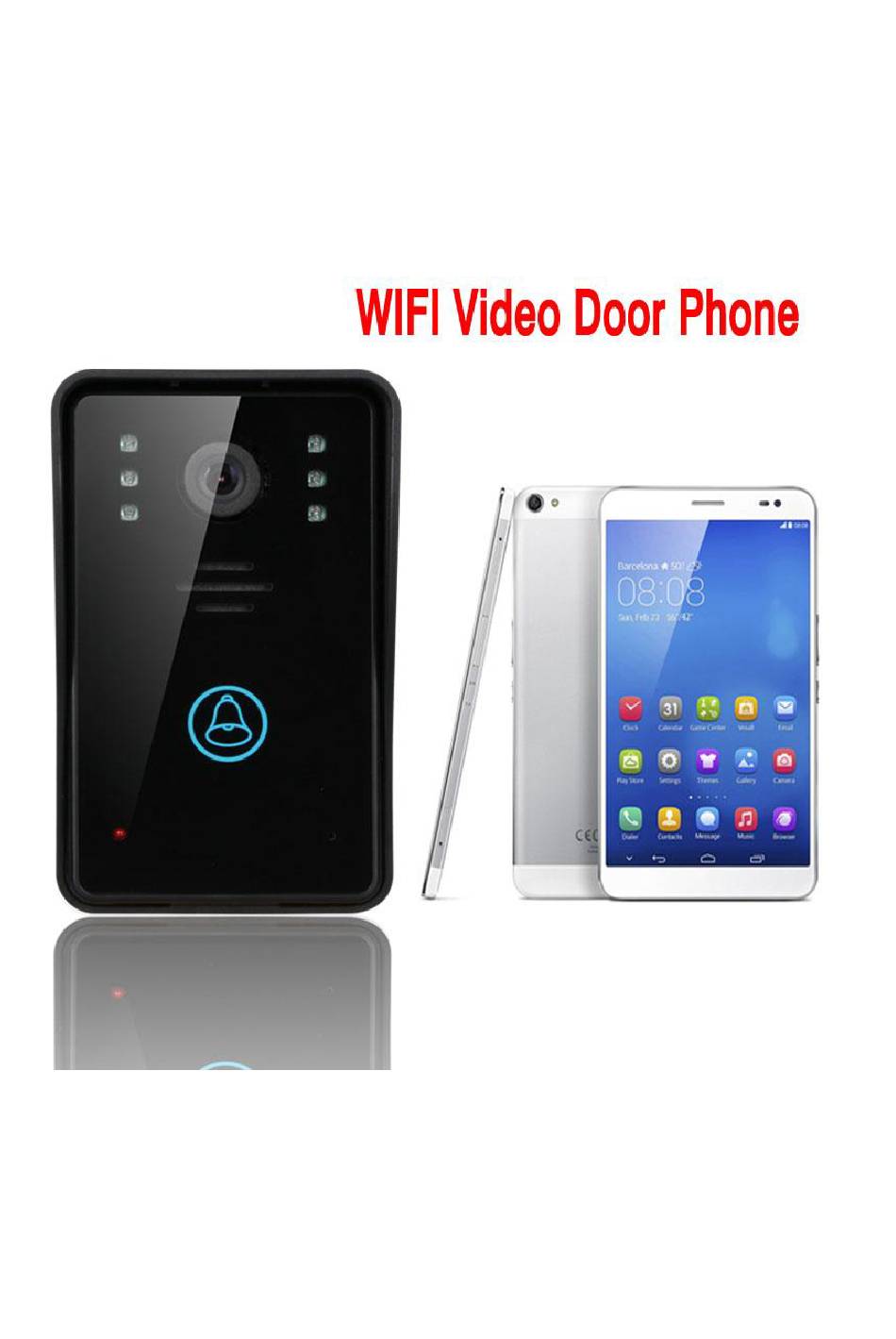

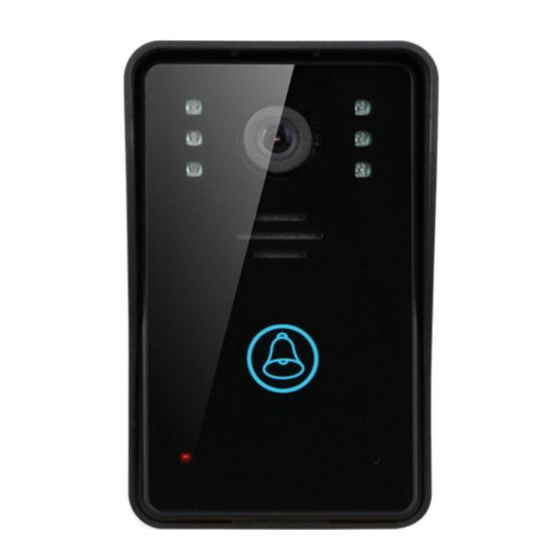

- Page 1 WIFI Video Doorbell PST-WIFI001A User Manual ---------------------------------------------------------------------------------------------------- Please read this user’s guide carefully before using this products...
-
Page 2: Table Of Contents
Catalogue Products Introduction……………………………………………………………1 Products Description……………………………………………………………2 Installation………………………………………………………………………3 E-lock Wire Diagram…………………………………………………………4 Specification……………………………………………………………………5 App Installation…………………………………………………………………6 Hotspot Configuration …………………………………………………………7 Wireless Router Setting………………………………………………………8 Function Setting………………………………………………………………9 Interface ………………………………………………………………………10 Intercom,Monitor,Unlock Setting……………………………………………11 Exit…………………………………………………………………………… 12 Delete User……………………………………………………………………13 Accessories……………………………………………………………………14 Failure Diagnosis………………………………………………………………15 Work environment…………………………………………………………… 16 Notice ………………………………………………………………………… 17 Warranty…….................……………18 Attention:The illustrations in this manual, the screen display, All in order to more directly in detail expound the operation of the products, due to the different version upgrades and production batch, they might a little different from the machine with you, If mentioned in this manual content does not accord with your machine, please refer to our machine 1. -
Page 3: Products Description
8..With IR night vision. 9.Support monitor function through mobile device. 10.Can take photo 11.Can take video(the video file will store on the mobile device) 12.P2P cloud service could push messages of visitor calls、visitor photos and motion detect alarm to mobile device. Device Requirement: 1. -
Page 4: E-Lock Wire Diagram
4. E-lock Wire Diagram: Often open/often atresia lock can connect to outdoor camera directly,don’t need extra power supply,time delay can be set in mobile device APP. 5. Specification: Model PST-WIFI001A Lens 1/4 / F2.4 / 92 degree Pixel 0.3 million... -
Page 5: Hotspot Configuration
7. Hotspot Configuration Connect power supply to start the equipment (start time approx 35 seconds),then heard voice hint: “welcome to the smart phone”，wait for about 35 seconds (sometimes more than 35 seconds),then the calling led will flash quickly,now press the calling button approx 5 seconds,there an voice hints “ enter into the network configuration mode,please complete the network configuration within 5 minutes”... - Page 6 Select "Search" or "Scan Barcode" to get the ID number; click ID "GBELL-XXXXXX",it will automatically fill doorbell ID, non-password; click "Done" back to the main interface.
- Page 7 Current doorbell status “ENNIO BELL” should be online,click “ENNIO BELL” to complete the hotspot connection to enter monitor & intercom interface.Touch “ ” to exit. 8. Connect Router Note: If you are connected via network cable to router,please ignore this step,can enter directly into the APP interface.
-
Page 8: Function Setting
to select the target router,put password,the device will restart, a voice hints “device start Click "WIFI Settings" successful,welcome” after 35 seconds,then click "Online" icon to enter the intercom interface. 9. Function Setting 1. System Setting：Support "Voice prompt", "Configuration Mode", "Monitor max.time (s)", "conversation max.time(s)," "Call Wait max time (s)"... - Page 9 、 After set the new user and password,please input the product ID number (like user、password on the new user’s mobile device,can add 8 users,among users can view each other status, such as user 1 connect, user 2 disconnect, user 3 disconnect etc. 3.
- Page 10 When a visitor press call button or motion detect alarm,all users will receive a push message from doorbell,if any mobile device answers,others will hang up automatically,in “administrator setting”menu can check what a user is monitoring. 4. Alarm Setting：Set alarm status to on/off;Support restore factory settings in this menu;Select PIR,then set the alarm time delay (s).
-
Page 11: Interface
5. lock Control Type： select often open/often atresia and set the time delay(s). 6. Time setting： Set time and time zone,Support synchronize with NTP server 10. Interface Button... - Page 12 1、Photo: Touch “photo”button to take photos,the pictures will store on the mobile device. 2、Press button talk: Touch the “press button talk ”button to talk 3、Video: Touch “video”button to take videos,the video file will store on the mobile device,press it again to stop. 4、End call.
-
Page 13: Intercom,Monitor,Unlock Setting
4、Video: touch this icon to view the video files 11. Intercom, Monitor, Unlock 1.All mobile device will receive the push message from doorbell when a visitor rings or motion detect alarm,answer the doorbell from left to right,or hang up from right to left. 2.Hold the “press button talk”... -
Page 14: Exit
3.Touch the “answer” button to show a unlock icon,then touch this icon to open the door.(Note: Can’t open the door under the monitor state) Touch ,can view the situation of the outdoor,then can talk,photo,video or hang up. 12. Exit system Touch ,it will show bell rings、... -
Page 15: Accessories
Touch ,can delete user.Touch again to back. 14. Accessories 5V 1A Power Supply 1 pc WIFI Outdoor camera 1 pc terminal wire 1 pc unlock wire 1 pc Screws 1 set Tools 1 set 15. Failure Diagnosis 1、 The indicator isn’t on when plug power supply,check the power adapter whether correctly plug into the charging slot? 2、... -
Page 16: Work Environment
16. Work Environment (1) Working temperature -25° C—+50° C (2) Working humidity range: less than 85% 17. Notices (1) The product should be placed where is stable , windy , air-dry, non-sunshine ,non strong magnetic and non-dusty； (2) Don't clean the surface with chemicals but with soft and clean dry cloth； (3) Don’t press several buttons at the same time；...
