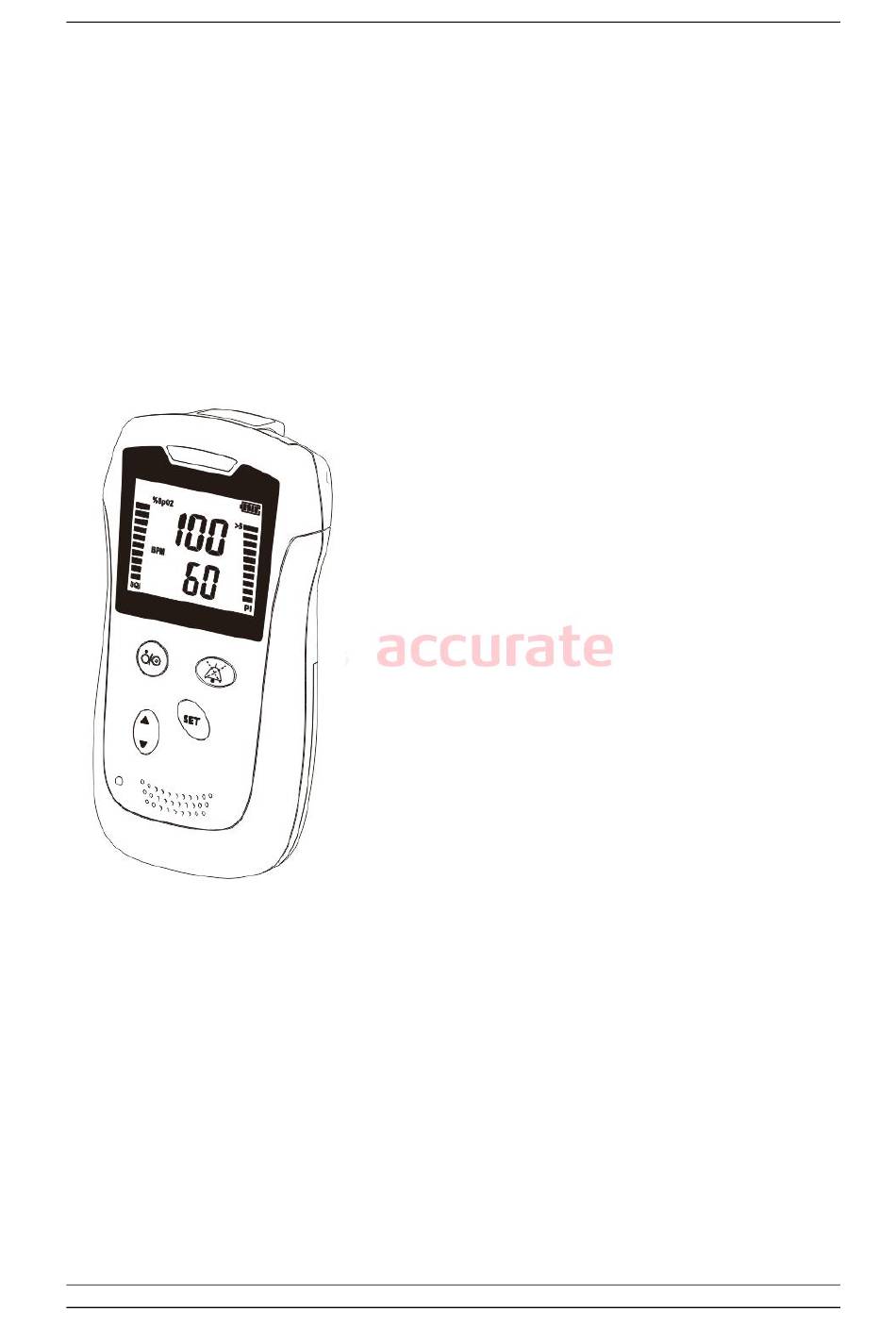

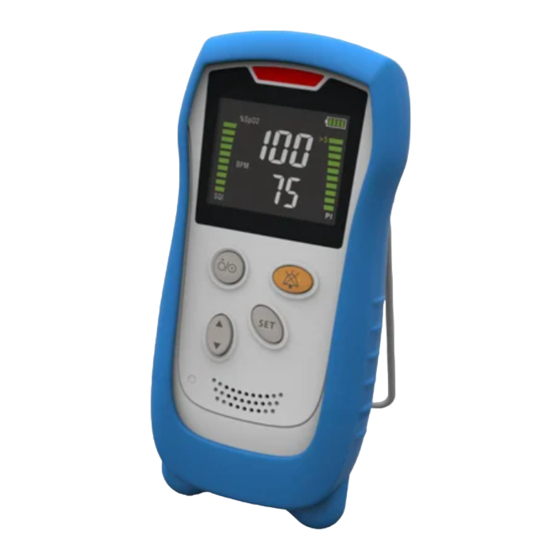

- Page 1 HS10A Pulse Oximeter Operator’s Manual HS10A-03-RDP-004 V4.0 HS10 Handheld Pulse Oximeter OPERATOR’S MANUAL Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 1 / Total 36...
- Page 2 Contents of this manual are subject to change without prior notice. Revision number: 4.0 Release time: 2022-07 © Copyright Hunan Accurate Bio-Medical Technology Co., Ltd. All rights reserved. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 2 / Total 36...
- Page 3 Italic text is used in this manual to quote the referenced chapters or sections. → is used to indicate operational procedures. [ ] is used to enclose screen texts. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 3 / Total 36...
-
Page 4: Table Of Contents
3.3 Power On the Pulse Oximeter .......................15 3.4 Power Off the Pulse Oximeter ...................... 15 4 Basic Operations .............................16 4.1 Adjusting the Pulse Volume ......................16 4.2 Selecting Patient Type ........................16 Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 4 / Total 36... - Page 5 To charge the lithium battery......................23 7.3 Checking The Lithium Battery ..................... 23 7.4 Disposing Of The Batteries ......................23 8 Maintenance and Cleaning ........................24 8.1 Safety Checks ..........................24 8.2 Cleaning ............................24 Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 5 / Total 36...
- Page 6 E.1 Disposable SpO2 Sensor ......................33 E.2 Reusable SpO2 Sensor ......................... 34 F Symbols and Abbreviations ........................34 F.1 Units .............................. 34 F.2 Symbols ............................35 F.3 Abbreviations ..........................35 Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 6 / Total 36...
-
Page 7: Safety
Do not come into contact with the personnel during defibrillation. Otherwise serious injury or death could result. Do not rely exclusively on the audible notice system for personnel monitoring. Adjustment of notice volume to a low level Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 7 / Total 36... -
Page 8: Cautions
It should change the measurement part per 2 hours when user continuing using for detecting. The measured value is best when the pulse rate waveform is smooth and stable after normalization. Data update period: Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 8 / Total 36... -
Page 9: Notes
Auxiliary output connector Notification silence button Setting button Power button Up button Down button Manufacturer Date of manufacture Serial number Type BF applied part, defibrillation protected European community representative Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 9 / Total 36... - Page 10 This symbol indicates that this product should not be treated as household waste. Power supply connector (Only for lithium) Safety Class II equipment (Only for lithium) Charging indicator light (Only for lithium) Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 10 / Total 36...
-
Page 11: The Basics
2.1.9 Validation Generally, after operator turn on the device , and the beep will continue to turn on for 1 second prove that it is working normally . Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 11 / Total 36... -
Page 12: Main Unit
8. Setting button Press this button to enter the main menu. 9. Notice Silence Button Press this button to pause or reactivate the notice sound. 10. Notice indicating lamp Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 12 / Total 36... -
Page 13: Rear View And Right View
2. Cord hole 3. Battery door 2.3 Display Views The following figures show the layout of the normal screen.: 1. SpO area. 2. PR area 3. Notice Information area Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 13 / Total 36... -
Page 14: Spo2 Area
2.3.2 PR Area 1. PR label and unit 5. Pulse rate reading 2.3.3 Information Area 1. Low Signal Quality notice 2. Low Perfusion notice 3. Battery level Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 14 / Total 36... -
Page 15: Getting Started
1. Confirm that the person monitoring is finished. 2. Disconnect the SpO extension cable from the pulse oximeter. 3. Press and hold the Power button for 2 seconds to shut down the device. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 15 / Total 36... -
Page 16: Basic Operations
4.3.1 Setting PR High Alarm Limit To adjust the PR high alarm limit: 1.Press the [SET] button to jump to the [BPM H]. 2.Press the [Up] button and repeat 21 times. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 16 / Total 36... -
Page 17: Setting Pr Low Alarm Limit
3.Press the [Up]/[Down] button,set a value between 88 and (high limit - 1). 4.Press [SET] button quit the SPO2 Alarm Low setting. 5.Press the Power button for 1 second, the menu screen will quickly return to the measurement interface. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 17 / Total 36... -
Page 18: Notices
Medium level notices the lamp slowly flashes yellow. 5.3.2 Notice Tones When a technical or a physiological notice occurs, the pulse oximeter presents different notice tone patterns to match the notice level: Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 18 / Total 36... -
Page 19: Notice Messages
3. Identify the source of the notice. 4. Take proper action to eliminate the notice condition. 5. Make sure the notice condition is corrected. For troubleshooting specific notices, see appendix D Notice Messages. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 19 / Total 36... -
Page 20: Measuring Spo2
Do not use the SpO sensor on a limb where the NIBP cuff is applied. This may result in inaccurate SpO reading due to blocked blood flow during cuff inflation. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 20 / Total 36... -
Page 21: Applying The Sensor
Inappropriate positioning of the SpO2 sensor, or use of incorrect SpO2 Drop of arterial blood flow to unmeaurable level due to shock, anemia, low temperature or vasoconstrictor Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 21 / Total 36... -
Page 22: Battery
Do not run the pulse oximeter using alkaline batteries of different types or capacities at the same time. 7.2.3 Installing the Lithium Batteries 1. Insert the lithium battery in the battery compartment. 2. Close the battery door and push it upwards. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 22 / Total 36... -
Page 23: Charging The Lithium Batteries
WARNINGS Do not disassemble batteries, or dispose of them in fire, or cause them to short circuit. They may ignite, explode, or leak, causing personal injury. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 23 / Total 36... -
Page 24: Maintenance And Cleaning
Before cleaning the equipment, consult your hospital’s regulations for cleaning the equipment. Recommended cleaning agents are: Mild soap (diluted) Ammonia (diluted) Sodium hypochlorite bleach (diluted) Hydrogen peroxide (3%) Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 24 / Total 36... -
Page 25: Disinfecting
Dispose of the pulse oximeter in accordance with local environment and waste disposal laws and regulations. For the disposal of SpO sensor, follow local regulations regarding disposal of hospital waste. Follow local disposal and recycling laws for the oximeter and its components,including the battery,packaging waste. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 25 / Total 36... -
Page 26: Accessories
(kPa) 70 to 106 50 to 107.4 Atmospheric pressure Charger stand Input voltage 100 to 240 VAC, 50/60Hz, 0.2A Output voltage 5 VDC Output current Output power Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 26 / Total 36... - Page 27 0% to 69%: unspecified. Refresh period Averaging time Displayed range 0% to 100% Measurement range 25 to 250bpm Resolution 1 bpm Accuracy ±3 bpm Refresh period Averaging time Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 27 / Total 36...
-
Page 28: B Emc
Transmission power：0dBm Wireless frequency range：2402MHz~2480MHz Hereby, [Hunan Accurate Bio-Medical Technology Co., Ltd.], declares that this [HS10A，HS10A-LI] is in compliance with the essential requirements and other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached. CAUTION Using accessories, transducers and cables other than those specified may result in increased electromagnetic emission or ... - Page 29 (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey , should be less than the compliance level in Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 29 / Total 36...
- Page 30 Test Level (A/m) (Test specifications for (A/m) ENCLOSURE PORT 30 kHz IMMUNITY to proximity magnetic fields) 134,2 kHz Pulse modulation 2.1 kHz 13,56 kHz Pulse modulation 50 kHz Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 30 / Total 36...
- Page 31 802.11 b/g/n, 217 Hz RFID 2450, LTE Band 7 5240 5 100 – WLAN 802.11 Pulse 5 800 modulation 5500 217 Hz 5785 Electromagnetic environment - guidance Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 31 / Total 36...
-
Page 32: C Factory Defaults
This section lists only the most important physiological and technical notice messages. In the tables below, “H” means high, “M” means medium. The “Cause and actions” column gives recommendations to instruct you to troubleshoot the problems. If the problem persists, contact your service personnel. Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 32 / Total 36... -
Page 33: Physiological Notice Messages
AU523-01,AU523-01X Infant(finger/foot) Foam Adhensive SpO2 Sensor AF533-01,AF533-01X Textile Adhensive SpO2 Sensor AU533-01,AU533-01X Adult(finger)/Neonate(foot) Foam Adhensive SpO2 Sensor AF543-01,AF543-01X Textile Adhensive SpO2 Sensor AU543-01,AU543-01X Non-Adhensive SpO2 Sensor AN543-01,AN543-01X Copy Right. Hunan Accurate Bio-Medical Technology Co., Ltd Page 33 / Total 36... -
Page 34: Reusable Spo2 Sensor
