- Page 1 BRISA SOLAR BRISA SOLAR USER’S AND INSTALLER’S MANUAL v2.2 REV. 09/2022...
-
Page 2: Table Of Contents
01. SAFETY INSTRUCTIONS Community (EC) safety standards. 02. AWNING This product complies with Directive 2011/65/EU of the BRISA SOLAR European Parliament and of the Council, of 8 June 2011, on TECHNICAL CHARACTERISTICS the restriction of the use of certain hazardous substances in DIMENSIONS electrical and electronic equipment. - Page 3 01. SAFETY INSTRUCTIONS GENERAL WARNINGS motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. very WARNINGS FOR TECHNICIANS important. Read all instructions carefully before beginning the installation/ usage procedures and keep this manual in a safe place that it can be •...
- Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY • Attach the permanent label for the manual release as close as possible to the release mechanism. • Supplier disclaims any liability if: • Disconnect means, such as a switch or circuit breaker on the electrical •...

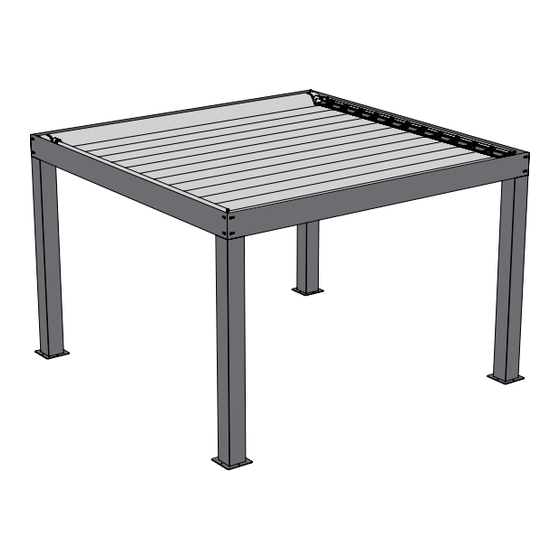

- Page 5 BRISA SOLAR TECHNICAL CHARACTERISTICS The BRISA SOLAR awning is constructed entirely of aluminum, which makes it ideal for covering exterior On the awning you will find the following components: spaces. Solutions for esplanades, terraces or winter gardens. The electrically controlled blades allow light through them, air renewal from the surrounding space or the full water inlet seal.
- Page 6 02. AWNING DIMENSIONS ORIENTATION AND CONSTRUCTION The BRISA SOLAR is an awning for protection When the width, projection or area are greater than the maximums defined, you can group several modules in both width and projection to form a larger awning.
-
Page 7: Installation
03. INSTALLATION FIXING BETWEEN WALLS - DIRECT FIXATION MARKINGS ON APPLICATION PROFILES ON THE WALL Mark the holes in the profiles that will be installed on the wall (see detail A). DETAIL A 90º HOLES IN THE APPLICATION PROFILES ON THE WALL Drill the markings along the profiles with Ø10mm (2A). -
Page 8: Fixing To The Wall And With Legs
03. INSTALLATION FIXING TO THE WALL AND WITH LEGS MARKINGS ON APPLICATION PROFILES ON THE WALL Mark the holes in the profile to be installed on the wall (see detail A on page 6A). HOLES IN THE APPLICATION PROFILES ON THE WALL Drill the markings along the profiles with Ø10mm (2A). -
Page 9: Fixing With Legs
03. INSTALLATION FIXING WITH LEGS ASSEMBLY OF THE FRAME Place all profiles of the frame on the floor, aligned in the correct position for assembly. PROFILE FITTING Apply the sealing silicone to the diagonal faces of the various profiles. The two fixing structure are mounted between the legs and the rear and front profiles, and then 90º... -
Page 10: Blades Assembly
03. INSTALLATION BLADES ASSEMBLY FIX BLADES Fit all the blades into the supports mounted on the side profiles of the frame. Put the blade vertically. Fit the rotating axes of the plastic tops of the blades into the existing frame supports. -
Page 11: Motor Assembly
03. INSTALLATION MOTOR ASSEMBLY The following steps are only carried out on the application side of the motor. FIX MOTOR PROFILE Attach the motor base profile to the side profiles of the frame with self- tapping screws. Do not tighten the screws as far as possible to avoid crushing the rubber. -
Page 12: Led Lighting Kit Assembly
03. INSTALLATION 03. INSTALLATION LED LIGHTING KIT ASSEMBLY MOTOR COVER ASSEMBLY ATTACH PROFILE FIX THE LED LIGHTING TAPE Fit the motor cover profile into the rotational zone of the motor Unwind the LED lighting strip and install it on the framing frieze base section. -
Page 13: Regulation
04. REGULATION LIMIT SWITCHES Turn the desired tuner by only half a turn (180°) in the direction corresponding to the desired setting (see detail A). Test the motor behavior. Adjust and test this way until you reach the desired opening and closing points. -
Page 14: Maintenance
05. MAINTENANCE INSTRUCTIONS FOR WATER DRAINAGE It is important create drainage points in the BRISA SOLAR to avoid accumulation of water inside the frame. Follow the instructions and recommendations below. DRILLING Mark the site where you want to place the drainage hole (Ø50mm), taking into account the dimensions indicated for the option you want: •... -
Page 15: Water Sealing Between Frames
05. MAINTENANCE 06. TROUBLESHOOTING WATER SEALING BETWEEN FRAMES FINAL CONSUMERS AND SPECIALIZED TECHNICIANS INSTRUCTIONS Problems Behavior Procedure This method is only applied when there are two or more awnings leaning against each other, in order to prevent the passage of water between the frames of each awning.
