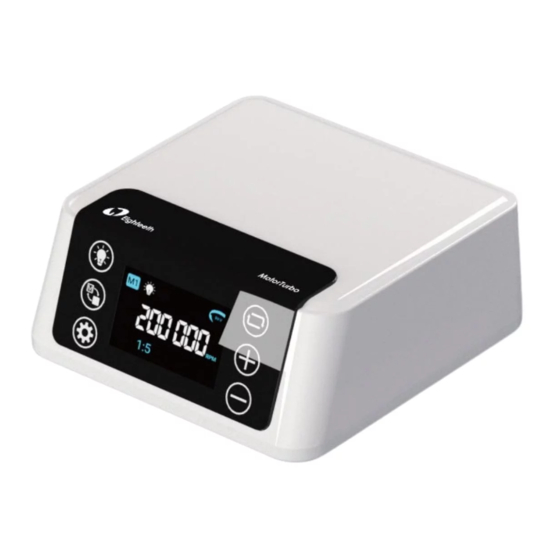

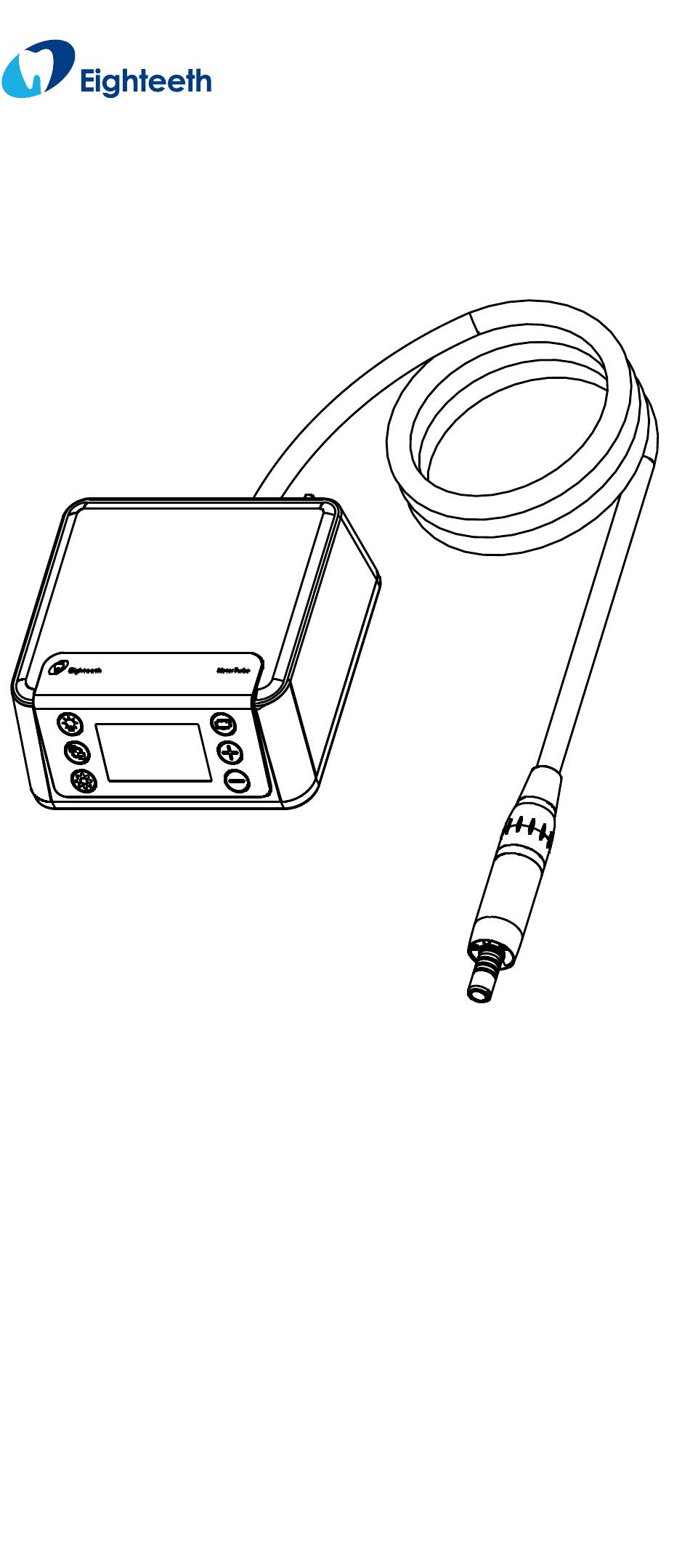

- Page 1 MotorTurbo Dental low-voltage Electrical Motor USER MANUAL Changzhou Sifary Medical Technology Co., Ltd.
- Page 2 P/N: IFU- 6435004 Version: S01 Issued: Oct.15,2021 Size:87mm X 180mm...
-
Page 3: Table Of Contents
3. Before Use ....................6 3.1 Intended Use ..................6 3.2 Contraindications ................6 4. Install and disassemble the MotorTurbo ........... 8 4.1 Connect the host ................8 4.2 Installation and removal of motor ..........8 4.3 Installation and removal of handpiece ......... 9 5. -
Page 4: Scope Of Motorturbo
Scope of MotorTurbo 1. Scope of MotorTurbo 1.1 Parts Identification ① Host ② Motor ③ Power cable ④ Adapter ⑤ Motor disinfection front plug ⑥ Motor disinfection back plug Note: This product does not contain Contra-angle handpiece Components and Accessories... -
Page 5: Symbols Used In The User Manual
2 Symbols used in the User Manual 2. Symbols used in the User Manual If the instructions are not followed properly, operation may lead to hazards for the product WARNING or the user/patient. Additional information, explanation of NOTE operation and performance. Serial number Catalogue number Manufacturer... -
Page 6: Before Use
(including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the MotorTurbo, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. - Page 7 3 Before Use 7. If irregularities occur in the device during treatment, switch it off. Contact the agency. 8. Please use the original power adapter. 9. Do not dismount the motor or contra angle during the operation of the main engine, otherwise the contra angle and motor will be damaged.
-
Page 8: Install And Disassemble The Motorturbo
Install and disassemble the MotorTurbo 4. Install and disassemble the MotorTurbo 4.1 Connect the host Compressed air and water connector Power Power switch connector Motor tail wire Open the package, please make sure if the product contains all accessories according to the packing list, and place the host on a stable surface. -
Page 9: Installation And Removal Of Handpiece
Install and disassemble the MotorTurbo 4.3 Installation and removal of handpiece Motor connector Motor Handpiece O-ring Align the dental handpiece positioning block and the motor groove, insert the motor connector directly into the handpiece, and can hear a "click" sound, indicate a successful connection. -
Page 10: Use Interface
Use Interface 5. Use Interface 5.1 Host operation panel There are 6 touch buttons on the host operation panel , their functions and uses are as follows: ① LED light button ：shortly press to switch the motor LED light state ②... -
Page 11: Terms And Definition
Use Interface (M1, M2, M3, M4). Users can set four common working modes according to their habits. The speed, handpiece transmission ratio, rotation direction and LED status of each working mode can be set individually. It can save automatically after each setting completed. And when open the machine next time, the working mode will be set as last shutdown. -
Page 12: Setting
Setting 6. Setting 6.1 Set mode parameter M1 mode parameter setting (connected to a handpiece with a transmission ratio of 1:5) Set the working mode M1 Set the transmission ratio 1:5 Set rotation direction FWD Set LED light status highlighted Set rotation 200000RPM （rotation range: 10000RPM - 200000RPM，... - Page 13 Setting Set the working mode M3 Set the transmission ratio 16:1 Set rotation direction REV Set LED light status OFF Set rotation 600RPM （rotation range: 100RPM - 2500RPM， step value is 100RPM） M4 mode parameter setting (connected to a handpiece with a transmission ratio of 20:1) Set the working mode M4 Set the transmission ratio 20:1...
-
Page 14: Operation
Operation 7.Operation Install product correctly according product installation steps; Turn on the power switch on the back of the host and enter the standby state; In the standby state, electing a working mode and setting the parameters, start dental low-voltage electric motor stepping on the foot switch of... -
Page 15: Cleaning, Disinfection And Sterilization
Maintenance 8.Cleaning, Disinfection and Sterilization 8.1 Foreword For hygiene and sanitary safety purpose, the components (motor, Motor disinfection front plug and Motor disinfection back plug) must be cleaned, disinfected and sterilized before each usage to prevent any contamination. This concerns the first use as well as the subsequent uses. - Page 16 Maintenance WARNING 1. Only the components above can be autoclaved. 2. Before first use and after each use, sterilize the above components. Reprocessing Instructions Preparation at the Point of Use: Disconnect the motor from the host. Refer to "Chapter 4-Installation and removal of motor" of this manual for disassembly instructions.
- Page 17 Maintenance A disinfection cycle of 5 min disinfection at 93°C has been validated for the device to achieve an A0 value of 3000. After manual cleaning, the instruments should be automated disinfected of sterilized immediately. A manual disinfection is not recommended.
- Page 18 Maintenance steam sterilization process (according to EN 285/EN 13060/EN ISO 17665) under consideration of the respective country requirements. Minimum requirements: 3 min at 134 °C (in EU: 5 min at 134 °C) Maximum sterilization temperature: 137°C Flash sterilization is not allowed on lumen instruments! WARNING 1.
-
Page 19: Disinfection Components
Maintenance Disinfection Components Disinfection components Host Power cable Adapter Wipe all the surfaces with a cloth lightly moistened with Ethanol for Disinfection (Ethanol 70 to 80vol%) at least 2min, repeat for 5 times. NOTE 1. Do not use disinfectants other than alcohol for disinfection. 2. -
Page 20: Error Warnings
Error Warnings 9.Error warnings When the When input air source pressure more than 0.5MPa, the fault light will highlight. At this time, though operate the control foot switch, the host will not work. Adjust the input pressure to the range of 0.25-0.5MPa. If the fault light is still on, please contact your local dealer. -
Page 21: Troubleshooting
Troubleshooting 10.Troubleshooting When trouble is found, check the following points before contacting your distributor. If none of these are applicable or the trouble is not remedied even after action has been taken, the product may have failed. Contact your distributor. Problem Cause Solution... -
Page 22: Technical Data
Technical Data 11.Technical Data Manufacturer Changzhou Sifary Medical Technology Co., Ltd Model MotorTurbo Power adapter input AC 100～240V，50/60Hz 1.5A 2.5A Power adapter output Cooling air flow ≤40L/min（0.25MPa-0.5MPa） Spray air flow ≥1.5L/min（0.25MPa-0.5MPa） Spray water flow ≥50mL/min（0.2MPa-0.5MPa） Frequency 50/60Hz，±1Hz Speed range 2000-40000RPM，±10% Torque >1N·cm... -
Page 23: Emc Tables
Guidance and manufacturer’s declaration - electromagnetic emissions The MotorTurbo is intended for use in the electromagnetic environment specified below. The customer or the user of the MotorTurbo should assure that it is used in such an environment. Electromagnetic Emissions test Complian-ce... - Page 24 EMC Tables Electrostatic +/- 8 kV +/- 8 kV Floors should discharge (ESD) contact contact be wood, IEC 61000-4-2 concrete or +/- 2 kV, +/- +/- 2 kV, +/- ceramic tile. If 4 kV, +/- 8 4 kV, +/- 8 floors are kV, +/- 15 kV, +/- 15...
- Page 25 Guidance and manufacturer’s declaration – electromagnetic immunity The MotorTurbo is intended for use in the electromagnetic environment specified below. The customer or the user of the MotorTurbo should assure that it is used in such an environment. Electromagneti IEC 60601 test Complianc Immunity test...
- Page 26 When they are used in close proximity to medical equipment and/or systems, the medical equipment and/or systems’ basic safety and essential performance may be affected. The MotorTurbo has been tested with the immunity test level in the below table and meet the related requirements of IEC 60601-1-2:2014.
- Page 27 EMC Tables 1 kHz sine Pulse 704-78 modu-l Band ation 13, 17 217Hz 800/90 TETRA Pulse 800, 800-96 modu-l iDEN ation 820, 18Hz CDMA 850, Band 5 1800; 1720 CDMA 1900; Pulse 1700-1 1900; modu-l 1845 DECT; ation 217Hz Band 1, 3, 1970 4, 25;...
- Page 28 Adapter output Cable Power cable Motor tail cable 2. Use of MotorTurbo adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, MotorTurbo and the other equipment should be observed to verify that they are operating normally.
-
Page 29: Warranty
12 months starting from the day of delivery to the customer. 2. MotorTurbo should be repaired by the equipment technology department of Changzhou Sifary Medical Technology Co., Ltd. or maintenance service partners authorized by Changzhou Sifary Medical Technology Co., Ltd. -
Page 30: Statement
14 Statement 14.Statement Service Life The service life of MotorTurbo series products is 5 years. Maintenance MANUFACTURER will provide circuit diagrams, component part lists, descriptions, calibration instructions to assist to SERVICE PERSONNEL in parts repair. Disposal The package should be recycled. Metal parts of the device are disposed as scrap metal.
