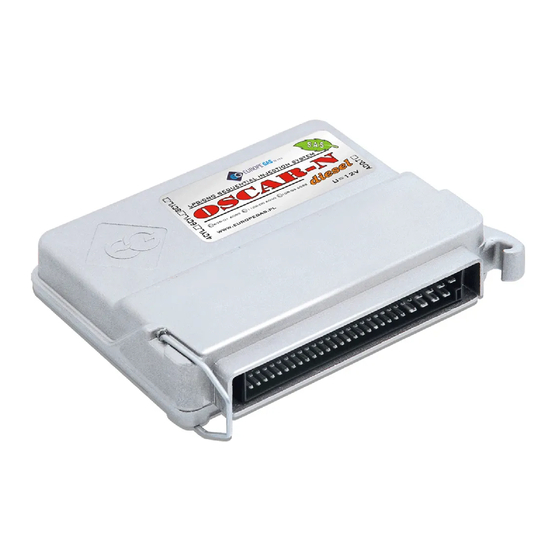

OSCAR-N SAS
MINI / PLUS / OBD CAN
controller user manual
ver. 1.10 dated 2013-10-31
This instruction can be also downloaded from:
http://www.europegas.pl/en/Technical-Support/Service-Manuals
Latest software version and example movies of its usage can be downloaded from:
http://www.europegas.pl/en/Technical-Support/Software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSCAR-N PLUS SAS and is the answer not in the manual?

Questions and answers

Related Manuals for EuropeGas OSCAR-N PLUS SAS

Summary of Contents for EuropeGas OSCAR-N PLUS SAS

  • Page 1 OSCAR-N SAS MINI / PLUS / OBD CAN controller user manual ver. 1.10 dated 2013-10-31 This instruction can be also downloaded from: http://www.europegas.pl/en/Technical-Support/Service-Manuals Latest software version and example movies of its usage can be downloaded from: http://www.europegas.pl/en/Technical-Support/Software...

  • Page 2: Table Of Contents

    Table of content 1. Overview of OSCAR-N SAS controllers and their functionalities..........3 2. OSCAR-N MINI / PLUS / OBD CAN SAS way of assembling.............6 2.1. OSCAR-N MINI SAS installation diagram................6 2.2. OSCAR-N PLUS/OBD CAN SAS installation diagram............6 2.3. Proper installation of OSCAR-N SAS ECU................7 2.4.

  • Page 3: Overview Of Oscar-N Sas Controllers And Their Functionalities

    OSCAR-N PLUS All features present in OSCAR-N MINI SAS are • included in OSCAR-N PLUS SAS moreover it has all features mentioned below. Possibility of connection and reading the parameters of • two Lambda probes at the same time.
  • Page 4 OSCAR-N OBD CAN All features present in OSCAR-N MINI and PLUS • are included in OSCAR-N OBD CAN SAS. Moreover it has all features mentioned below. Built-in datalogger circuit activated by holding the • switch button during the driving makes possible to register and save to memory all system parameters.
  • Page 5 7) Active „RPM / injection time map” assistant (using the PgUp and PgDown Up Down when mapping changes the enrichment in the active map area). 8) The program automatically starts to record the oscilloscope signals at each start-up. 9) Possibility of introducing parameters of self-defined non-standard gas injectors. 10) Automated "Mazda leaning"...

  • Page 6: Oscar-N Mini / Plus / Obd Can Sas Way Of Assembling

    2. OSCAR-N MINI / PLUS / OBD CAN SAS way of assembling 2.1. OSCAR-N MINI SAS installation diagram 2.2. OSCAR-N PLUS/OBD CAN SAS installation diagram 6/42...

  • Page 7: Proper Installation Of Oscar-N Sas Ecu

    2.3. Proper installation of OSCAR-N SAS ECU During the installation of OSCAR-N SAS sequential gas injection system it is suggested for the wire set to point downwards. It is also suggested that it should be placed in such a way to avoid the negative impact of high temperature and humidity.

  • Page 8: Selecting Proper Type Of Eg2000 Gold Label Injector According Car's Horsepower

    2.4. Selecting proper type of EG2000 GOLD LABEL injector according car's horsepower The injectors efficiency should be selected in such way so that at low and high engine load conditions the petrol injection opening time on gas should be equal to petrol injection opening time on petrol.
  • Page 9 In case of using standard valve type injectors like RAIL IG1 You can use the “Nozzle calculator” available in OSCAR-N SAS software. Attention: Algorithm assumes that reducer's differential pressure has been set at 1 bar (for LPG reducer) or 1,8 bar (for CNG reducer). Calculated values are only approximate values and it is recommended to start drilling the injector nozzles from a diameter smaller from calculated one by 0,2 mm and depending on the communicates during autocalibration eventually increasing it by step of 0,2 mm.

  • Page 10: Usage Of Changeover Switch Model Led-5 And Model Led-7

    2.5. Usage of changeover switch model LED-5 and model LED-7 2.5.1. LED-5 model description: Fuel state diode -the yellow diode located in top right switch corner show current fuel status. It can indicate 5 following states: 1) turned off -system is in petrol mode 2) blinking at 1Hz frequency (once per second) -system awaits for reaching min.

  • Page 11: Led-7 Model Description

    2.5.2. LED-7 model description: LED-7 switch model works similar as LED-5 model. Main differences are: 1) Buzzer is incorporated into LED-7 switch. 2) Red diode located in bottom right corner of switch is switched on when buzzer is active. 3) Red reserve diode located on bottom left corner is being switched on when all 4 gas level status diodes are switched off and gas tank is almost empty.

  • Page 12: Oscar-N Sas Diagnostic Program Description

    3. OSCAR-N SAS diagnostic program description Attention: Before running the software please make sure that You have Java Run-time Environment in version not lower than 7 update 25 installed on Your PC. You can also install it after execution of software installer. You can always download the latest version from: http://www.java.com/ 3.1.

  • Page 13: Software Settings Configuration During Every Start-Up

    3.2. Software settings configuration during every start-up It is possible to define default behavior of software during its every start-up. List of adjustable parameters is located in menu File → Software settings. Calibration map autoscaling -Automatical scalling of calibration map (depending on •...

  • Page 14: Main Software Window Description

    3.3. Main software window description Attention: Balloon tips with explanation are being displayed every time when mouse cursor is being held over particular function in software window. OSCAR-N SAS diagnostic software main window is composed of: Main menu bar located on the top of the window. •...

  • Page 15: Settings Panel

    3.4. Settings Panel During every first start of the software please choose the OSCAR-N SAS ECU work mode LPG or CNG (depending on the type of installation in the car). a) set “Fuel type” on which car is running, b) set proper “Cyls. Numbers” -[1...8] -according to amount of petrol/gas injectors connected, c) set proper value of “Cyls.
  • Page 16 type” from “Sequential” to “Full-group” or “ Semi-sequential”. h) only for cars with petrol injectors controlled by positive pulse please change the value “Injection controlled by” field from “-” to „+”, i) set proper “Lambda sensor” type if connected, j) select proper type of “Gas level sensor”/pressure gauge installed. If it is necessary to adjust original standard sensor characteristics of level sensor press “Set min”...

  • Page 17: Changeover Panel

    3.5. Changeover Panel Set desired parameters for system change over “To Gas” and “To Petrol”: 3.5.1. Parameters To Gas “Min. reducer temp. [C]” -minimum temperature of reducers required for opening to • solenoid valve before first changeover to gas. “Min. changeover RPM” -minimum value of engine RPM required for the controller to •...

  • Page 18: Parameters To Petrol

    “Changeover simultaneously” -feature of forcing all cylinder to changeover simultaneously • during first autocalibration changeover Attention: For full-group controlled cars please remember to set Changeover delay per cyl. [s] to “0.0” s. and Changeover simultaneously to “ON” before running auto-calibration. “Remember emergency start state”...

  • Page 19: Working And Minimum Gas Pressure

    3.5.3. Working and Minimum gas pressure “Minimum pressure” -it is the lowest value of gas pressure at which the system allows to • drive on gas. If the gas pressure will fall below this value, for time longer than value set in “Pressure error time”...

  • Page 20: Calibration Panel

    3.6. Calibration Panel Map In Calibration bookmark is showing dependency of petrol injectors opening time on petrol (red points) and petrol injectors opening time on gas (blue points) [ms] related to value of manifold absolute pressure (vacuum) in the engine inlet manifold [kPa]. On the right bottom side of map workspace there is indication of petrol (red colour) and gas map (blue colour) buffers [%].

  • Page 21: Auto-Calibration On Idle

    Page Up –moves the whole multiplier line up by 0,1. • Page Down -moves the whole multiplier line up by 0,1 • 3.6.1. Auto-calibration on idle a) Wait for the reducer to reach temperature of 50 C degree. The engine should be running on petrol, on idle revs, air-conditioning must be turned off.
  • Page 22 Map Collection Assistant -the round marker on the intersection of vertical (injection time [ms]) and horizontal (vacuum [kPa]) lines is changing colors depending on the quality of collected map. It can take on 3 following colors: Red -there are not enough points collected in that area. We need to keep the engine load at •...

  • Page 23: Auto-Adaptation Feature

    If everything has been installed properly steps mentioned above should guarantee proper driving on both fuels. In more sophisticated cars there may be necessity of using features located in „Map”, „Corrections”, Advanced” and „OBD” bookmarks. Remember that during work with the system You might always refer to this User's Manual located in “docs”...
  • Page 24 Autoadaptation feature can be used for automatic multiplier's correction on higher ranges of loads in places where petrol map points and gas map points are not close enough to each other (like on above screenshot) Attention: If we enable autoadaptation it works until we will disable it (works also without ECU connected to PC) After each correction made to particular point of the multiplier, some of map points in its neighborhood are being erased to ensure quick acquisition of updated gas map.
  • Page 25 “Autoadaptations precision” -defines how many map points (from 16 points nearest to the • current map point) must be collected to make single correction to multiplier. As higher this value would be as more accurate the collected maps line until autoadaptation will make single multiplier correction.

  • Page 26: Map Panel

    3.7. Map Panel In this bookmark it is possible to adjust the composition of air/fuel mixture in specific ranges of petrol injection opening time <2 - 25ms> depending on RPM level <500-7500 RPM>. Thanks to that map we can adjust mixture by shortening or elongating the gas injectors opening time in range from –50% up to +50%.

  • Page 27: Corrections Panel

    Attention: Additive and multiplicative time corrections [ms] (from Corrections bookmark), multiplier correction [%] (from Calibration bookmark) and correction from RPM [%] (from Map bookmark) summed together give final gas injectors opening time. The corrections regarding the gas pressure and gas temperature are also being applied all the time. Therefore before every another autocalibration we will be reminded by software to restore default settings to all modified corrections.

  • Page 28: Advanced Panel

    3.9. Advanced Panel 3.9.1. Injectors “Injectors warming up”-in parameter “Injectors warming up time [s]” we can set period of • time for which the gas injectors coils should be preheated by single pulses from ECU (properly shortened so they won't cause opening of injector) before first changeover to gas. F unction is being applied only if the reducer temperature is not higher than “...
  • Page 29 “Ignoring petrol opening signal below [ms]” -this parameter sets the minimum threshold • below which the petrol injectors opening time will be not read and not converted to gas injection opening time. This option should be enabled when petrol injection controller generates very short pulses on petrol injectors (from 0,3 [ms] up to 1,1 [ms]), which normally doesn't cause dosage of petrol fuel but after summation with all controllers corrections (eg.
  • Page 30 3.9.2. Enrichment “First changeover enrichment” -after activating that feature it is possible to lean/enrich the • mixture once after first changeover from petrol to gas. After first changeover to gas the gas injection opening time will be elongated/shortened by selected “Enrichment level” (in %). During desired “Enrichment duration”...
  • Page 31 3.9.3. Other “Cut-off pressure [kPa]” -defines the value of too high pressure threshold. Above this value • ECU can start reducing the pressure overgrowth effect using method selected. “Exit from cut-off through petrol” -this feature might be useful when installed reducer is •...
  • Page 32 Examples: a)Working pressure: 100kPa, Correction: 5%/10% → during fall of pressure down to 90 kPa, (-10%),gas injection opening times will be elongated by 5% a)Working pressure: 100kPa, Correction: 10%10% → during fall of pressure down to 90 kPa, (-10%) gas injection opening times will be elongated by 10% a)Working pressure: 100kPa, Correction: 5%/10% →...
  • Page 33 3.9.4. Password It is possible to protect ECUs settings by setting supervisor password. Password to be exactly 8 chars long and should contain only alphanumerical chars [A...Z, a...z, 0..9]. When supervisor password has been set then, after every try of establishing connection with ECU, software will ask user to enter password.

  • Page 34: Oscilloscope Panel

    3.10. Oscilloscope Panel On the right side of main window we can tick which of ECU signals we would like to see on oscilloscope run. One the bottom left side of oscilloscope window we can find buttons to: change the units displayed on the left vertical axis (C, kPa, V, RPM, ms). On the bottom part of oscilloscope bookmark there are following buttons available: “Clear”...

  • Page 35: Obd Panel

    3.11. OBD Panel OBDII connector's pin out description Pin 4 - GND Pin 5 - GND Pin 6 - CAN High Pin 7 – K-line Pin 14 - CAN Low Pin 16 - +12V To use this feature it is necessary to connect to the car's OBD connector with CAN Low (OBD pin 14, yellow wire) and CAN High (OBD pin 6, white wire) or with K-line (OBD pin 7, blue wire) wires from harness of OSCAR-N OBD CAN SAS controller according to assembling diagram.
  • Page 36 selected for reading. When we want to use OBD corrections it is recommended to leave only Long Time Fuel Trims 1 [%] (and Long Time Fuel Trims 2 [%] in case of having 2 banks) parameter selected for quicker update. “Read error codes”...

  • Page 37: Errors/Warnings Bookmark

    3.12. Errors/Warnings bookmark. Error appearance is being signalized by quick blinking of changeover switch yellow diode and immediate changeover back to petrol. “Error/Warnings” sign will also change its colour to red. In case of appearance of “Gas pressure error” the buzzer will give long signal additionally. “Continuous error”...

  • Page 38: Warnings List

    “Gas injector 1 not connected“ -there was no connection with gas injector no. 1. • “LPG/CNG leak detection” - informs that there may be a gas leak in system. Leak • suspicion occurs when gas pressure is lower than „minimal gas pressure” value. “Low level lubrification fluid”...

  • Page 39: Conditions Bookmark

    3.13. Conditions bookmark. Conditions bookmark is showing which system parameter values might be temporarily preventing the car from running on gas. Following conditions can be displayed in the software: “Gas temperature too low” – Gas temp. [C] value is lower than Min. gas temp [C] •...

  • Page 40: Service

    In “Service” bookmark we can find following information about ECU: working time, gas working time, service time, firmware version, serial number, date of production, ID number, last settings modification date and time of last 5 service inspections made. We can also save in the ECU memory the size of nozzle diameter installed.

  • Page 41: Loading And Saving Settings

    language as PC operating system language. If language is not supported software automatically starts in English language. 3.16. Loading and saving settings It is possible to “Save settings” of controller in a “*.set” file. All the settings like the multiplier values, sensor types, petrol and gas maps etc.

  • Page 42: Firmware Update Procedure

    0.89. Latest version of software is always available for downloading at our website: http://www.europegas.pl/en/Technical-Support/Software If controller has been already calibrated and set up please try to remember the present settings as there is a risk of loosing then after firmware update and it will be necessary to set up the controller manually from the beginning.
