MODEL : PCW050050N
V-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Cell PCW050050N and is the answer not in the manual?

Questions and answers

Summary of Contents for VEGA POWER Power Cell PCW050050N

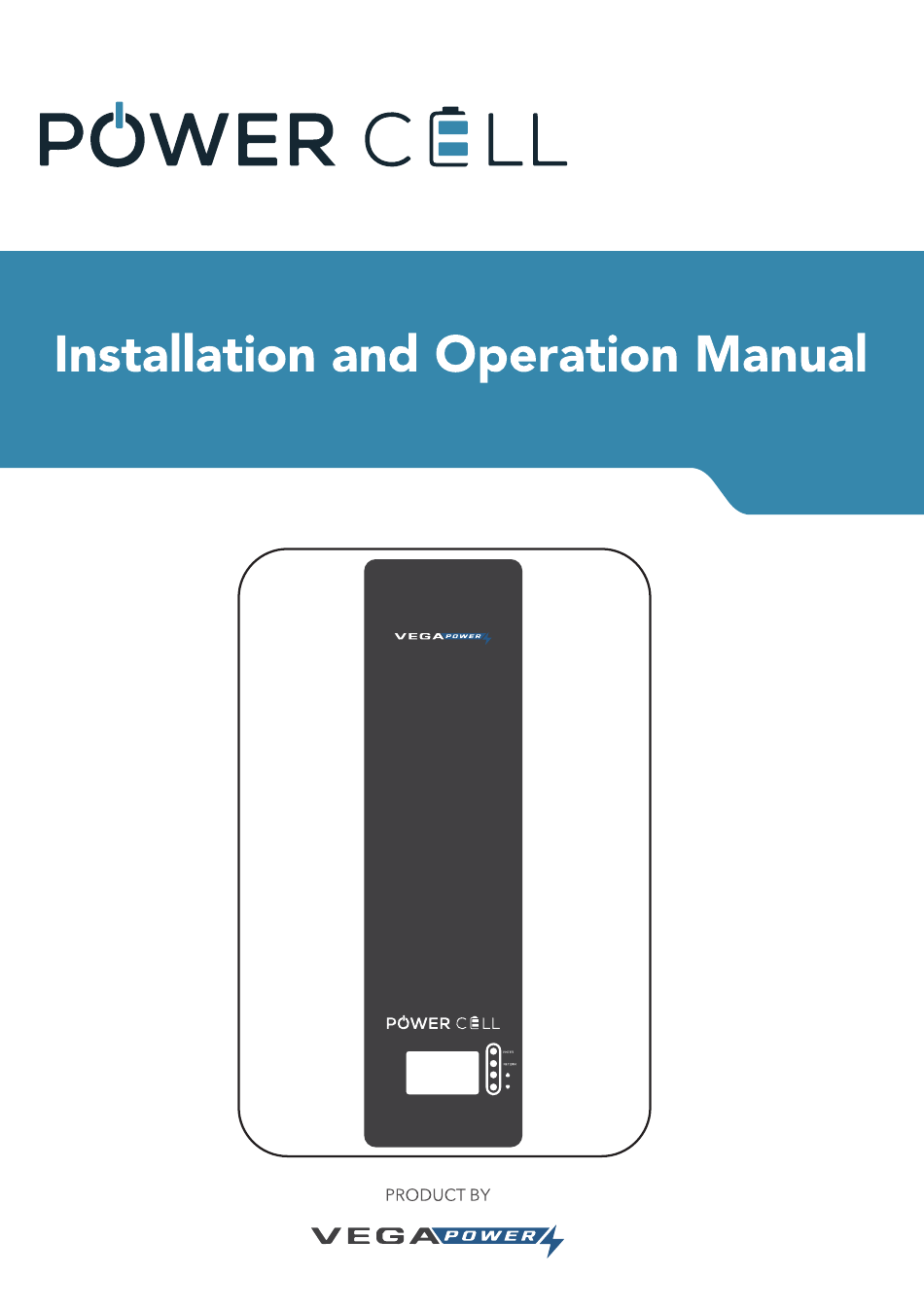

  • Page 1 MODEL : PCW050050N...
  • Page 2: Table Of Contents

    HANDLING GUIDE SAFETY INSTRUCTIONS INTRODUCTION SPECIFICATIONS DEVICE OVERVIEW COMPONENTS INSTALLATION MULTIPLE CELL CONNECTION DEVICE SETUP PRODUCT APPLICATION WARRANTY DISCLAIMER...
  • Page 3: Handling Guide

    POWER CELL HANDLING GUIDE STORAGE Place battery according to signs on packing case. Do not put battery upside down or sidelong. Store batteries in a place free from direct sunlight and rain. Keep batteries at least two meters away from a heat source (such as a radiator). Avoid contacting with corrosive and organic substances (including gas exposure).
  • Page 4 POWER CELL HANDLING GUIDE BEFORE CONNECTING Do not put battery upside down or sidelong. After unpacking, please check product and packing list first, if product is damaged or lack of parts, please contact with the local retailer. Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off mode.
  • Page 5: Safety Instructions

    SAFETY PRECAUTIONS It is very important and necessary to read the user manual carefully (in the accessories) before installing or using battery. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage battery, potentially rendering it inoperable.
  • Page 6 RISKS OF DAMAGE Keep distance to water source. Do not subject battery to high voltage. Place battery on a flat surface. Do not place any foreign object on top of the battery nor step on the battery. Battery-connected PCS should have reinforced insulation. RESPONSES TO EMERGENCIES WET BATTERIES If battery became wet or has been submerged in water, do not access it.
  • Page 7 If the battery catches fire, it will produce noxious and poisonous gases. Do not approach. RESPONSES TO EMERGENCIES FIRE In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited. Battery may catch fire when heated above 150°C. Please implement the following actions.
  • Page 8: Introduction

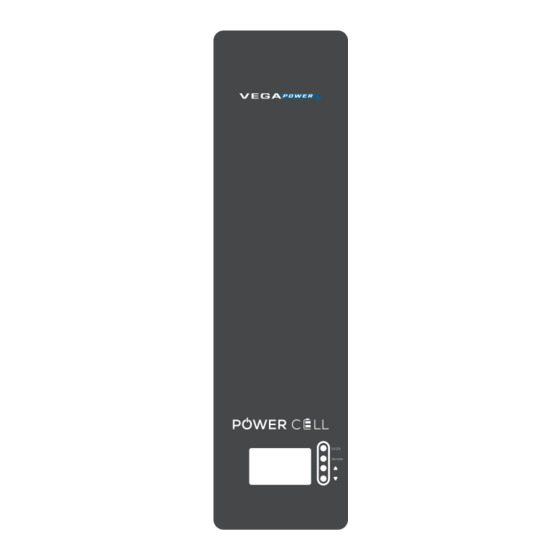

    INTRODUCTION INTRODUCTION POWER CELL, lithium iron phosphate battery pack is a household renewable energy storage solution designed and developed by Vega Innovations Pvt Ltd, Sri Lanka. It is a low-voltage DC battery pack with an nominal voltage of 51.2 V and maximum capacity of 5 kWh.
  • Page 9: Specifications

    BASIC SPECIFICATIONS AT 25 * To prolong the battery life time. (15% - 90% SOC) ** Please refer the chart...
  • Page 11 RS485 PORT Alarm INDICATORS DIP SWITCH RS485 PORT POWER / RESET CAN PORT BATTERY V+ (RED) SOC INDICATORS BATTERY V+ (RED)
  • Page 12 EARTH POINT [-] BATTERY TERMINAL (BLACK) [-] BATTERY TERMINAL (BLACK) PRESSURE RELEASE VALVE...
  • Page 13: Overview

    OVERVIEW [ W - Wall mount | R - Rack mount ] [ W - Wall mount | R - Rack mount ]...
  • Page 15: Installation

    INSTALLATION REQUIRED TOOLS FOR INSTALLATION Safety Shoes Safety Goggles Insulated Gloves Hydraulic plier Pencil Cable wrench Multimeter Tape measure Screw driver Wire stripper Crimper Hammer drill INSTALLATION LOCATION Make sure that the installation location meets the following conditions: The installation site must be suitable for the size and weight of the battery. Must be installed on a firm surface to sustain the weight of battery.
  • Page 16 INSTALLATION In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes. The battery is heavy, please handle with care to avoid damage to the product or injury to the installer. Falling equipment can cause serious or even fatal injury: never mount the Power Cell on the bracket unless you are sure that the wall bracket is firmly mounted on the wall after thorough checking.
  • Page 17 INSTALLATION PRE-INSTALLATION CHECKS Check exterior package: before opening package, check for damages like holes, cracks or other traces on exterior packing case. If any abnormality is detected, do not open the package and contact your distributor. Check deliverables: after opening package, check if deliverables are complete. If there is any part missing or damaged, please contact your distributor.
  • Page 18: Multiple Cell Connection

    MULTIPLE POWER CELL CONNECTION Following configurations can be followed to connect two or more Power Cells with your inverter setup for capacity expansion. You can expand the capacity of the battery bank up to 80 kWh by connecting 16 Power Cell in parallel. If the maximum battery power input of your inverter setup is more than 6 kWh, It is recommended to follow the configuration type 01.
  • Page 19: Device Setup

    DEVICE SETUP CAN PORT RS485 PORT RS485 PORT RJ45CABLE CAN NETWORK CABLE RS485 NETWORK CABLE RS485 NETWORK CABLE After connecting power cables to the battery from power conversion system, CAN network cable and RS485 network cables have to be connected as above. Some power conversion systems doesn’t have built in CAN communication.
  • Page 20 DEVICE SETUP INDICATOR LIGHTS There are 6 lights to indicate several operating status of the Power Cell. First 4 lights indicate the SOC level according to the table bellow. 5th light is the alarm indication. If it is blinking in red colour, there is a warning which can be checked through the LCD screen.
  • Page 21 DEVICE SETUP Settings of the inverter have to be configured as to the instructions given bellow for better operation of the power cell with the inverter. Please contact technical team for further instructions if required. ATTENTION Following inverters have built in CAN protocols to allow CAN communication with the Power Cell.
  • Page 22: Product Application

    PRODUCT APPLICATION...
  • Page 23 PRODUCT CHARACTERISTICS Discharge Characteristics 0.1C 0.2C 0.3C 0.5C 1.0C State of charge (SOC)% Chart 1 Performance Characteristics C ,80%DOD ,1C C 80%,DOD ,0.5C Number of Cycles Chart 2...
  • Page 24 PRODUCT CHARACTERISTICS Performance Characteristics with temperature 1200 Number of cycles Chart 3 ATTENTION Considering the above capacity characteristics, Power Cell could reach a cycle life of 6000 times or more at the remaining capacity of 80% at 25°C room temperature, 80% DOD @ 0.5 C.
  • Page 25: Warranty Disclaimer

    This limited contractual warranty (hereinafter referred to as “Limited Warranty”) applies only to the home battery back-up systems (PCW050050N) carrying the name and style “Power Cell” and its accessories limited to cables and connectors (hereinafter collectively referred to as “Product”) developed and manufactured by Vega Innovations (Private) Limited (hereinafter referred to as “Vega”...
  • Page 26 f. inverter or charger failure, g. as a result of Product being connected to different types of battery modules, h. as a result of the Product not being used on daily cycle-based applications, i. the Product has not been installed, operated, and maintained properly according to the Product manual provided by Vega, j.
