Summary of Contents for Barco BM1210

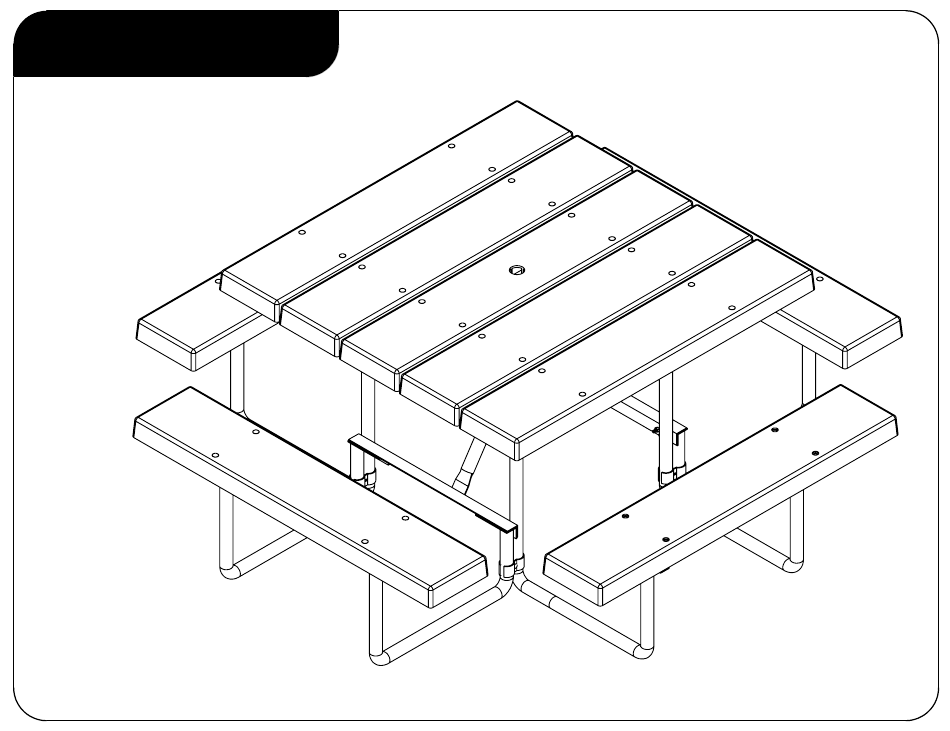

- Page 1 SQUARE TABLE REV#1 INSTRUCTIONS BM1210...
- Page 2 SQUARE TABLE INSTRUCTIONS BM1210 PLASTIC BOARDS END SUPPORT 10205 CENTER SUPPORT ANGLE BRACE 10215 10202 OUTRIGGER FRAME OUTRIGGER FRAME LEFT RIGHT 10213 10212 PIPE FRAME CLAMP 10204 PLASTIC BOARD HARDWARE & WITH UMBRELLA HOLE TOOLS REQUIRED FOR ASSEMBLY...
-
Page 3: Required Tools
SQUARE TABLE INSTRUCTIONS BM1210 3-1/2" X 5/16" 1" X 5/16" CARRIAGE BOLT HEX HEAD BOLTS 1-1/4" X 1/4" LAG SCREWS 1-3/4" X 1/4" CARRIAGE BOLT 5/16" SERRATED FLANGE NUTS 1/4" SERRATED FLANGE NUT REQUIRED TOOLS NOTE: IT IS IMPORTANT TO KEEP ALL BOLTS FINGER TIGHT... - Page 4 SQUARE TABLE INSTRUCTIONS BM1210 STEP 1: Tabletop Assembly • Lay 4 boards (B) face down on a flat, clean surface • Place the board with the predrilled umbrella hole (N) in the center • Insert twenty 3-1/2" x 5/16" carriage bolts (H) thru the face of the boards (B) •...
- Page 5 SQUARE TABLE INSTRUCTIONS STEP 3: Attach the Angle Braces BM1210 • Using two 1" x 5/16" hex bolts (K) and two 5/16" flange nuts (J), attach the angle support (F) to the center support (E) and end support (A) STEP 2: Mount the Center Support •...
- Page 6 STEP 5: Attach Pipe Frame Clamps INSTRUCTIONS • At the base of the table, place a pipe frame BM1210 clamp (G) around the end support frame (A) and the outrigger frame (C&D) • Attach the pipe frame clamp by bolting...
-
Page 7: Seat Assembly
SQUARE TABLE INSTRUCTIONS BM1210 STEP 6: Attach the Seats • Lay the remaining 4 boards (B) over the outrigger frames (C&D) • Use the 3-1/2" x 5/16" carriage bolts (H) to go through the board (B) and outrigger frames (C&D) •... - Page 8 SQUARE TABLE SPECIFICATIONS BM1210 48.00 9.44 SIDE 9.44 71.00 ALL DIMENSIONS ARE SHOWN IN INCHES...
- Page 9 SQUARE TABLE SPECIFICATIONS BM1210 STEEL FRAME DETAIL STEEL FRAME DETAIL Plastic Boards w/ Steel Frame Rectangular Table Picnic END SUPPORT FRAME 1.5" OD TUBING SEAT SUPPORT ARM 1.5" OD & 2"X2" ANGLE IRON TABLE TOP SUPPORT 2"X2" ANGLE IRON HARDWARE...
