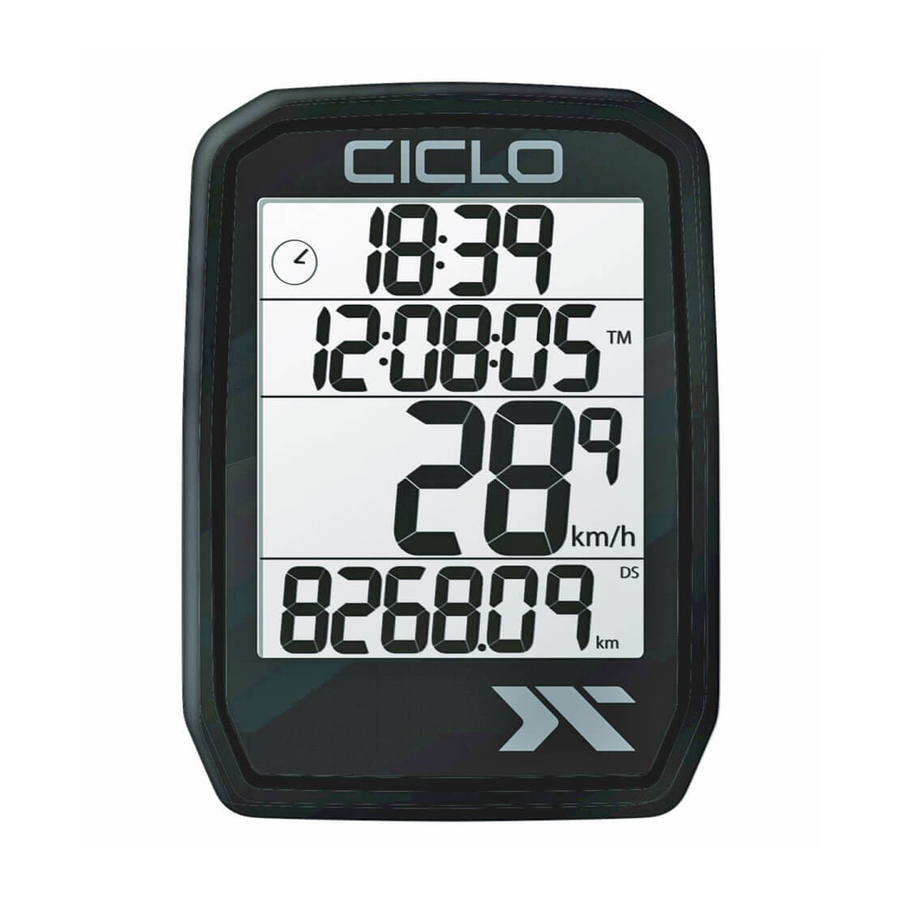

CICLO PROTOS 205 - Bike Computer Manual

Please read these operating instructions carefully.

Package-content

• PROTOS 205
• Transmitter
• Battery type CR 2032
• Spoke magnet
• Handlebar mount
• Mounting material

Mounting

Please mount the handlebar mount on the stem or handlebar with the cable ties (Fig. 1). To do this, pull the cable ties either in direction of travel (handlebar mounting) or transverse to the direction of travel (stem mounting) through the recesses provided for this purpose on the handlebar mount. Position the handlebar holder at the desired location (Fig. 2) and tighten the cable ties. The ends of the cable ties can be cut off with scissors.

Now pull the cable ties through the openings on the transmitter. Please mount the magnet on a spoke (Fig. 3) and position the transmitter on the fork so that the distance between magnet and transmitter with a maximum of 3 mm (Fig. 4). Now you can tighten the cable ties on the transmitter and cut of the ends with scissors.

Starting

Inserting the battery: Insert battery type CR2032 with plus-pole facing up. Close battery cap with a coin, being sure not to over tighten.

Key Functions

Your PROTOS has no buttons in a conventional sense, the settings are done with the two "buttons" on the bottom of the housing. These buttons can be pressed with a e.g. ballpoint pen. Now you can use the SET button to choose whether you want the time to be displayed in 12 or 24 hour format. Pressing the MODE button now saves this and advances to set the time. You can now adjust the flashing hour display with the SET button. When the desired value is reached, the value is saved by pressing the MODE button and the minute display flashes. Now use the SET key to set the value again. To save, please press the MODE button once. According to this scheme, all settings can now be made gradually.

To reset the daily values, you must press the MODE button for about 5 seconds (Reset appears in the display). Please hold the key until the display returns to the normal display. If the MODE button is pressed for 10 seconds, all values, also, the yearly values, reset to "0" (Total Reset flashes in display). To execute the function, you must also wait here until the display switches back to the normal display. Press the SET button for 5 seconds to enter the settings.

Settings

The sequence of settings is as follows:

• Time format 24/12 hours
• Time Hours and minutes
• Km/h or mi/h
• Wheel circumference in inches (see table)
  Presets from 16"- 29" and 700
• Wheel circumference individually correctable in mm
• Presetting of the total kilometres to 999999 km without decimal point

Please keep the proof of purchase for this device for the duration of guarantee, as this is enclosed in the event of a possible complaint has to be. You (the end user) receive 24 months warranty with start of the date of sale. The article was sold under application manufactured using the most modern production processes and strict quality controls.

Should defects occur during the warranty period, please contact us.

Service contact under: ciclo-service@ciclosport.de

The warranty does not apply to damage caused by improper handling, or by external influences (water, fall, sun, impact or fracture) were caused.

Declaration of conformity:
Herewith the CicloSport K.W. Hochschorner GmbH, that the PROTOS 205 device is Conformity with the essential requirements and the other relevant provisions of the current legal situation.

The declaration of conformity can be found at the following address: www.ciclosport.com

Technical data

Battery: CR2032

Frequency: 125KHz

The operating temperatures range from -10°C to + 50°C.

The storage temperatures during transport are between -20°C and +70 degrees.

We reserve the right to make technical changes in the course of further development.

Customer Service/Contact:
If your device has a defect / you have a problem with it, please send us the device under consideration of the following points to the address below

1. always send us your device in the original carton
2. attach a cover letter with a description of the error,
3. your full address
4. and a copy of the proof of purchase
5. frank the item with sufficient postage to

CicloSport K.W. Hochschorner GmbH, Lohenstrasse 11, 82166 Gräfelfing, Germany
