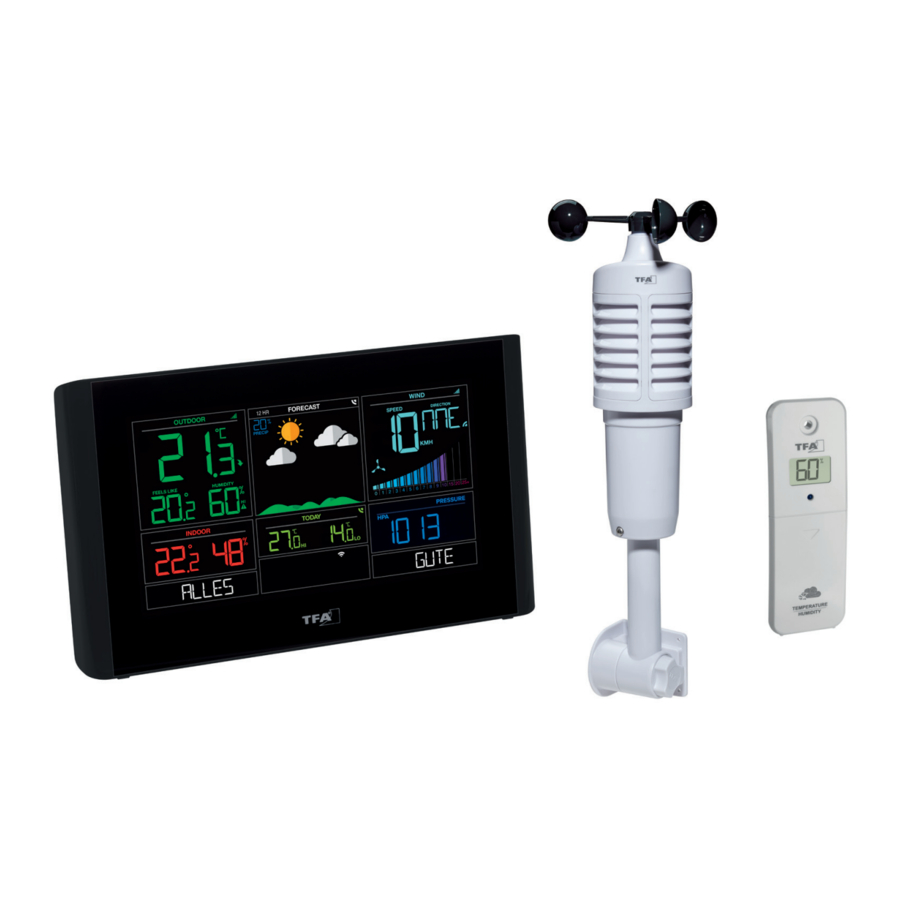

TFA VIEW BREEZE 35.8001.01 Quick Set-Up Guide

Before you use this product: Please make sure you read the instruction manual carefully.
Please take particular note of the safety advice!
Please keep this instruction manual safe for future reference.

Power up the transmitter and the weather station

Power up the transmitter
First insert the batteries into the wind meter and the thermo-hygro transmitter as described.

Base station

• Connect the attached power adapter to the base station.
• Remove the battery insulation strip at the bottom of the station.

It may take up to 10 minutes before measured values from the transmitters appear on the display.

Connect the station to the Internet and the TFA VIEW App (optional)

Download
Download the free TFA VIEW App from the "Apple App Store" or "Google Play Store".

Launch software

• Open the TFA VIEW App and follow the on-screen instructions.
• After you have created an account and started the app, select „Devices" in the menu. There you can add, remove or sort compatible VIEW devices. You can add transmitters or stations with the „Add device" button in the iOS app or the blue „+" button in the Android app.
• Now follow the instructions and steps exactly as given by the app.

Get your base station ready
Ensure your station's Wi-Fi symbol is flashing. If it is not, press and hold the + and SET button at the same time until the symbol begins flashing. Your station is now ready to connect to the internet and the TFA VIEW App.

Having trouble connecting to the Wi-Fi?
First make sure that your mobile device on which you have installed the VIEW App is connected to the 2.4 GHz network of your Wi-Fi router and that you have entered the correct password for your Wi-Fi. For details on how to connect to your router's 2.4 GHz network, refer to your router documentation. For more troubleshooting tips and support visit: www.tfa-dostmann.de/en/service/frequently-asked-questions/

* Note: Transmitters that were already linked to the VIEW station before the connection are suggested as additional devices in the notification area of the app after a few minutes in order to add them in the app. Only if a transmitter is added later (or was not automatically detected during the connection), select the device management „Devices" in the app menu. There you can scan and add individual transmitters. They will be received by the VIEW station and forwarded to the server/app.

Legal information:
Google Play and the Google Play logo are trademarks of Google LLC. App Store and the Apple logo are trademarks of Apple Inc.

Overview of the functions of your VIEW weather station with and without Internet connection

Function	Standalone	Connected
Wind speed
Wind direction.
Wind top speed
Indoor and outdoor temperature
Indication of Windchill temperature. dew point and atmospheric pressure
Indoor and outdoor humidity
Permanent display of the daily maximum and minimum values of the outdoor transmitter
12 - hour forecast (based on changes in atmospheric pressure)
12 - hour forecast (forecast values from weather service)
Alarm and max-min function on the station
Weather forecast from a weather service for 12 hours |7 days
Automatic time and calendar setting via Internet
Forecast of the highest and lowest temperatures
Propability of precipitation in %
Possibility to retrieve further transmitters
Additional weather information and personalized messages
Measuring values and alarm functions in the TFA VIEW app

Transmitter for temperature and humidity
The transmitter is used to monitor temperature and humidity. When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity damages the electronic components needlessly.

Wind meter
Ensure the wind sensor is mounted vertically. Mount the wind sensor onto a roof or mast so the wind can reach the sensor unobstructed from all directions. Ideally, you should position the wind meter so that it represents the highest object in the immediate vicinity. This gives you the most accurate measurement results.

Add additional transmitters

Whether you choose to connect to the Internet and the TFA View app or not, this station has the ability to display data for up to 4 additional transmitters.

For a complete list of of all compatible transmitters, please visit www.tfa-dostmann.de/view/.

Connect additional transmitters to your station:

When first powering up, or after a factory restart, additional transmitters which have already been activated are automatically connected to the base station.

Example: Additional transmitter for temperature and humidity

Important display symbols

WI-FI symbol
Flashes when the base station is ready to connect to the Wi-Fi, the Internet and the app, and is static when the station is connected.
Internet - symbol
Is shown in certain areas of the display and indicates when measured or predicted values are received from the Internet.
Batterie - symbol
Is displayed individually for the base station and the connected transmitters and indicates when the batteries in the corresponding transmitter or base station (backup battery) need to be changed.
Transmitter symbol
Tells you the reception strength of the connection between the transmitters and the base station. The symbol flashes when the base station is in transmitter search mode.

Forecast values

If the base station is connected to the app and the Internet, the TFA View weather station offers you additional weather forecast values free of charge and without additional subscription. This function includes the following forecast values that can be shown on the display:

• Daily and hourly weather forecast
• Daily highest and lowest values
• Wind direction.
• Rainfall probability

Daily forecast
Press the DAILY button to view predictions for each of the next 7 days of weather data.

Hourly forecast
Press the HOURLY button to view predictions for each of the next 12 hours of weather data.

These buttons will not provide a function if your station is not connected to the Internet.

Buttons and their functions

Service & Support

If you unexpectedly have problems with your station or the TFA VIEW App or if you would like to find out more about TFA Dostmann products, you will find all information and help directly on the following Internet pages:
TFA Dostmann customer service
www.tfa-dostmann.de/en/service/
Information about TFA Dostmann and other products
www.tfa-dostmann.de/en/

Specifications

Base station

Wi-Fi requirements

If you have a multi-band router (e.g. 2.4 & 5 GHz), make sure your mobile device is connected to the 2.4 GHz network if you want to connect base station and app.

Requirements for your mobile device (smartphone or tablet)
Apple devices require at least iOS 9 or higher and Internet access via Wi-Fi or mobile data.
Android devices require at least OS 5.0 or higher and Internet access via Wi-Fi or mobile data.

Transmitter for temperature and humidity

Wind meter

Important notes

Delivery contents
Base station, power adapter for base station, thermo-hygro transmitter, wind meter, instruction manual, backup battery (CR2032)

Before you use this product
Please make sure you read the quick setup guide carefully. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
Please pay particular attention to the safety notices! Please keep this instruction manual safe for future reference.

For your safety
This product should only be used as described within these instructions. Unauthorized repairs, alterations or changes to the products are prohibited.

Risk of electrocution!

• Plug the base station only into a mains socket installed within your country's electrical safety regulations and with a correct mains voltage (see nameplate).
• The mains socket must be located near the equipment and it must be easily accessible.
• Unplug the device immediately if any fault occurs.
• The base station and the power adapter must not come into contact with water or moisture. Only suitable for indoor use. Do not use the device if the housing or the power adapter are damaged.
• Operate the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Only use the supplied power adapter.
• Route the mains cable so it does not come into contact with sharp-edged or hot objects.

• Do not expose the devices to extreme temperatures, vibrations or shocks. Protect from moisture!
• The outdoor transmitter is splashproof, but not watertight. When placed outdoors, choose a dry place for the transmitter.
• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries from all devices if you do not use the products for a long period of time.
• Store the devices in a dry place.

Risk of injury:

• Keep these devices and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Remove the batteries if the device will not be used for an extended period of time.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Disposal
This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Hereby, TFA Dostmann declares that the radio equipment type 35.8001.01 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce

TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, 97877 Wertheim, Germany
Commercial registration number: Reg. Gericht Mannheim HRA 570186

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
For more information and a detailed description, go to www.tfa-dostmann.de/view/
