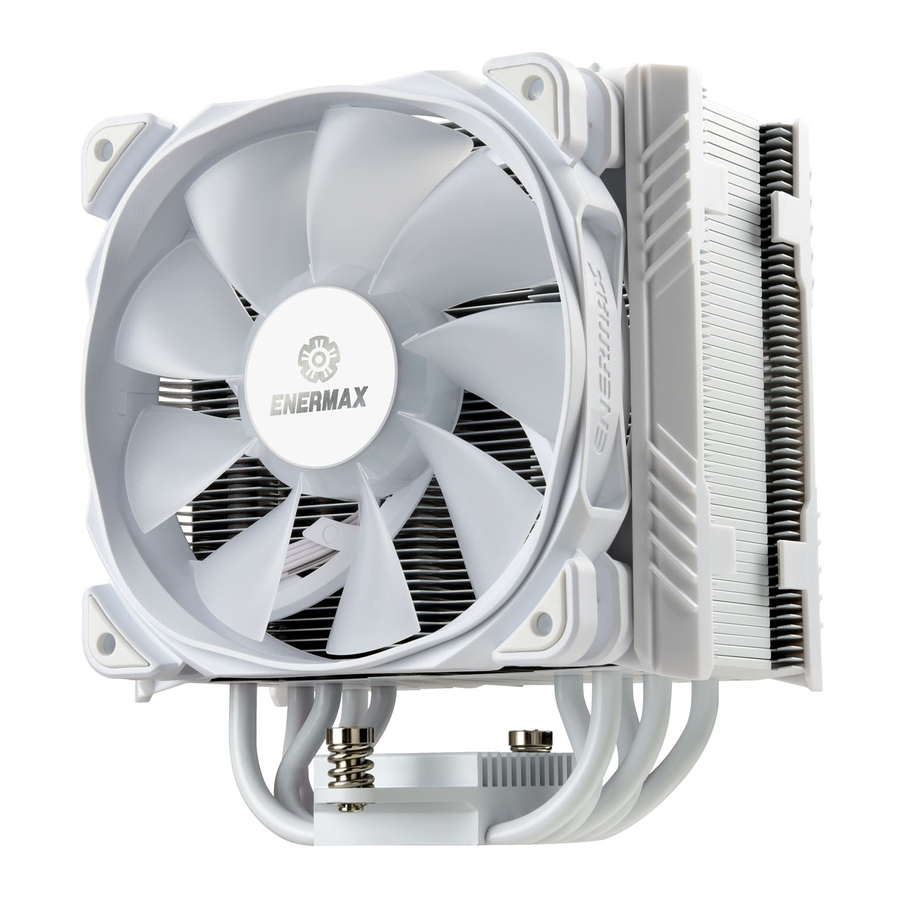

ENERMAX ETS-T50 Manual

Part List

Installation

• Step 1.1
  * Intel LGA775/115X/1366 E

  Insert the position screws into the proper holes on the back plate. Then use the washers to fix the position screws. If your CPU platform is Intel LGA2011 / 2066, please skip to step 2
• Step 1.2
  * Intel LGA775/115X/1366 installation

  Install the back plate on to the back of the motherboard. Put the stand-offs into the back plate screws.
• Step 1.3
  * Intel LGA775/115X/1366 installation

  Install the mounting plates on the position screws and fasten the nuts.
• Step 2
  * Intel LGA 2011/ 2066 installation

  Fasten the Intel LGA 2011 / 2066 screws to the motherboard. Install the mounting plates on the position screws and fasten the nuts.
• Step 3.1
  * AMD installation

  Insert the position screws into the proper holes on the back plate. Then use the washers to fix the position screws.
• Step 3.2
  * AMD installation

  Install the back plate on to the back of the motherboard. Put the stand-offs into the back plate screws.
• Step 3.3
  * AMD installation

  Install the AMD mounting plates on the position screws and fasten the nuts.
• Step 4

  Remove the fan and the air guide before installing the cooler.
• Step 5

  Apply the thermal grease evenly onto the CPU surface with spreader. Remove the protective film from the cooler base.
• Step 6

  Place the cooler on the CPU and tighten the spring screws on base.
• Step 7

  Attach the fan and the air guide to the cooler. Connect the fan 4 pin header to the CPU fan power socket on the motherboard.
  Install the fan and air guide as illustrated way gives best cooling airflow.

Supplement –Air Guide

Rotate the grill of air guide for preferred airflow direction adjustment.

Motherboard Sync

Connect the sync cable to a supported motherboard with ARGB header.
