Flamingo FA22RF - Wireless Interlinked Smoke Detector Manual

HOW TO USE

WIRELESS INTERLINKED SMOKE DETECTOR

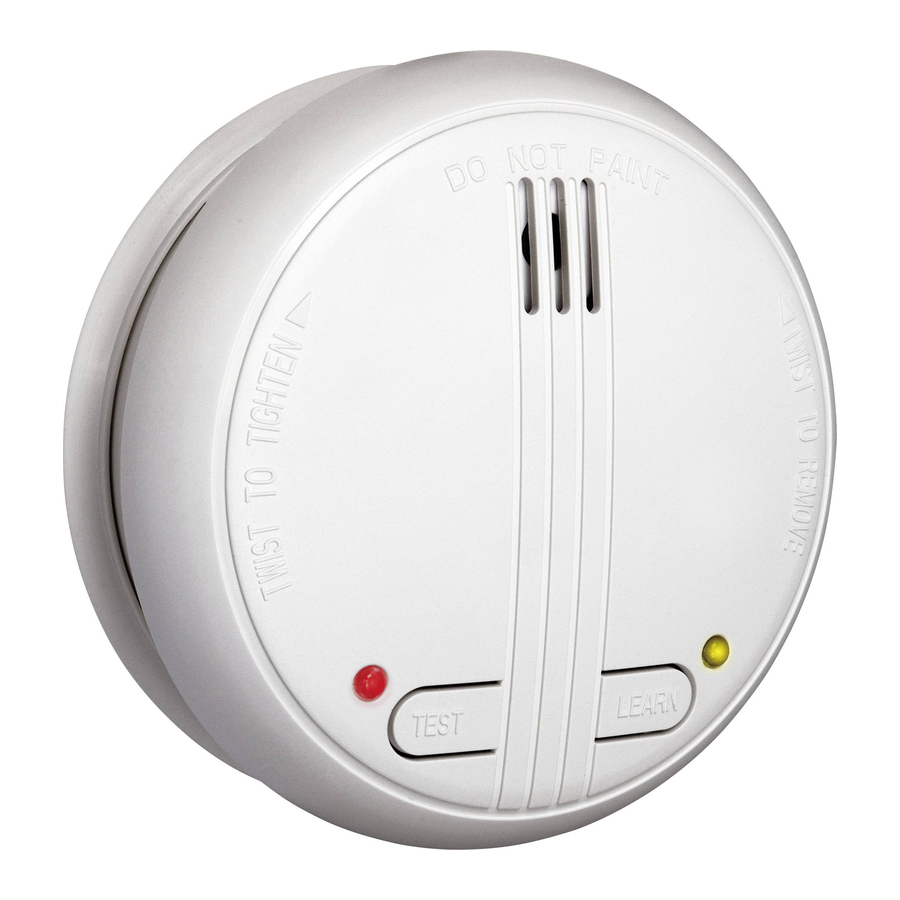

FA21RF is an optical smoke detector, which is combined with a transceiver unit. With the installation of more then one smoke detector, the communication is wireless. In case of smoke emission in one of the protected rooms ALL installed FA22RF smoke detectors are activated. A standard smoke detector that sounds alarm in the loft might not always be audible in the garage. This situation changes with FA22RF.

General:
Detects smoke under the ceiling through openings at the bottom of the detector. Pressing the test button will check the function of the detector. Testing the device using smoke is therefore not advisable or required. LED indicator: the LED will briefly illuminate approx. every 30 seconds, this is the measurement cycle. When the LED is flashing quickly smoke is being detected and in most cases an alarm will follow.

IMPORTANT

POSITIONING

INSTALLATION

INSTALLATION TEST

MAKING A LARGE GROUP

If 20 seconds appear to be too short to login the required number of devices, you can make a smaller group first. You can expand this group by setting extra detectors to "slave". You can now press and hold the test button on any device from the existing group until all other detectors react to add the extra detectors to the group.

MAKING SEPARATE GROUPS

It is possible to make separate groups in one building.

First you have to clean the memory of each detector:

• Take out all batteries from the detectors and place them back after 3 minutes.
• Set each detector as slave (Repeatedly press LEARN button.( RED LED must be on) and press TEST button. Alarm will sound only from this one unit.

After creating the first group (see Installation Test), if you want to make a second group, wait at least 5 minutes and then repeat the same learning procedure for the new group. If you decide to change one detector from one group to the other, you have to learn this detector as slave only with the master from the second group. You can only change a slave detector from one group to the other.

Note: If there is an alarm in one group, as an indication the green LEDs will blink in the other group, but there will be no alarm sound.

TEST/MAINTENANCE

USE

The alarm is provided with a test button. Press this until the alarm signal sounds. The signal stops once the button is released. Test the alarm at least once per month, and certainly after replacing the battery or after cleaning, with a vacuum cleaner for example. The alarm must be vacuumed regularly to remove dust particles and to protect it as well as possible. The casing may not be opened during cleaning. If the alarm fails to operate correctly, the advice of the manufacturer should be sought.

BATTERIES

FALSE ALARM

• Some particles may have entered the optical sensor. Blow the sensor out (or use compressed air) and a vacuum cleaner regularly to keep it clean.
• Do not place the detector close to spotlights and/or other electronic devices.
• Use high-quality batteries (Do not use rechargeable batteries).

DOWNLOAD Declaration of Performance

• Step 1: Go to service.smartwares.eu
• Step 2: Go to 1. Find manuals and support for your product
• Step 3: Fill in article number: FA22RF
• Step 4: Download DoP

DOWNLOAD Declaration of Conformity

• Step 1: Go to service.smartwares.eu
• Step 2: Go to 1. Find manuals and support for your product
• Step 3: Fill in article number: FA22RF
• Step 4: Download DoC

Specifications

Battery detector/transmitter	1x 9V 6F22 Pair Deer Lifetime 1year, replaceable
Batteries receiver	3x 1,5V LR6/AA Pair Deer Lifetime 1year, replaceable
Sound level	85dB
Frequency	433.92MHz
Operating temperature	-5ºC to +40ºC
Working distance	Up to 40m
Interlinked devices	Max 15 per group
Mounting type	Ceiling
Installation in a camper (LAV)	No
Individual alarm indicator	Yes
Alarm prevention (hush)	No
	For indoor use only Please read manual before use, and store it carefully for future use and maintenance

Intended use: Fire Safety / Essential characteristics: Passed

• Nominal activation conditions/ Sensitivity, Response delay (response time) and Performance under fire condition
• Operational reliability
• Tolerance to supply voltage
• Durability of operational reliability and response delay, temperature resistance
• Durability of operational reliability, vibration resistance
• Durability of operational reliability, humidity resistance
• Durability of operational reliability, corrosion resistance
• Durability of operational reliability, electrical stability

Product guarantee

This product has factory warranty according to EU regulations. Guarantee lasts for the number of years shown on the packaging, starting from the date of purchase. Keep the receipt - proof of purchase is required in order to rely on guarantee. In the case of problems, please contact with the store where you purchased the product. For further product information call to our Hotline or visit our website: service.smartwares.eu

Disposal

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

• Always throw empty batteries to the battery recycling bin.
• If the battery is built-in inside the product, open the product and remove the battery.

Maintenance

The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources. Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These attack the surfaces of the devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Protect the battery against fire, too much heat and sunshine

General safety

• Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instructions.
• Do not overload electrical outlets or extension cords, fire or electric shocks can be the result
• Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
• Keep all parts away from young children's reach
• Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
• Avoid dropping or shocks, this can damage the electronic boards
• Never replace damaged power cables yourself! In such a case, remove them from the net and take the devices to a workshop.
• Repairs or opening of this item may only be performed by an authorised workshop.
• Wireless systems are subject to interference from cordless phones, microwaves, and other wireless devices operating in the 2.4GHz range. Keep the system AT LEAST 10 ft away from the devices during installation and operation.
• Keep batteries out of the reach of children. Batteries not swallow. When a cell or battery is swallowed, call a physician immediately.
