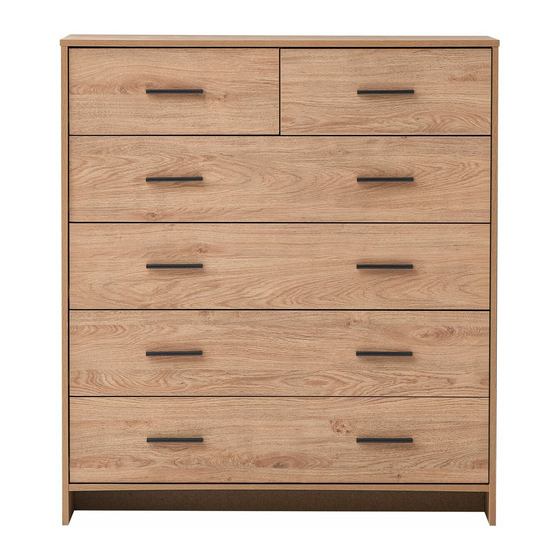

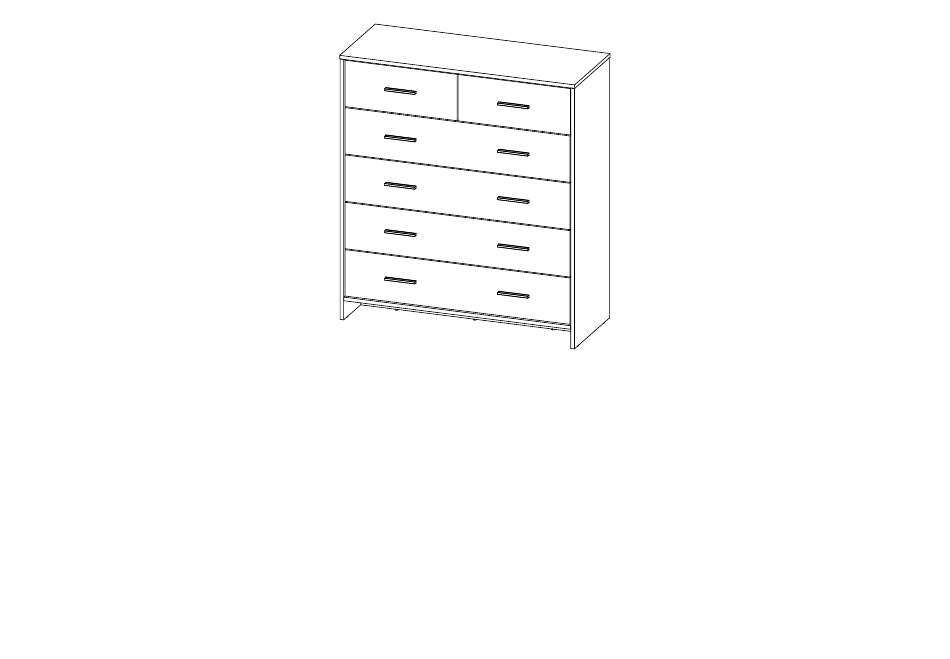

- Page 1 Six Drawer Tallboy Assembly Instructions Model Number: AOF-C6D06 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
-
Page 2: Assembly Requirements
Assembly Requirements Space: 2 x 2 m Personnel: 2 Adults Time: 2 hours Quickfit/Cam Lock Guide To use the quickfit/cam lock, first insert the quickfit into the panel. The “shoulder” of the quickfit should be Shoulder flush against the panel, as shown in (a). When inserting the cam lock, ensure the orientation is correct, as shown, so that it aligns properly with the quickfit,... -
Page 3: Important Safety Information
Important Safety Information IMPORTANT: Please read this manual carefully, and keep it for future reference. • This piece of furniture is intended for use in domestic environments. It is not suitable for commercial, industrial or trade use. Do not use it for any other purpose, and only use it as described in this manual. •... -
Page 4: Care And Maintenance
Important Safety Information • CAUTION: Do not allow children to climb on this furniture - it may topple over and badly injure a child. Do not place toys or other items that may appeal to a child on top of this furniture item. •... - Page 5 ASSEMBLY INSTRUCTIONS Before you begin, please follow assembly instructions carefully, then follow them step by step. Read instruction carefully . See Furniture Parts list and Hardware List for guidance . Be sure you have all parts before you start assembling . Place and assemble furniture on a clean flat soft surface , such as carpet or rug to prevent being scratched .
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 SCREWDRIVER SCREWDRIVER REQUIRED REQUIRED - Insert hardware A2 onto - Insert hardware A1 onto panel (3), (4), (5) and (20). panel (1), (11), (12), (13), (14) and (15). (Repeat 18 times.) (Repeat 30 times.) - Insert hardware A2 onto panel (3) and (4).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 5 STEP 6 SCREWDRIVER SCREWDRIVER REQUIRED REQUIRED Fix hardware M1 (R) into panel (4) with hardware E. Fix hardware M1 (R) into panel (5) with hardware E. (Repeat 19 times for each hardware.) (Repeat 3 times for each hardware.) M1(R) M1(R) ROTATE...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 9 STEP 10 HARDWARE - Connect panel (5) to panel (7) Insert the panel (10) along the slot. by using hardware C and D. (Repeat 1 times.) (Repeat 1 times.) ROTATE * In this step hardware B are pre-inserted. STEP 11 STEP 12 SCREWDRIVER...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 13 STEP 14 SCREWDRIVER SCREWDRIVER REQUIRED REQUIRED Fix hardware L onto panel (11), (12) and (13) Assemble panel (16) and (17) with panel (14) or (15) by using hardware F. by using hardware H. (Repeat 2 times for each hardware.) (Repeat 24 times.) * In this step only show one of the drawers.
- Page 10 ASSEMBLY INSTRUCTIONS STEP 17 STEP 18 SCREWDRIVER SCREWDRIVER REQUIRED REQUIRED - Attach panel (20) to panel (15). Assemble hardware M2 (L/R) to panel (16) and (17) - Attach panel (13) to panel (16), (17) and (20). by using hardware E. - Insert all hardware A2 into A1.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 21 STEP 22 POWER SCREWDRIVER HAMMER DRILL REQUIRED Assemble hardware N1 into panel (1) - Mark and use the power drill REQUIRED REQUIRED by using hardware N2. to drill a hole on the wall. (Repeat 2 times.) - Hit hardware N3 into the wall.
-
Page 12: Warranty & Returns
Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
