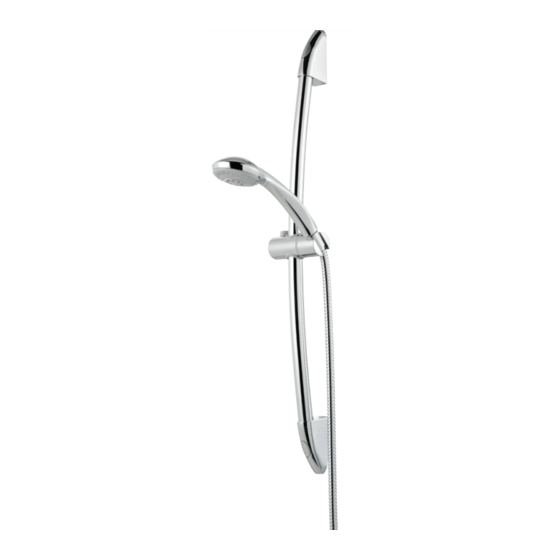

- Page 1 Shower Fittings Kit Installation and Maintenance Guide High quality, chrome finish shower fittings kit designed to be fitted to the Saracen TMV3 Exposed or Concealed Lever Showers.
- Page 2 This installation guide is provided to give instruction on the installation practices that should be observed to ensure the correct functioning of the Saracen Shower Fittings kit. Failure to comply with these instructions will result in the warranty becoming null and void.
- Page 3 Remove the riser rail and drill the marked holes. Insert the rawl plugs provided into the voids. Properly assemble the riser rail with the two fixing brackets on either end ensuring the handset holder and hose retaining ring are also positioned on the rail. Using the screws provided secure the riser rail to the wall.
- Page 4 Concealed A concealed pipe should be fitted from the shower to where the wall outlet will be positioned. The wall outlet requires a 1/2” MBSP connection which should protrude no more than 15mm from the finished wall surface. The wall outlet has an internal o-ring to form a seal around the wall outlet.
- Page 5 Aftercare This Shower Fittings Kit has a high quality finish and should be treated with care. An occasional wipe with a mild washing detergent on a damp cloth followed by a thorough rinsing is all that is required. Do not use an abrasive or chemical household cleaner as this may cause damage to the finish...
- Page 6 Wolseley UK Warwickshire, CV31 3HH For further information please call 01926 705000 or visit www.wolseley.co.uk Wolseley UK reserves the right to make changes to the product which may effect the accuracy of the information contained in this guide. ZINS153255_001_07/14...
