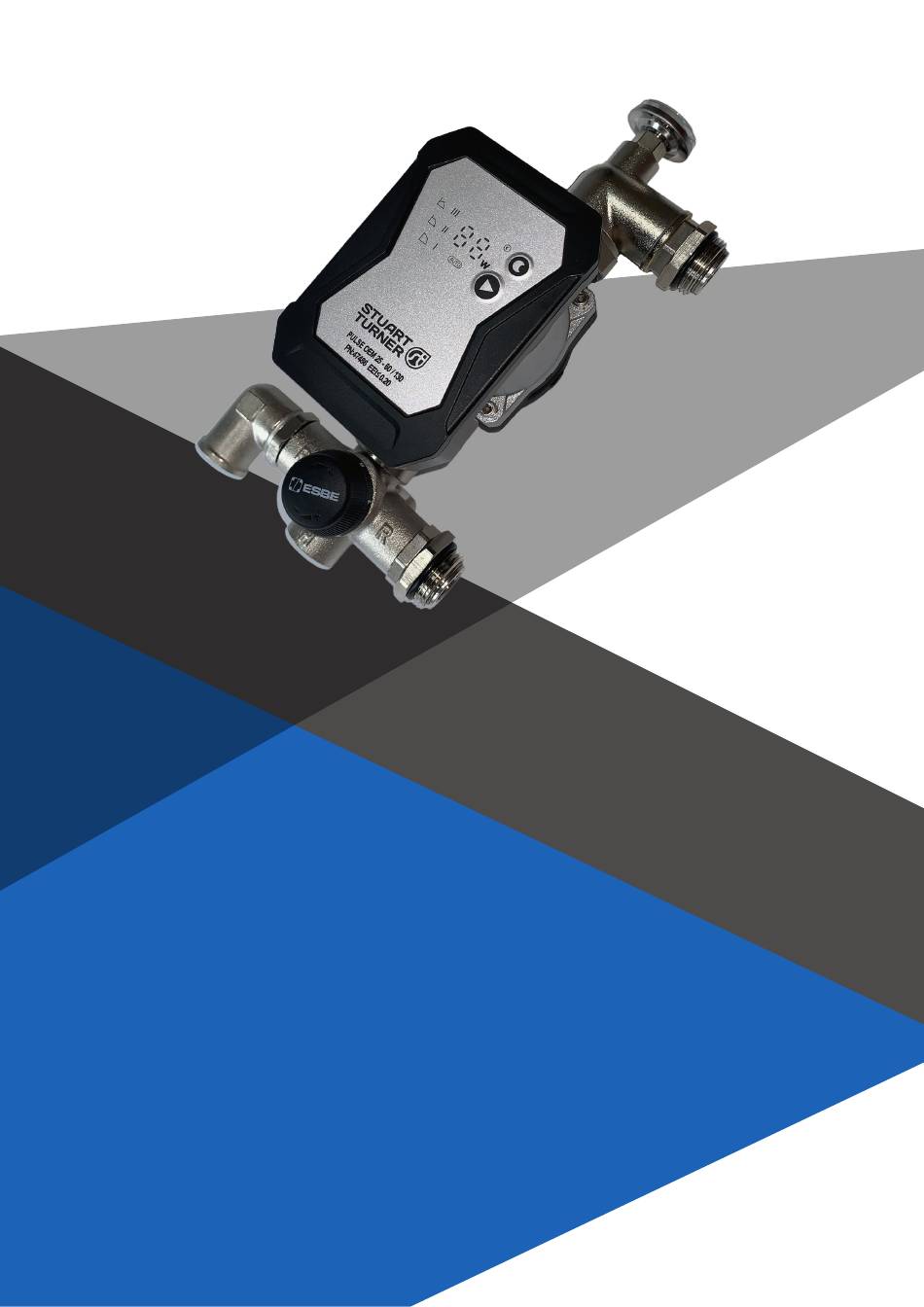

- Page 1 ESBE T4 Pump Control Set Installation and Commissioning Manual For underfloor heating with thermostatic mixing valve.
- Page 2 Boxed and pre-assembled ready for installation, including: Esbe Thermostatic mixing valve, adjustable from 20°C to 55°C (BS2164) Temperature gauge measuring mixed water 'A' rated Stuart Turner 25/6 Pump 1" Male swivel joints for fast connection to 1" Female manifold tappings...
- Page 3 2. Connections & Dimensions Item Description Stuart Turner 25/6 Pump ESBE Thermostatic Mixing Valve Flow / Return Elbow 2mm Rubber Washer 1 1/2” Rapid Connection Nut Elbow Flanged 3/4” Female BSP Flow and Return 3/8”...
- Page 4 4. Pre-Installation Prior to installation, manifold configuration must be determined as left or right handed. 5. Installation 5.1 Carefully remove from the packaging and check that all components are in place and that nothing has been damaged during delivery. 5.2 The pump mixer is supplied for connection to the right-hand side of the manifold but can be altered very simply for connection to the left-hand side.
- Page 5 Ensure that the pump is filled and vented, operate the control system to call for heat then select the desired pump setting. The ESBE T4 control pack comes pre-assembled ready for installation, please ensure the pump connections are tightened before commissioning. These connections are equipped with EPDM seals.
- Page 6 7. Pump Settings (Continued) Technical data Control panel and LED display 1. Display of energy consumption in watts 2. Automatic night reduction display 3. Button for activating the automatic night reduction 4. Operating mode selection button 5. Display for activated AUTO Smartadapt mode 6.
- Page 7 Our other UFH products: Single-loop Pump Pack The single-loop assembly is designed to connect to new and existing heating systems with 15mm compression connections for the flow and return. The temperature switch supplies power to the pump and will remain open until the existing heating system water is above 40°c.
