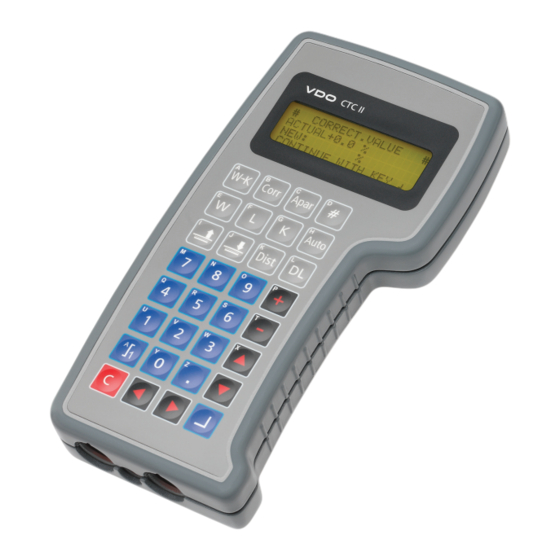

CTC II –
Compact-Test-Computer II
KITAS 2170/ KITAS 2171
Testing Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTC II and is the answer not in the manual?

Questions and answers

Related Manuals for VDO CTC II

Summary of Contents for VDO CTC II

  • Page 1 CTC II – Compact-Test-Computer II KITAS 2170/ KITAS 2171 Testing Instructions...
  • Page 2 Continental Trading GmbH. Any communication of this documentation to a third party requires the prior written permission of Continental Trading GmbH. ® KITAS 2170, KITAS 2171, CTC II, DTCO 1381 and ® MTCO 1324 are trademarks of the Continental Corporation.
  • Page 3 Continuous further development ensures the cutting-edge technology and high quality of our test devices. The range of features offered by the CTC II test device has been expanded to include functions for checking the Kienzle Tachograph Sensors KITAS 2170 and KITAS 2171.

  • Page 4: Table Of Contents

    Sender unit test cable Testing Instructions for CTC II Table of Contents Table of Contents Chapter 1 System requirements ..............5 Chapter 2 Preparations for testing in the vehicle ........6 Chapter 3 Preparations for testing in the workshop ....... 8 3.1 KITAS product versions..................

  • Page 5: Chapter 1 System Requirements

    KITAS sensor test with the CTC II, you require a sender unit test cable (see Fig. 1). This is included in the delivery package of the CTC II set “sender unit test” (Art. No. A2C59512170). Sender unit test cable for CTC II Fig.

  • Page 6: Chapter 2 Preparations For Testing In The Vehicle

    2 Preparations for testing in the vehicle Testing Instructions for CTC II Preparations for testing in the vehicle To carry out a “KITAS sensor test”, the CTC II must be connected to an external power supply. Testing in battery Important mode (powered by the internal chargeable battery) is not possible.◄...
  • Page 7 Also observe Important the relevant safety notes.◄ 2 Connect the CTC II (1) to the yellow plug of the KITAS sensor cable (4) via the sender unit test cable (3). 3 Connect the CTC II to the vehicle's power supply (cigarette lighter).

  • Page 8: Chapter 3 Preparations For Testing In The Workshop

    Sender unit test cable 3 Preparations for testing in the workshop Testing Instructions for CTC II 3.1 KITAS product versions Preparations for testing in the workshop To test a KITAS which is not connected, you will need the CTC II power adapter.◄...

  • Page 9: Connection To The Workshop Components

    1 Connect the KITAS (3 or 4) to the KITAS sensor cable (5). 2 Connect the CTC II (1) to the KITAS sensor cable (5) via the sender unit test cable (6). 3 Connect the CTC II (1) to the power supply via the CTC II power adapter (2). A2C59512953...

  • Page 10: Chapter 4 Test Procedure For The Kitas

    The CTC II is now connected to the KITAS. Condition The CTC II is connected to a power supply.◄ When the CTC II is connected to the power supply, it starts automatically, displaying the basic menu. Testing the KITAS 1 Select “KITAS > Sensor test > Pulse test” and confirm.

  • Page 11: Kitas Status Message

    KITAS status message You can call up KITAS status messages without having to test the KITAS. To do this, connect the CTC II to the power supply Important and select KITAS > Sensor test > KITAS status.◄ The test device establishes the data interchange with the KITAS.
  • Page 12 Sender unit test cable 4 Test procedure for the KITAS Testing Instructions for CTC II 4.2 KITAS status message You can see whether or not the KITAS has been paired with a TCO in the display. KITAS • KITAS = MTCO The KITAS has been paired with an MTCO 1324.

  • Page 13: Chapter 5 Troubleshooting

    Sender unit test cable 5 Troubleshooting Testing Instructions for CTC II Troubleshooting The following error messages may be displayed during KITAS testing: Error message Cause / Action to be taken Communication error ERROR KITAS sensor is sending no echo or no...
  • Page 14 Sender unit test cable 5 Troubleshooting Testing Instructions for CTC II Error message Cause / Action to be taken Pulse error SENSOR TEST If no pulses are listed in the box, an error has Pulse PULSE = occurred during pulse transmission.
  • Page 15 Continental Trading GmbH P.O. Box 16 40 D-78006 Villingen-Schwenningen www.dtco.vdo.com VDO – A trademark of the Continental Corporation A2C59512953 | Edition 02/2009...
