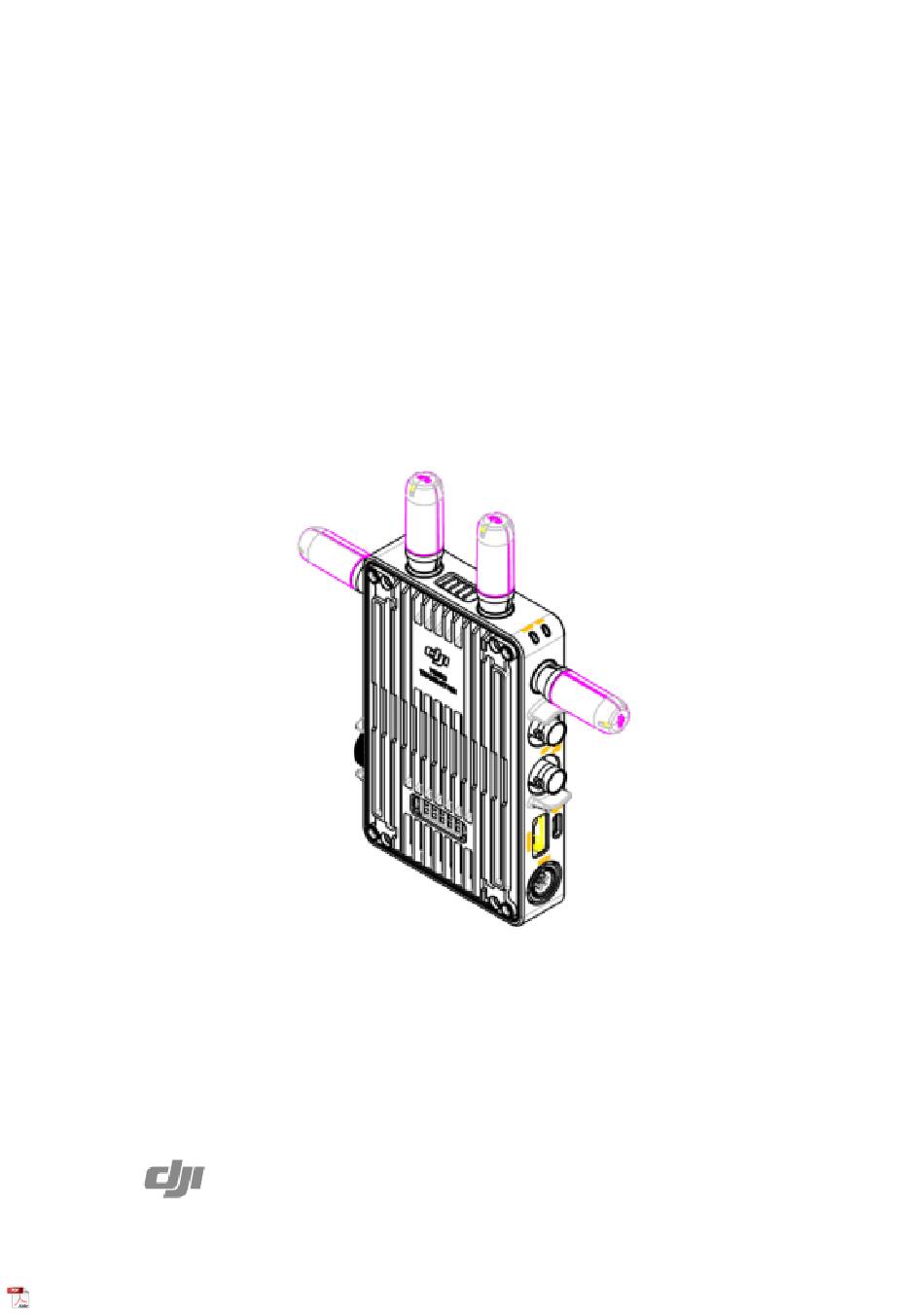

  • Page 1 DJI Video Transmitter User Guide...
  • Page 2 6 km, bit rate of up to 50 Mbps, and minimum end-to-end latency within 100 ms. DJI Video Transmitter works at 2.4 GHz, 5.8 GHz and DFS, and is capable of selecting the best transmission channel automatically. It supports AES 256-bit encryption algorithm, and can output 1080p/60fps full HD images to multiple high-bright remote monitors at the same time.

  • Page 3: Installation And Connection

    6. HDMI Port (Type A) Used to receive the video source input signal. 7. Power/Communication Port (USB-C) Used for activation, firmware update, and power supply and communication with specific equipment. 8. DC IN Power Input Port Supply power to the video transmitter by the provided power cable. 9.
  • Page 4 Installing Adapter When used with DJI RS 2 gimbal or other equipment that is compatible with cold shoe interface, an adapter is required to be installed. 1. Install the adapter to the front of the video transmitter and tighten two M4×12 screws.
  • Page 5 2. Move the lever counterclockwise to lower the positioning block on the adapter. 3. Install the video transmitter to the DJI RS 2 gimbal through the cold shoe of the adapter.
  • Page 6 4. Rotate the lever in the locking direction to finish installation.
  • Page 7 Connection USB-C to Lemo Cable Connect the focus motor port (USB-C) of the DJI RS 2 to the DC IN port of the video transmitter, the DJI RS 2 can supply power to the video transmitter.
  • Page 8 P-Tap to Lemo Cable Connect the 14.4V P-Tap port of Ronin 2 to the DC IN port of the video transmitter, the Ronin 2 can supply power to the video transmitter. Lemo to Lemo Cable Connect the 14.4V accessory power port of Ronin 2 to the DC IN port of the video transmitter, the Ronin 2 can supply power to the video transmitter and communicate with it.

  • Page 9: Firmware Update

    SDI Cable Used to transmit SDI signal. Activation When powered on, connect the video transmitter to a computer and run DJI Assistant 2 (Ronin Series) for activation. Download DJI Assistant 2 (Ronin Series) at https://www.dji.com/xxx/downloads Linking To start linking, press and hold the menu dial on the video transmitter.

  • Page 10: Specifications

    Responsible Party: DJI Technology, Inc. Responsible Party Address: 201 S. Victory Blvd., Burbank, CA 91502 Website: www.dji.com We, DJI Technology, Inc., being the responsible party, declares that the above mentioned model was tested to demonstrate complying with all applicable FCC rules and regulations.
  • Page 11 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 12 This equipment complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.The portable device is designed to meet the requirements for exposure to radio waves established by the CNR-102.
  • Page 13 Declaración de cumplimiento UE: SZ DJI OSMO TECHNOLOGY CO., LTD. por la presente declara que este dispositivo (DJI Video Transmitter) cumple los requisitos básicos y el resto de provisiones relevantes de la Directiva 2014/53/EU Hay disponible online una copia de la Declaración de conformidad UE en www.dji.com/euro-...
  • Page 14 Indirizzo di contatto UE: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Déclaration de conformité UE : Par la présente, SZ DJI TECHNOLOGY CO., LTD déclare que cet appareil (DJI Video Transmitter) est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU...
  • Page 15 že tohle za ízení(DJI Video Transmitter) vyhovuje základním požadavk m a dalším p íslušným ustanovením směrnice 2014/53/EU. Kopie prohlášení o shodě pro EU je k dispozici on-line na webu www.dji.com/euro- compliance Kontaktní adresa v EU: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Německo SZ DJI OSMO TECHNOLOGY CO., LTD.
  • Page 16 RÁITEAS Comhlíonta an AE: Dearbhaíonn leis seo go bhfuil an gléas seo (DJI Video Transmitter) de réir na gceanglas riachtanach agus na bhforálacha ábhartha eile sa Treoir 2014/53/AE. Tá coip de Dhearbhú Comhréireachta an AE ar fáil ar líne ag www.dji.com/euro-compliance Seoladh teagmhála san AE: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany...
  • Page 17 SZ DJI OSMO TECHNOLOGY CO., LTD. EU Izjava o sukladnosti: Tvrtka izjavljuje da je ovaj ure aj (DJI Video Transmitter) izra en u skladu s osnovnim zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU. Kopija EU Izjave o sukladnosti dostupna je na mrežnoj stranici www.dji.com/euro-compliance Adresa EU kontakta: DJI GmbH, Industriestrasse 12 97618, Niederlauer, Njema ka týmto vyhlasuje, že toto...
  • Page 18 AB Uygunluk Beyanının bir kopyasına www.dji.com/euro-compliance adresinden çevrim içi olarak ulaşılabilir AB için iletişim adresi: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Almanya Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately.
  • Page 19 raccolta pubblici è gratis. È responsabilità del proprietario dei vecchi dispositivi portarli presso tali punti di raccolta o punti di raccolta analoghi. Grazie a questo piccolo impegno personale contribuirete al riciclo di materie prime preziose e al corretto trattamento di sostanze tossiche. Milieuvriendelijk afvoeren Oude elektrische apparaten mogen niet worden weggegooid samen met het restafval, maar moeten afzonderlijk worden afgevoerd.
  • Page 20 γίνεται χωρίς χρέωση. Ο κάτοχος παλιών συσκευών είναι υπεύθυνος για τη μεταφορά των συσκευών σε αυτά ή παρόμοια σημεία συλλογής. Μέσω της ατομικής σας προσπάθειας, συμβάλλετε στην ανακύκλωση πολύτιμων πρώτων υλών και την επεξεργασία των τοξικών ουσιών. Keskkonnasäästlik kasutuselt kõrvaldamine Vanu elektriseadmeid ei tohi ära visata koos olmejäätmetega, vaid tuleb koguda ja kasutuselt kõrvaldada eraldi.
  • Page 21 jintrema b’mod separat. Ir-rimi fil-post tal-ġbir komunali minn persuni privati huwa b’xejn. Is-sit ta’ apparat qadim huwa responsabbli biex iġib l -apparat f’dawn il-postijiet tal-ġbir jew f’postijiet tal-ġbir simili. B’dan l -isforz personali g ir, inti tikkontribwixxi g ar- ri ikla ta’...
  • Page 22 a magánszemélyek ingyenesen leadhatják ezeket. A régi készülékek tulajdonosai felelnek azért, hogy e készülékeket ezekre a gy jt pontokra, vagy más gy jt pontokra elhozzák. Ezzel a kis személyes er feszítéssel Ön is hozzájárul az értékes nyersanyagok újrahasznosításához és a mérgez anyagok kezeléséhez.
