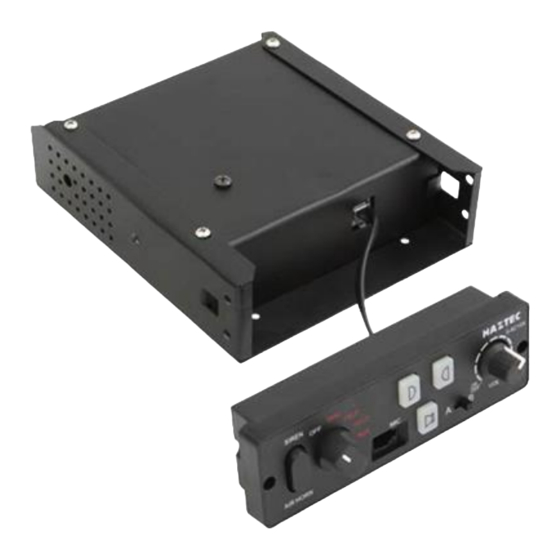

Haztec EuroMax 8-8114 Series Installation Manual

8-8114-X EuroMax
Siren PA Amplifier
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential
to read and understand this instruction booklet.
▪ Failure to observe the following may result in damage to the system and void any
warranty
▪ Amplifiers can become very hot in use. Please ensure they are mounted such that they
will not cause any damage to surroundings or harm to personnel
▪ Isolate power prior to installation
▪ Check for correct voltage and polarity
▪ Ensure loudspeaker has correct impedance and power capacity
Basic Operating Specifications:
Maximum current draw:
Standby current:
Switched outputs:
Operating temperature range:
Output impedance:
Amplifier distortion:
Frequency range:
Dimensions (mm):
M352.1.0
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
8-8114 Siren with 8-82104 Controller
12A @ 12VDC / 6A @ 24VDC
<1mA (+2mA when interlock input activated) 12VDC
<1.5mA (+5mA when interlock input activated) 24VDC
2 x 10A relay contacts
O
-20 C to 50
11 Ohm
5%
300Hz – 3Khz
Amplifier: 164 (L) x 143 (W) x 44.5 (H)
Control Panel: 141 (W) x 44.5 (H) x 27 (D) (+13mm for controls)
Combined: 177 (L) x 156 (W) x 44.5 (H)
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
▪ 100W Siren Amplifier
▪ Dash or remote mount
▪ 12 or 24VDC versions
▪ HRT, Interlock & RRB
▪ 2 x 10A relay outputs
O
C
- 1 - November 2021
