- Page 1 EM530/EM540 Energy analyzer for three-phase and two-phase systems USER MANUAL 23/11/2022...
-
Page 2: Table Of Contents
INFO menu RESET menu Input, output and communication Digital input Digital output (version O1) Modbus RTU port (version S1) M-Bus port (version M1) Essential information Alarms Introduction Variables Alarm types EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 3: This Manual
This manual is an integral part of the product and accompanies it for its entire working life. It should be consulted for all situations tied to configuration, use and maintenance. For this reason, it should always be accessible to operators. NOTICE: no one is authorized to open the analyzer. This operation is reserved exclusively for CARLO GAVAZZI technical service personnel. -
Page 4: Em530/Em540

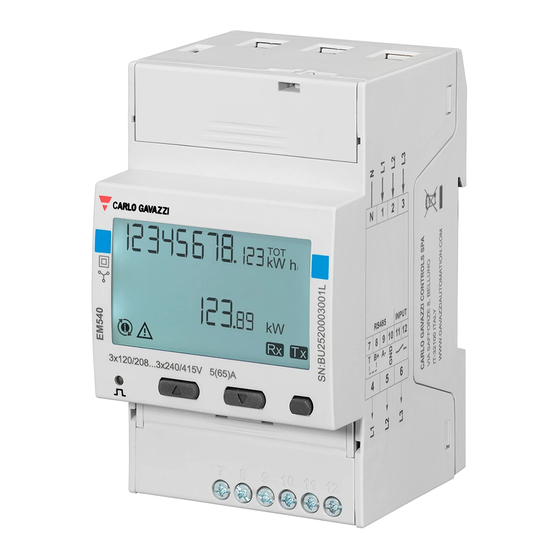

Introduction EM530 is an energy analyzer connected through 5 A current transformers, for two- and three-phase systems up to 415 V L-L. EM540 is an energy analyzer for direct connection up to 65 A, for two- and three-phase systems up to 415 V L-L. - Page 5 Area Description Voltage/current inputs Display Browsing and configuration buttons Digital input, digital output and communication connections MID seal housings Figure 3 EM530/EM540 - Back Area Description DIN rail mounting bracket EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA...
-
Page 6: Available Versions
For every measuring interval time, the energies of the single phases are summed; according to the sign of the result, the positive (kWh+) or negative totalizer (kWh-) is increased. Example: P L1= +2 kW, P L2= +2 kW, P L3= -3 kW Integration time = 1 hour kWh+=(+2+2-3)x1h=(+1)x1h=1 kWh kWh+=0 kWh EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 7: Ucs (Universal Configuration Software)
UCS (Universal Configuration Software) UCS is available in desktop and mobile versions. It may connect to EM530 or EM540 via RS485 (RTU protocol, desktop version only). UCS allows to: set up the unit (online or offline); display the system state for diagnostic and setup verification purposes... -
Page 8: Use
Measurement page display Part Description Measured values/data Unit of measurement Note: for the “power factor” the unit indicates whether the value is inductive (L) or capacitive (C) Information and diagnostics EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 9: Information And Warnings
3Pn and for each phase: the power is positive (imported), PF > 0.7 L or PF > 0.96 C. (Only in EM530) Serial communication state (reception / transmission) The association of the phase terminal or the direction of the currents have been modified via UCS software to correct virtually a wiring fault. -
Page 10: Working With Em530/Em540
Button Scroll through the menu Return to the main menu Working with the RESET menu Operation Button Scroll through the menu Enter the sub-menu to edit and confirm the operation EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 11: Commissioning
QUICK SETUP procedure skip the procedure and no longer display the QUICK SETUP menu LAtEr skip the procedure and display the QUICK SETUP menu at the next switch-on S1 models EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... - Page 12 M1 models O1 models EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA...
-
Page 13: Menu Description
THD of phase 1-phase2 voltage THD of phase2-phase3 voltage THD of phase3-phase1 voltage THD of phase 1 current THD of phase 2 current THD of phase 3 current nEutrAL Neutral current CurrEnt EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 14: Settings Menu
1 to 247 S1 models only PArity Parity NO/EVEN bAudrAtE Baudrate 9.6 kbps 9.6 kbps 19.2 kbps 38.4 kbps 57.6 kbps 115.2 kbps StoP bit Stop bit 1 or 2 EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 15: Info Menu
SETTINGS and RESET menu 9999 Exit INFO menu This menu allows to display the set parameters. Page Page title Description Notes YEAr Production year SEriAL n Serial number FW REV FW revision EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... - Page 16 Screensaver type SC SAVEr display Home page home display Page filter enabling PAGES display Wiring check enabling WirinG tAriFF Tariff management CHECKSuM Firmware checksum WiRinG Wiring check code to correct errors EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA...
-
Page 17: Reset Menu
In MID models, it resets the CT ratio settings re-enabling first programming MID ReS menu. This option is available only if the value of the total active energy is below 1 kWh. Exit EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 18: Input, Output And Communication
Pulse duration Modbus RTU port (version S1) Modbus RTU communication port is used to transmit data to a Modbus master (Carlo Gavazzi UWP3.0 or any SCADA, PLC, BMS, etc). For further information about Modbus RTU communication refer to the communication protocol. -
Page 19: Essential Information
The alarm activates when the monitored variable exceeds the Set 1 value for a time equal to the activation delay (Delay) and deactivates when the values drops below Set 2. Set 1 Set 2 Delay EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 20: Dmd Values
Backlight EM530/EM540 is equipped with a backlight system. You can set whether the backlight shall always be ON or whether it should automatically switch off after a given interval has elapsed since a button was pressed (1 to 60 minutes). -
Page 21: Screensaver
(DISPLAY → PAGES→ ALL). By default, the pages included in the filter are: 1 (kWh+ TOT, kW), 2 (kWh- TOT, kW), 5 (VLN, VLL, Hz), 7 (kvarh+ TOT, kvar), 8 (kvarh- TOT, kvar), 25 (L1 A, L2 A, L3 A), see "Measurement pages" on page 13. EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 22: Restoring The Factory Settings
From the RESET menu you can restore all the factory settings. At start-up the QUICK SET-UP menu shall be available again. Notes: meters are not reset. In MID models you cannot reset the CT current transformer ratio (CT RATIO). EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 23: Restoring The Mid Menu Using The Reset Menu
Restoring the MID menu using the RESET menu To change the set CT ratio and restore the MID settings menu shown at first power on EM530 MID models, enter the reset menu and confirm “MID res”. Note: in MID models the reset can only be performed if the energy meter has not exceeded 1 kWh. In case of wrong settings, you can then correct any CT current transformer setting errors (CT ratio), reactivating the MID programming menu. -
Page 24: Wiring Check Function
Tariff management Modbus RTU To manage tariffs using the Modbus RTU command enable tariff management via Modbus command from UCS software Digital input status Tariff No tariff Tariff 1 Tariff 2 EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... -
Page 25: Maintenance And Disposal
Maintenance and disposal Troubleshooting Note: in case of other malfunctions or of any failure, please contact the CARLO GAVAZZI branch or the distributor for your country Problem Cause Possible solution The ‘EEEE’ indication is displayed The analyser is not used within the... -
Page 26: Download
Dispose of the unit by separately collecting its materials and bringing them to the facilities specified by government authorities or by local public bodies. Proper disposal and recycling will help preventing potentially harmful consequences for the environment and for people. EM530/EM540 - User manual |23/11/2022 | CARLO GAVAZZI Controls SpA... - Page 28 CARLO GAVAZZI Controls SpA via Safforze, 8 32100 Belluno (BL) Italy www.gavazziautomation.com info@gavazzi-automation.com info: +39 0437 355811 fax: +39 0437 355880 EM530/EM540 - User manual 24/01/2022 | Copyright © 2022...
