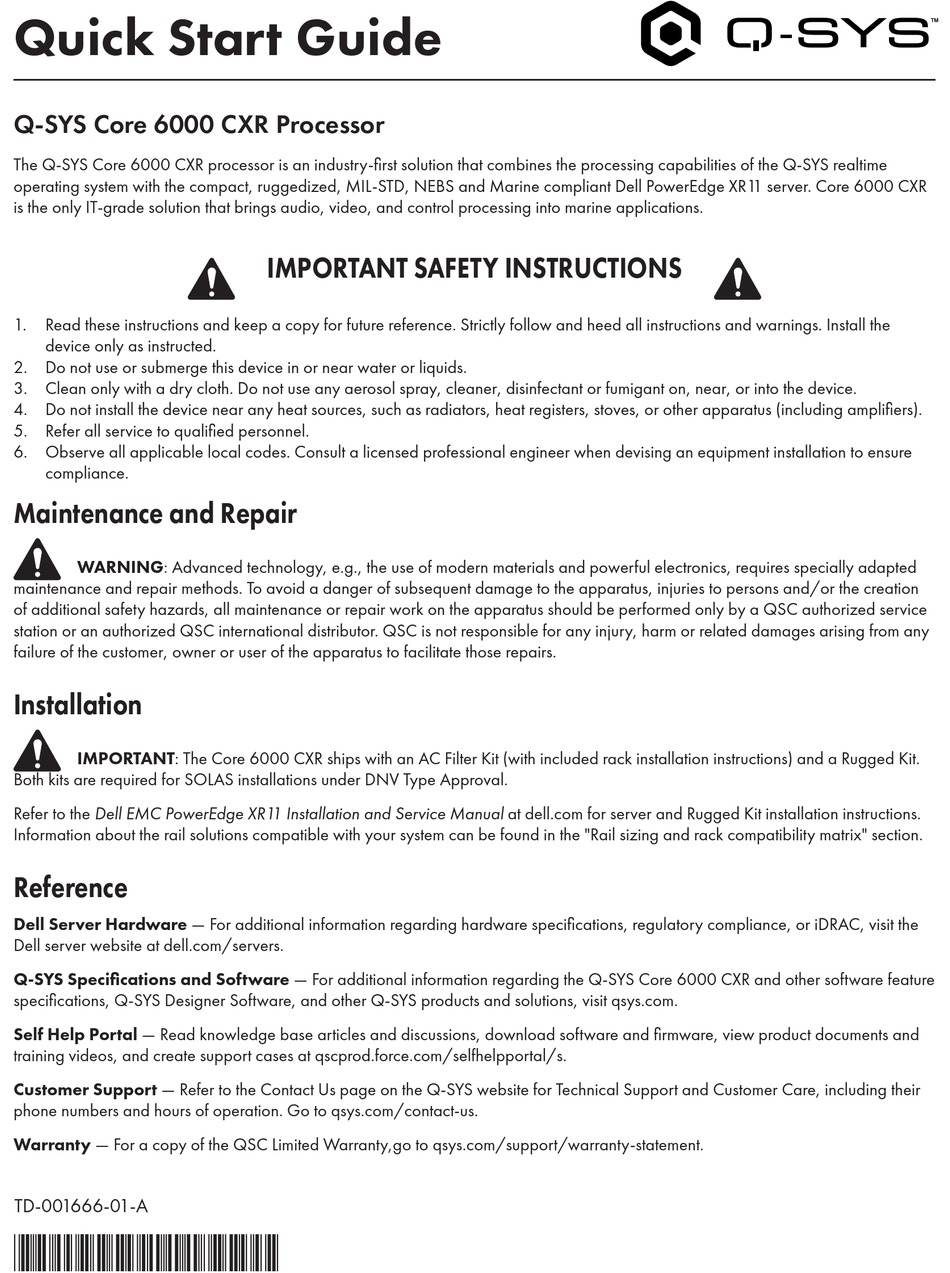

Quick Start Guide

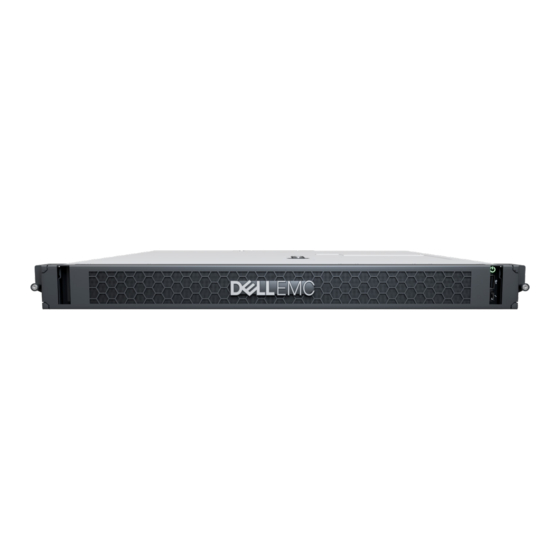

Q-SYS Core 6000 CXR Processor
The Q-SYS Core 6000 CXR processor is an industry-first solution that combines the processing capabilities of the Q-SYS realtime
operating system with the compact, ruggedized, MIL-STD, NEBS and Marine compliant Dell PowerEdge XR1 1 server. Core 6000 CXR
is the only IT-grade solution that brings audio, video, and control processing into marine applications.
1. Read these instructions and keep a copy for future reference. Strictly follow and heed all instructions and warnings. Install the
device only as instructed.
2. Do not use or submerge this device in or near water or liquids.
3. Clean only with a dry cloth. Do not use any aerosol spray, cleaner, disinfectant or fumigant on, near, or into the device.
4. Do not install the device near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers).
5. Refer all service to qualified personnel.
6. Observe all applicable local codes. Consult a licensed professional engineer when devising an equipment installation to ensure
compliance.
Maintenance and Repair
WARNING: Advanced technology, e.g., the use of modern materials and powerful electronics, requires specially adapted
maintenance and repair methods. To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the creation
of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a QSC authorized service
station or an authorized QSC international distributor. QSC is not responsible for any injury, harm or related damages arising from any
failure of the customer, owner or user of the apparatus to facilitate those repairs.
Installation
IMPORTANT: The Core 6000 CXR ships with an AC Filter Kit (with included rack installation instructions) and a Rugged Kit.
Both kits are required for SOLAS installations under DNV Type Approval.
Refer to the Dell EMC PowerEdge XR1 1 Installation and Service Manual at dell.com for server and Rugged Kit installation instructions.
Information about the rail solutions compatible with your system can be found in the "Rail sizing and rack compatibility matrix" section.
Reference
Dell Server Hardware — For additional information regarding hardware specifications, regulatory compliance, or iDRAC, visit the
Dell server website at dell.com/servers.
Q-SYS Specifications and Software — For additional information regarding the Q-SYS Core 6000 CXR and other software feature
specifications, Q-SYS Designer Software, and other Q-SYS products and solutions, visit qsys.com.
Self Help Portal — Read knowledge base articles and discussions, download software and firmware, view product documents and
training videos, and create support cases at qscprod.force.com/selfhelpportal/s.
Customer Support — Refer to the Contact Us page on the Q-SYS website for Technical Support and Customer Care, including their
phone numbers and hours of operation. Go to qsys.com/contact-us.
Warranty — For a copy of the QSC Limited Warranty,go to qsys.com/support/warranty-statement.
TD-001666-01-A
*TD-001666-01*
