- Page 1 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD R10 Operation Guide Shanghai AllyNav Technology Co.,Ltd Shanghai China GNSS Receiver Version 1.0...
-
Page 2: Table Of Contents
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD Content 1.R10 Specifications ........................3 1.1 Technical features ......................3 1.2 Technical parametrest ....................4 1.3 Exterior dimensions ..................... 6 1.4 Pictures of actual use scenarios ................7 2. R10 Instructions ........................8 3. Software Description ....................... 9 3.1 Software profile ......................9... -
Page 3: R10 Specifications
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD 1. R10 Specifications R10 portable high-precision locator is a lightweight, simple and practical high precision GNSS RTK receiver, which is a low-cost solution for both portable and high-precision positioning. The R10 supports five stars and sixteen frequency positioning data, adopts... -
Page 4: Technical Parametrest
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD supporting more than 16 hours of continuous use. The total weight of the equipment is 0.55kg, small and light, easy to carry. Flexible in use, can be handheld or screwed directly onto the alignment bar for ... - Page 5 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD Data output Differential data: RTCM 3.3/3.2/3.1/3.0 Positioning data: NMEA-0183 Electrical parameters Endurance: ≥16h Input voltage: DC5V ≤1A Battery capacity: 4800mAh Power consumption:1w Physical Properties Operating temperature: -45℃～+75℃ Storage temperature: -55℃～+85℃ Physical size: Φ165mm*70mm Protection level: IP54...
-
Page 6: Exterior Dimensions
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD 1.3 Exterior dimensions... -
Page 7: Pictures Of Actual Use Scenarios
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD 1.4 Pictures of actual use scenarios... -

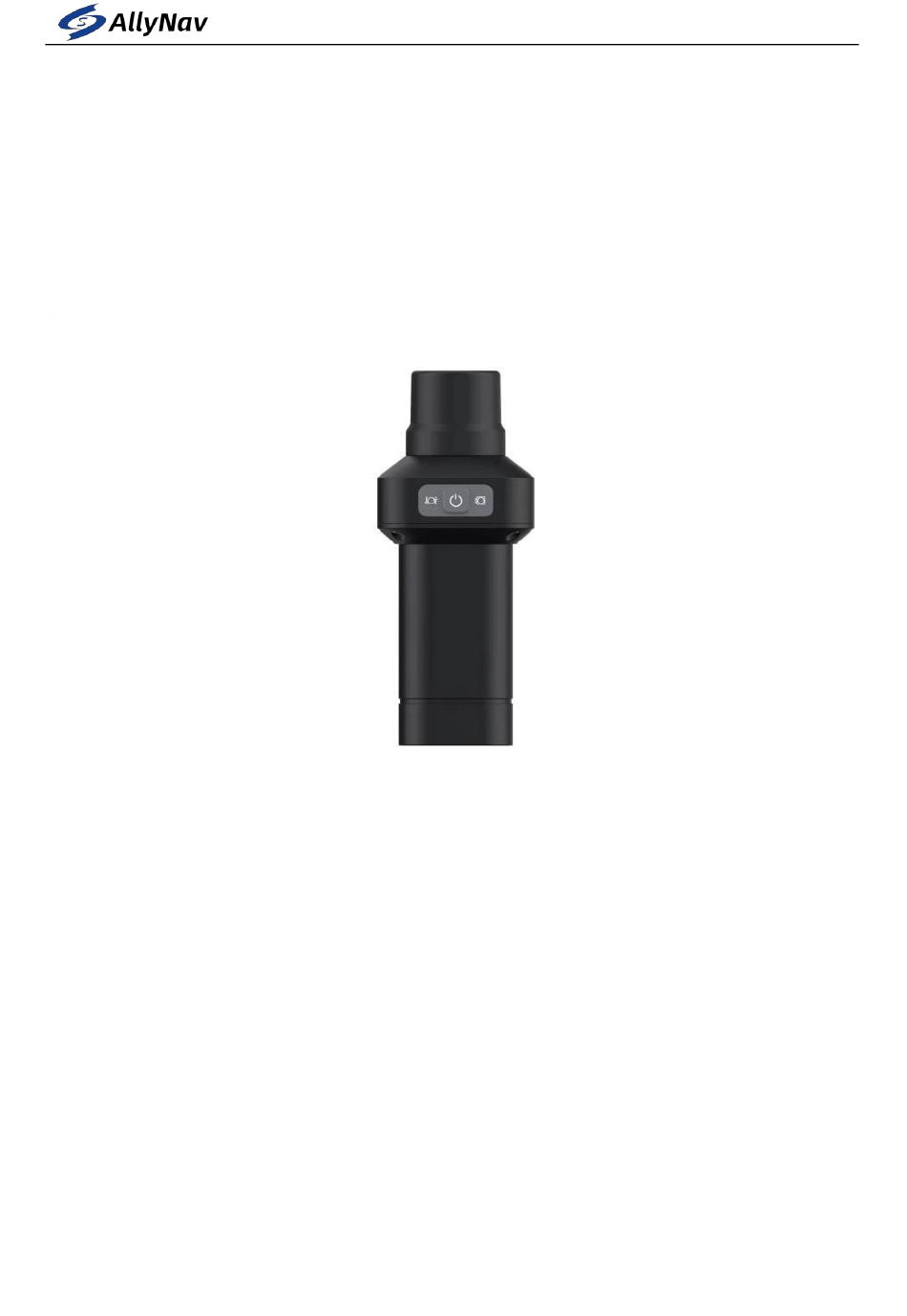

Page 8: R10 Instructions
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD 2. R10 Instructions Connection indicator light : The red light flashes when the device is not connected to the mobile phone ; the red light is always on when the device is connected successfully Power button: Press and hold for two seconds to turn on or off Power indicator light : The red light is always on in normal working state ;... -
Page 9: Software Description
3.1 Software profile AllyPad software is an engineering survey application software developed by Shanghai AllyNav Technology Co., Ltd. based on GNSS high-precision location application. The developers integrate based on years of surveying and mapping development and market experience accumulation, combined with the use habits of a large number of industry users and Android operation style habits.The software has a... -
Page 10: Device Connect
Click [Device] -> [Communication], as shown in Figure 3.1-1.Select the instrument manufacturer, instrument type and Communication mode, then select the R10, and click "Connect" to complete the equipment Communication.After the device is successfully connected, it will return directly to the main interface of the software, as shown in Figure 3-2.Enter the communication setting, as shown in Fig. - Page 11 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD 3. Communication mode includes Bluetooth Communication, TCP client Communication, etc. The way supported by each instrument manufacturer may be different. The basic Bluetooth mode is basically supported by all manufacturers. 4. Click on the equipment parameters, enter the Bluetooth search and selection, as shown in Figure 3.1-4, and click on the equipment to choose the equipment needed...
-
Page 12: Point Survey
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD Figure 3.2-4 Figure 3.2-5 3.3 Point Survey Click [Survey] -> [Point Survey], as shown in Figure 3.3-1.The positioning of GNSS device output is measured and collected into the coordinate point library under certain precision limits.In the point survey interface, the title bar displays the basic... - Page 13 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD left side of the drawing area is the display of the function collection, these function menu can also display the required functions here according to the needs of the user to quickly operate some functions, the bottom right corner of the area shows the...
- Page 14 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD some functions.These functions include: tilt survey switch, network map selection switch, drawing zoom in and reduce the whole map positioning center, screen point, CAD text annotation, length and area calculation, drawing background color setting, CAD layer setting, Coordinates Converter tools, Calculator tools and other functions, click the menu icon on the left to trigger the corresponding functions.
-
Page 15: Point Stakeout
SHANGHAI ALLYNAV TECHNOLOGY CO., LTD Figure 3.3-7 Figure 3.3-8 3.4 Point Stakeout Click [Survey] -> [Point Stakeout] to enter the interface of the setting out point library, as shown in Figure 3.4-1. Point Stakeout refers to the location of the point at the field site if the point coordinates are known.In the sample point will show the... - Page 16 SHANGHAI ALLYNAV TECHNOLOGY CO., LTD setting, as shown in Fig. 3.4-3.The target can be set according to the southeast, northwest or left and right prompts, the reference direction of the front and back can be the front direction of the host or press the known reference point direction, and can also set the prompt range, setting out limit difference, etc.
- Page 17 Shanghai Allynav Technology Co.,Ltd. Figure 3.4-1 Figure 3.4-2 Figure 3.4-3 In the sample point to be released, click the data item, click the detailed information of the entry point, including the information of each setting point and the Figureical distribution map of the demout target and collection points, as shown in Figure 3.4-4, 3.4-5.
- Page 18 Shanghai Allynav Technology Co.,Ltd. FCC STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
