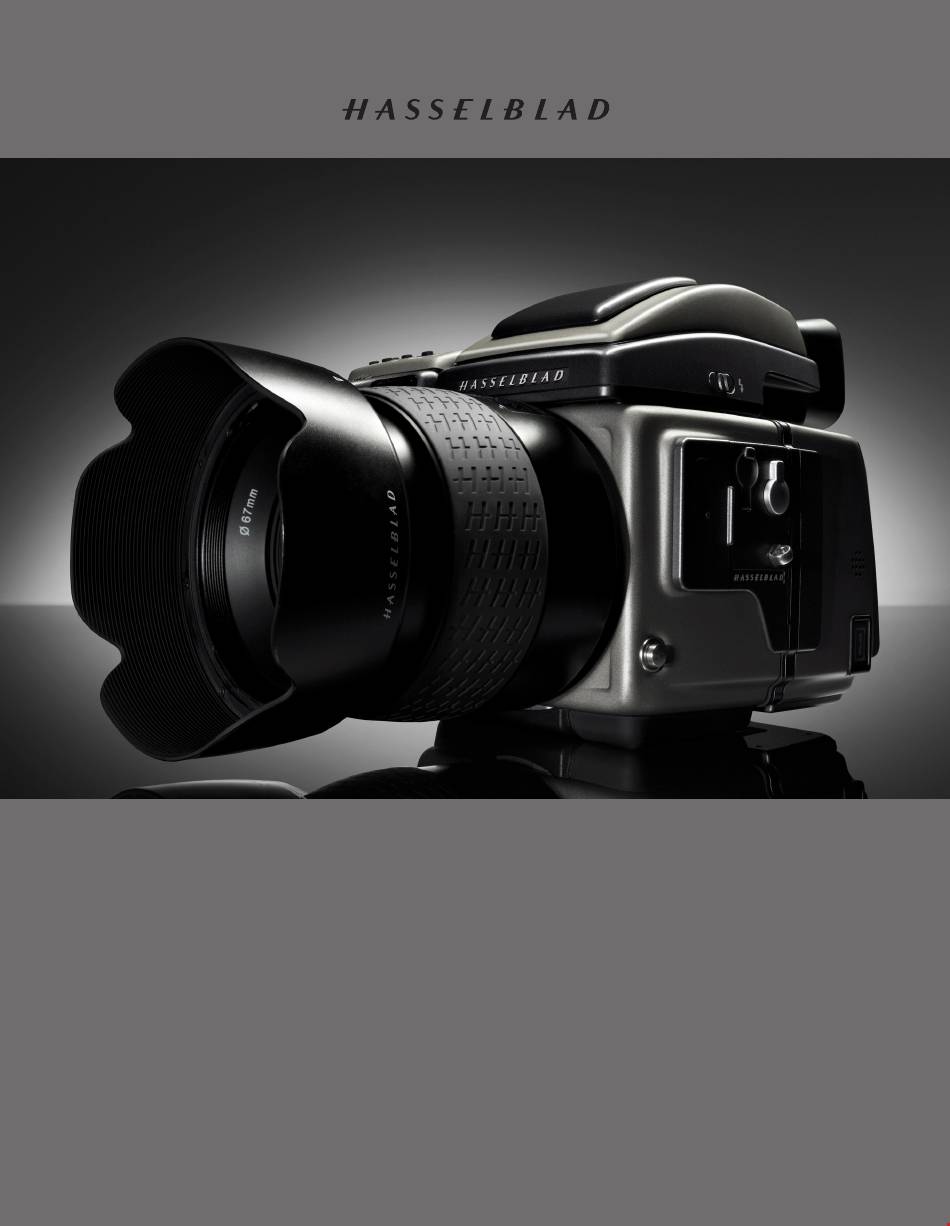

User Manual Supplement
H3D-ll
V6
2008-01-15 / V6
H3D-ll User Manual Supplement V6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H3DII-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hasselblad H3DII-22

  • Page 1 User Manual Supplement H3D-ll 2008-01-15 / V6 H3D-ll User Manual Supplement V6...
  • Page 2: Table Of Contents

    H3D. However, you should still occasionally check the Hasselblad website for updates as this is the most rapid and effective way there is of ensuring that your H3D-ll provides the optimum in performance.
  • Page 3: New Sensor Unit User Interface

    New sensor unit user interface This latest change provides a completely different user interface for the sensor unit. The display screen is now much larger than its predecessor. Although there is also a change in the user buttons, the functions remain the same. It therefore follows that although the step-by-step instructions in the present user manuals are correct for the various procedures, they show another layout of buttons.
  • Page 4: Faster Sensor-Unit Menu Navigation

    Faster sensor-unit menu navigation You can now navigate the menu on the sensor unit by turning the control wheels on the camera grip. The rear control wheel navigates up and down the menu list and the front control wheel navigates sideways in the direction of the menu arrows. The rear control wheel also functions in the same as way as the plus and minus button functions for set- tings choice.
  • Page 5: Battery Warning On Sensor Unit

    Battery warning on sensor unit When the remaining power in the battery drops below a certain point, a warning icon appears on the sensor unit display screen as well as on the grip LCD. In addition, an audible signal can be heard. The warning on the display screen appears as a flashing yellow icon in the top right of the screen signifying that the battery should be charged (or changed) as soon as possible.
  • Page 6: Improved Audio Feedback

    5 images left: Ready: Improved audio feedback 1 image left: There are now 14 different sounds to help provide immediate infor- mation. Button press has a normal mechanical ‘click’ sound while Low battery: Media full: the remaining are more musical They are as follows: Overexposure: IAA yellow: Overexposure:...
  • Page 7: Drive Setting Moved

    Drive setting moved Drive settings are now made by accessing the new position on the menu, replacing the original #5 Digital screen. The initial choice now is 1. Self timer 2. Bracketing 3. Interval 4. Settings 5. Drive ISO / WB Change the Drive settings as follows: a) Press the MENU button on the grip.
  • Page 8: Revised Menu Structure

    Custom Options Revised menu structure H3D-ll User Manual Supplement V6...
  • Page 9: Custom Options Added To Sensor Unit Menu

    Custom Options added to sensor unit menu A new Custom Options section has been added to the sensor unit menu under the Settings heading. Previously, navigating from the Settings heading brought you to the settings list of User Interface, Camera, About and Default. See illustration below: New menu item: Custom Options The new settings in this ‘Custom Options’...
  • Page 10: Copying Files To An Imagebank-Ii

    Revised menu structure Copy Images Navigating the STORAGE settings Copying files to an ImageBank-II Files can now be copied to an ImageBank-II to free up space on a CF card. All batches and files remain on the card until deleted. ...
  • Page 11: Warranty Conditions

    1st July 2006 onwards. “Hasselblad partners will provide the minimum of a twelve month warranty to end-users (subject to their normal statutory rights) on new Hasselblad equipment sold, valid from the date that the equipment is purchased by the first end-user.
