REPEATIT Trinity-300 TDD Plus Quick Start Manual

The full manual can be retrieved from http://www.repeatit.se/support/trinity
Warning: This product transmits information using microwave radio signals. Installation of fixed
outdoor radio links should only be performed by a qualified and trained technician familiar with local
radio, electric and safety regulations.
Before proceeding with the installation verify that the equipment works on the ground. Power up
both units and put them between your computer and network access, you should have full
communication within a few minutes of powering up the units. (If the units have no internal antenna
make sure you place the antenna connectors directly opposite each other.)
The units are pre-configured and paired from factory with the following parameters.

Installing the link

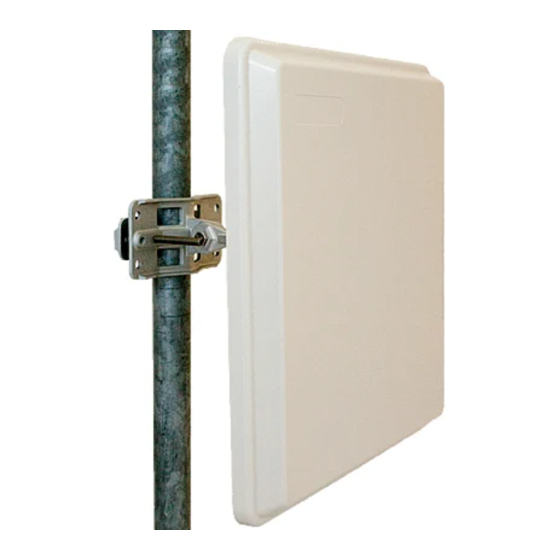

Mount the first unit, point it towards the site of the second unit. Power it up and make sure the
Power LED is lit and the status LED blinks slowly.
Mount the second unit. Power it up and adjust it for best signal using the status LED.
Adjust the first unit for best signal using the Status LED.
Make sure all cables are secured and connect the link to the network.
Configure the distance parameters at the master unit to reflect the correct distance between the
units.
Note Make sure that the polarization on both units are in the same direction. Unaligned
polarization will significantly reduce the signal strength.
Trinity-300 TDD Plus
Trinity-323 TDD
Trinity-323 TDD Plus
Trinity-323 TDD Plus Offshore
Quick Start Guide
Master
IP address 10.0.0.1
Username admin
Password public
Client
10.0.0.2
admin
public
